34 41... Overview of parking brake

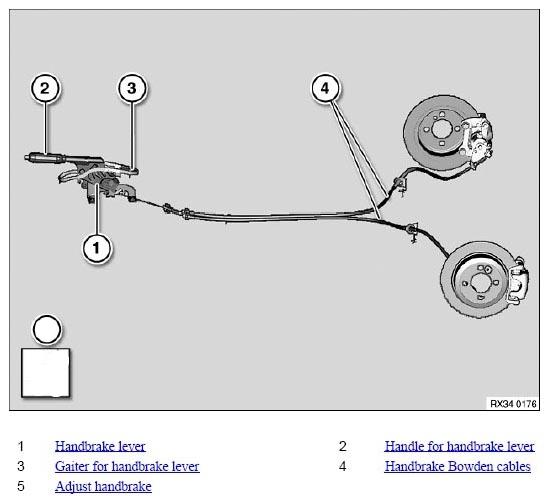

Fig 1: Identifying Parking Brake Components

G05516419

Courtesy of BMW OF NORTH AMERICA, INC.
