41 00... Information On Metal Filler: Processing

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2010 BMW 535xi, 2010 BMW 535i, 2009 BMW 535xi, 2009 BMW 535i, and 2008 BMW 535xi. However, it is still accessible from the selected car via links, so may be relevant.

The working temperature of the metal filler must be at least 18°C.

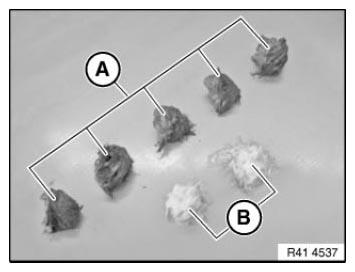

Fig 1: Identifying Metal Filler And Hardener
G06854677Courtesy of BMW OF NORTH AMERICA, INC.

A = Metal filler

B = Hardener

NOTE: The mixture ratio refers to the volume.

Mix metal filler in mixture ratio of 5:2. Mix components thoroughly and free of pores.

IMPORTANT: Do not stir components. Danger of air pockets in metal filler!

Working life of the metal filler is approx. 45 minutes.
