32 00 150 KDS chassis/wheel alignment check with load up to design position

WARNING: This page is about a different car, the 2010 BMW 535i, 2009 BMW 535i, and 2008 BMW 535i. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Carry out wheel alignment with DIN load only:

if the technical prerequisites for an alignment check with ride-height input are not fulfilled
if the vehicle in question is a damaged vehicle

NOTE:

Read and comply with GENERAL INFORMATION AND DEFINITIONS .
Read and comply with GENERAL CHASSIS DEFINITION .
Update KDS data states
Check compliance with TEST CONDITIONS , repair vehicle if necessary.

If necessary, prepare vehicle hoist.
Drive vehicle onto vehicle hoist.
NOTE: The front and rear wheels must be positioned centrally on the rotary and sliding plates.

NOTE: Rotary plates may deviate from the depiction depending on the manufacturer!

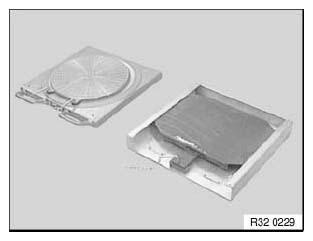

Fig 1: Identifying Rotary And Sliding Plates

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE:

Vehicles with active steering:

Start up active steering prior to wheel alignment!

Attach pickup/ride-height marks to vehicle (observe regulation of the different device manufacturers).

IMPORTANT:

Use only quick connectors with poly control pins (1).

Due to excessive measuring inaccuracy, other quick-clamping units are not permitted!

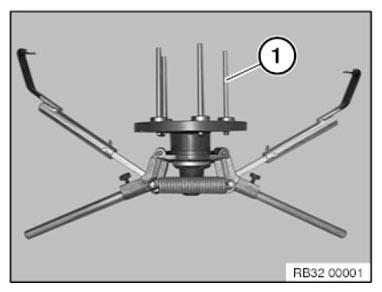

Illustration of KDS II pickup

Fig 2: Identifying Poly Control Arm Bushings

Courtesy of BMW OF NORTH AMERICA, INC.

Enter customer and vehicle data
Identify CHASSIS VERSION and select vehicle
Enter tire inflation pressure and tread depth
Move VEHICLE INTO DESIGN POSITION
Install brake tensioner.

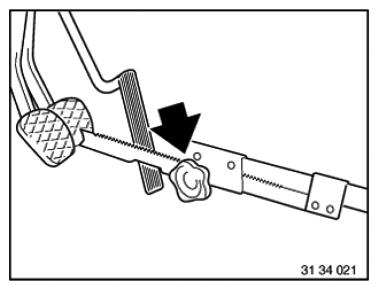

Fig 3: Locating Brake Tensioner

Courtesy of BMW OF NORTH AMERICA, INC.

Remove locking pins from both rotary and sliding plates.
Perform input measurement in accordance with equipment manufacturer's instructions.
If necessary, adjust FRONT AXLE and REAR AXLE
Perform output measurement in accordance with equipment manufacturer's instructions.
Save and print out test record.
Insert locking pins into both rotary and sliding plates
Remove wheel alignment system
If necessary, carry out ALIGNMENT OF ACC SENSOR

IMPORTANT:

Only on vehicles with Active Cruise Control:

Because the driving axis is the reference for ACC alignment, it is necessary after an alignment of the rear axle, which alters the driving axis, to check the alignment of the ACC sensor as well!

It is not necessary to check the ACC sensor after only one adjustment of the front axle!

Only in event of customer complaint (e.g. poor driving performance):

IMPORTANT: Do not remove screws/bolts (front axle support to engine support or body)!

Slacken all screws/bolts (front axle support to engine support or body) and then retighten to specified torque.

Refer to LOWERING FRONT AXLE SUPPORT .
