00 2 040 Basic take-up fixture

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2010 BMW 535xi, 2010 BMW 535i, 2009 BMW 535xi, 2009 BMW 535i, and 2008 BMW 535xi. However, it is still accessible from the selected car via links, so may be relevant.

In conjunction with: 00 2 030, 33 3 270, 33 3 290, 33 3 300, 33 4 220, 33 4 230

Note: For removing and installing rear axle carriers, without pillar guide and lift hoist.

Series: E31, E32, E32/3, E34, E34tou, E36, E36/2, E36/3, E36/5, E36/7, E36/C, E36tou, E38, E38/3, E39, E39PL, E39tou, E46, E46/16, E46/2, E46/3, E46/5, E46/C, E52, E53, E60, E61, E63, E64, E65, E66, E67, E70, E81, E83, E85, E87, E90, E91, E92, E93, R56, RR1, RR2

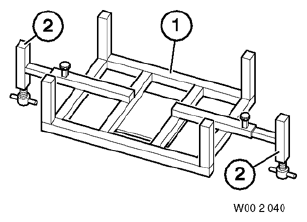

Fig 1: Identifying Basic Take-Up Fixture (00 2 040)

Courtesy of BMW OF NORTH AMERICA, INC.

Storage location: Single

SI number: 1 05 90 (207)

Order number: 00 2 040

Basic take-up fixture

Consisting of:

1 = 00 2 041 Base frame

2 = 00 2 042 Take-up fixtures, side
