00 9 310 Assembly Wedges (13)

WARNING: This page is about a different variant/trim than selected.

Minimum set: Mechanical tools

Note: For straightening and assembly jobs on vehicle bodies, e.g. fitting trim panels, removing window weatherstrips, repairing small -scale dents, removing residual adhesive materials, measuring gap widths, levering out trim panel parts.

Series: E12, E21, E23, E24, E28, E30, E30/C, E30tou, E31, E32, E32/3, E34, E34tou, E36, E36/2, E36/3, E36/5, E36/7, E36/C, E36tou, E38, E38/3, E39, E39PL, E39tou, E46, E46/16, E46/2, E46/3, E46/5, E46/C, E52, E53, E60, E61, E63, E64, E65, E66, E67, E83, E85, E87, E90, E91, R50, R52, R53, RR1.

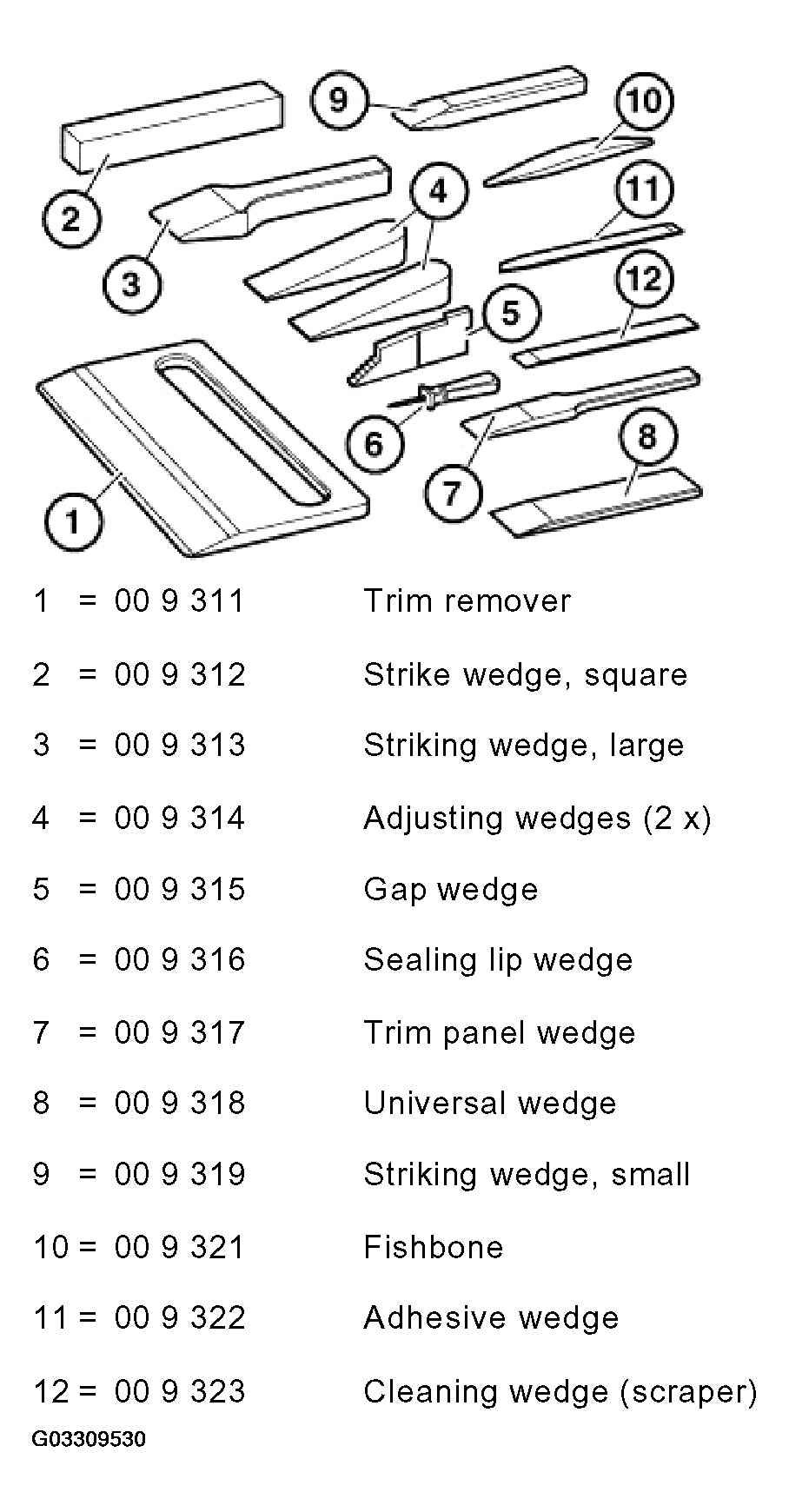

Fig 1: Identifying 00 9 310 Assembly Wedges

Courtesy of BMW OF NORTH AMERICA, INC.

SI number: 1 02 97(174).

Order number: 00 9 310 .

Assembly wedges (13).

Consisting of:

= 00 9 311 Trim remover.
= 00 9 312 Strike wedge, square.
= 00 9 313 Striking wedge, large.
= 00 9 314 Adjusting wedges (2 x).
= 00 9 315 Gap wedge.
= 00 9 316 Sealing lip wedge.
= 00 9 317 Trim panel wedge.
= 00 9 318 Universal wedge.
= 00 9 319 Striking wedge, small.
= 00 9 321 Fishbone.
= 00 9 322 Adhesive wedge.
= 00 9 323 Cleaning wedge (scraper).
00 9 329 Case with insert for assembly wedges.

In conjunction with: 00 9 310.
