Heating And Air Conditioning - Repair - Cooper (R50) , Cooper S (R53) & Convertible (R52)
>>
Heater With Operation
>>
64 11 221 Replacing resistor for heater - A/C fan
64 11 221 Replacing resistor for heater - A/C fan
Release screw (1).
Remove resistor for heater - A/C fan (2).

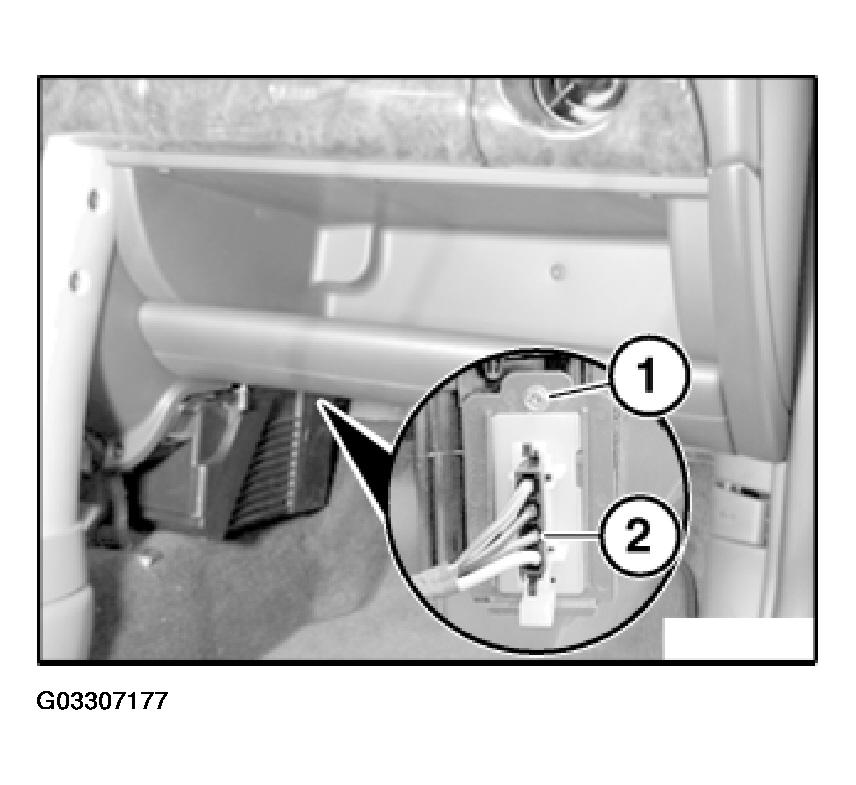

Fig 1: Removing Resistor For Heater And A/C Fan
Courtesy of BMW OF NORTH AMERICA, INC.
Courtesy of BMW OF NORTH AMERICA, INC.
