62 21 000 Removing and installing/replacing instrument carrier

WARNING: This page is about a different variant/trim than selected.

Necessary Preliminary Tasks:

Release screws (1).

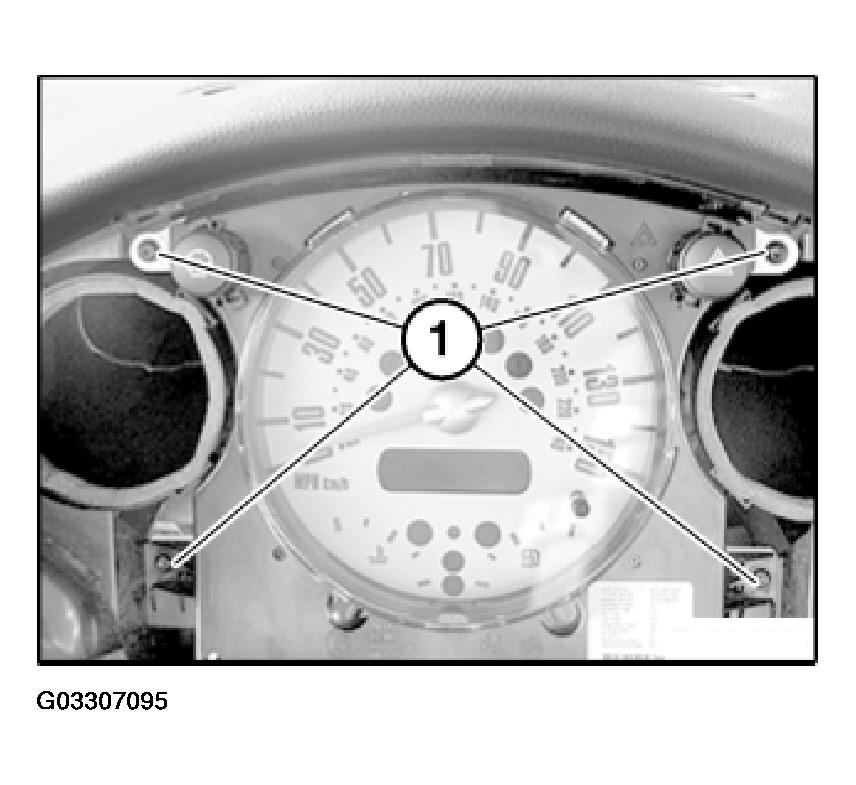

Fig 1: Removing Decorative Trim For Instrument Panel

Courtesy of BMW OF NORTH AMERICA, INC.

Unlock plug connections (1) and disconnect. Remove instrument carrier.

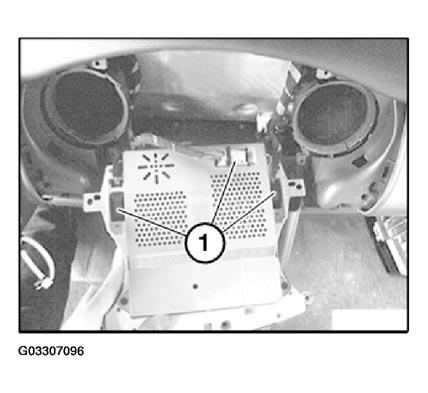

Fig 2: Removing Instrument Carrier

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Carry out programming/coding. Refer to DIAGNOSIS PROGRAMMING/CODING .
