11 28 050 Replacing A/C compressor drive belt with belt tensioner (S63)

WARNING: This page does not describe the selected car, but rather 50 other vehicles, including the 2016 BMW M5, 2016 BMW ActiveHybrid 5, 2016 BMW 550i xDrive, 2016 BMW 550i, and 2016 BMW 535i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Risk of damage.
Release screws (1) on vibration absorber only if removal position is adjusted.
If contaminated with hydraulic fluid: Replace drive belt.
Crank engine at central bolt in direction of engine rotation.

Installation note:

If the drive belt is to be reused, mark direction of travel and reinstall drive belt in same direction of rotation.

Necessary preliminary tasks:

Remove DRIVE BELT for alternator.

NOTE: Observe direction of engine rotation.

Crank engine at central bolt until marking (see arrow) is reached on vibration absorber.

Release screws (1).

Tightening torque 11 28 2AZ .

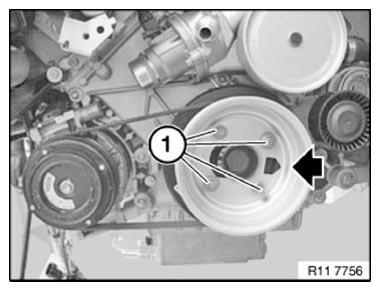

Fig 1: Identifying Screws

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Belt pulley is pretensioned.
Belt pulley tension is relieved abruptly during the cranking process.

NOTE: Observe direction of engine rotation.

Crank engine at central bolt until marking (see arrow) is reached on vibration absorber.

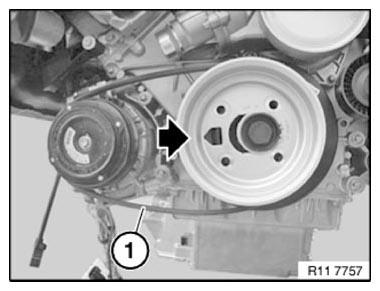

Fig 2: Identifying Central Bolt And Marking

Courtesy of BMW OF NORTH AMERICA, INC.

Remove elasto-belt.

Assemble engine.
