11 28 010 Replacing drive belt for alternator (N63 O1)
WARNING: This page does not describe the selected car, but rather 50 other vehicles, including the 2016 BMW M5, 2016 BMW ActiveHybrid 5, 2016 BMW 550i xDrive, 2016 BMW 550i, and 2016 BMW 535i xDrive. However, it is still accessible from the selected car via links, so may be relevant.
Special tools required:
- 11 0 390 .
IMPORTANT:
If contaminated with hydraulic fluid: Replace
drive belt.
Installation note:
If the drive belt is to be reused, mark direction of travel and reinstall drive belt in same direction of rotation.
Necessary preliminary work:
- Remove FAN COWL .
- Release EXPANSION TANK for charge air cooler from bracket and press forwards
Coolant hoses do not need to be released.
IMPORTANT:
Belt tensioner is under high initial spring tension.

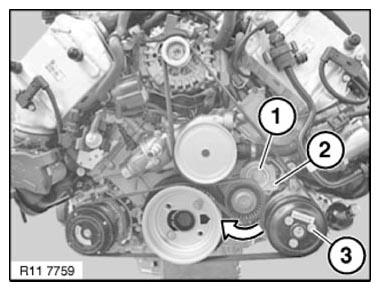

Pre-tension belt tensioner (1) in direction of arrow with tool (2).
Insert special tool 11 0 390 in dowel hole.
Remove drive belt.
Graphic shows N63.
Installation note:
Make sure drive belt is in correct installation position.
Assemble engine.
