51 11 180 Removing and installing/replacing trim grille for bumper trim (center)

WARNING: This page does not describe the selected car, but rather 50 other vehicles, including the 2016 BMW M5, 2016 BMW ActiveHybrid 5, 2016 BMW 550i xDrive, 2016 BMW 550i, and 2016 BMW 535i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove BASEPLATE FOR NUMBER/LICENSE PLATE
Remove TRIM GRILLE FOR BUMPER TRIM left and right

Unclip retaining lugs (2) and remove trim grille (1) by withdrawing forwards.

Installation note:

Retaining lugs (2) must not be damaged .

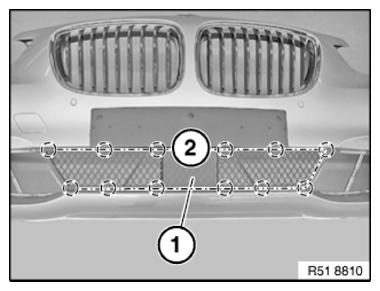

Fig 1: Identifying Bumper Retaining Lugs And Trim Grille

Courtesy of BMW OF NORTH AMERICA, INC.
