17 11 035 Removing and installing/replacing fan cowl with electric fan (W10, W11)
Necessary preliminary tasks:
- Remove radiator, refer to 17 11 000 Removing and installing radiator
IMPORTANT:
Make sure without fail that coolant hoses are correctly routed, risk of damage by sharp edges or abrasion.

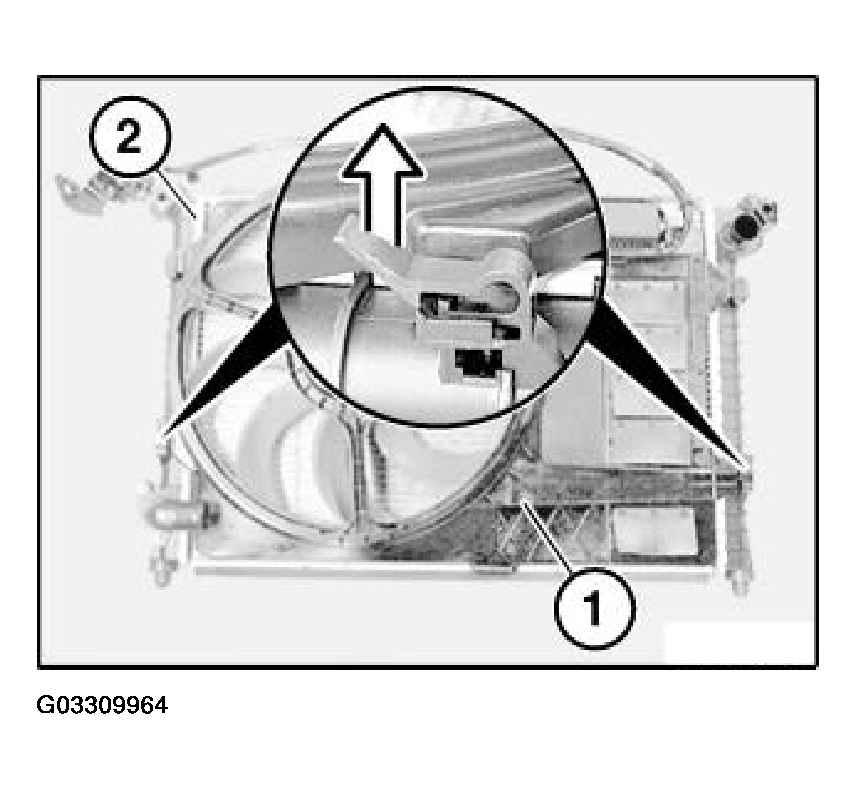

Unclip fan housing (1) on radiator (2) and move upward.
Remove fan cowl with electric fan.
