17 11 000 Removing and installing radiator

WARNING: Danger of scalding!
Only carry out work on the cooling system after the engine has cooled down!

Necessary preliminary tasks:

Switch off ignition
Drain coolant, refer to 17 00 005 Draining and adding coolant (COOPER S)
Remove front carrier, refer to 51 11 050 REMOVING AND INSTALLING/REPLACING CARRIER FOR FRONT BUMPER TRIM
Remove oil cooler, if fitted (ECVT only)
Remove upper radiator hose

IMPORTANT: Make sure without fail that coolant hoses are correctly routed, risk of damage by sharp edges or abrasion.

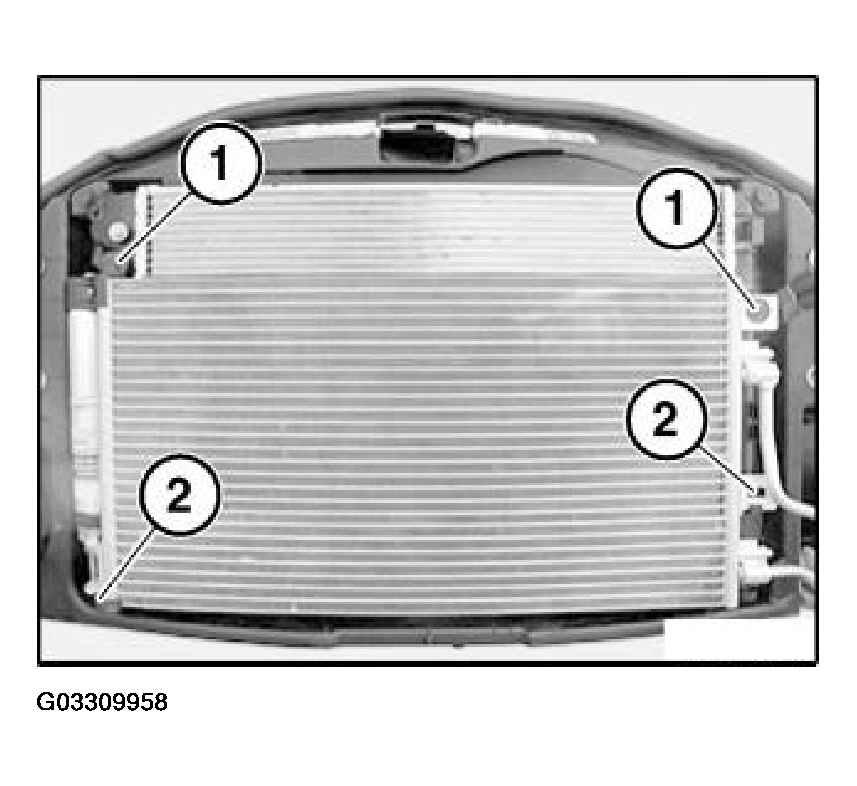

Remove retaining screws (1) of condenser and lift condenser out of fixture/retaining lug (2).

Fig 1: Removing Condenser

Courtesy of BMW OF NORTH AMERICA, INC.

Work carefully so as not to damage connected lines.

Remove upper radiator hose.

Fig 2: Removing Radiator Retaining Pins

Courtesy of BMW OF NORTH AMERICA, INC.

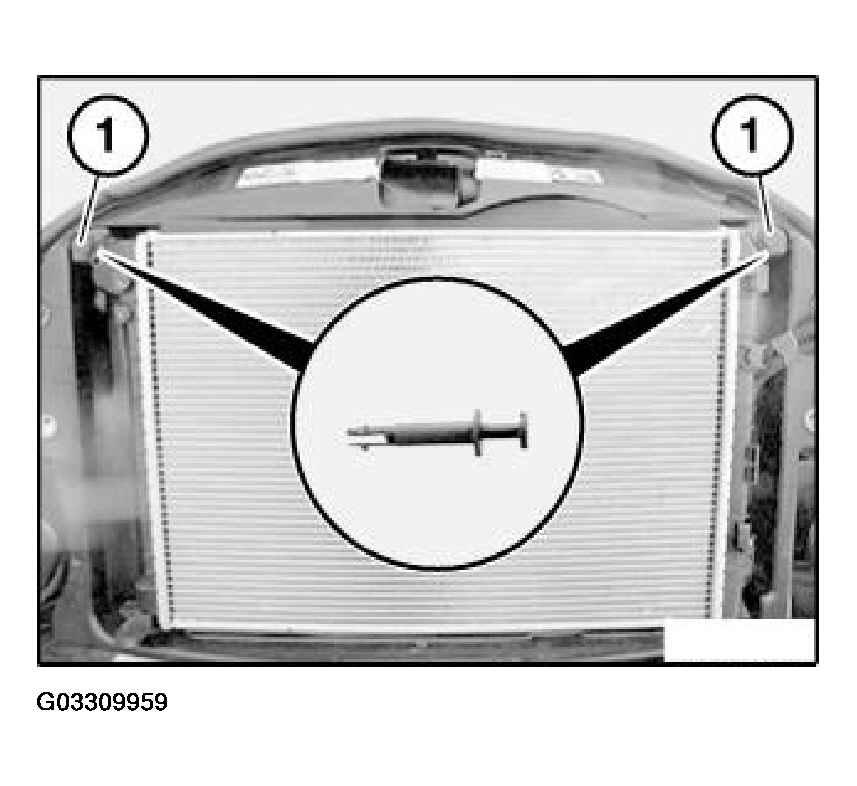

Remove retaining pins (1) of radiator.

Tilt upper radiator forwards.

Fig 3: Disconnecting Wiring Harness From Fan Relay Block

Courtesy of BMW OF NORTH AMERICA, INC.

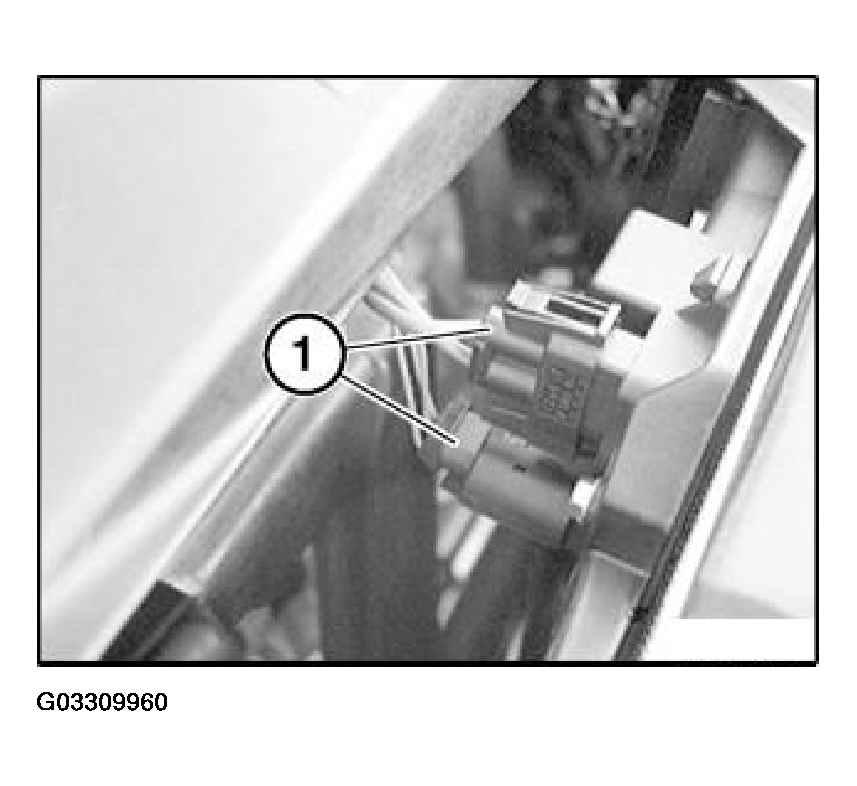

Disconnect wiring harness from fan relay block (1).

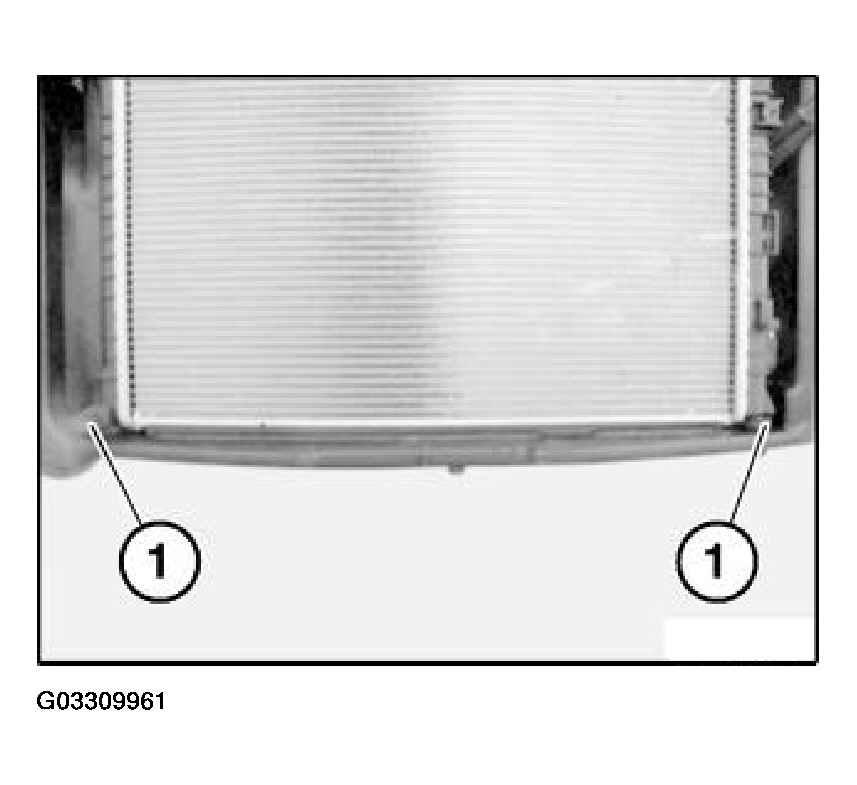

Lift radiator out of lower fixtures (1).

Fig 4: Removing Radiator From Lower Fixtures

Courtesy of BMW OF NORTH AMERICA, INC.
