51 11 050 Removing and installing/replacing carrier for front bumper trim
Necessary Preliminary Tasks:
- Remove front bumper trim. Refer to 51 11 156 REMOVING AND INSTALLING FRONT BUMPER TRIM .

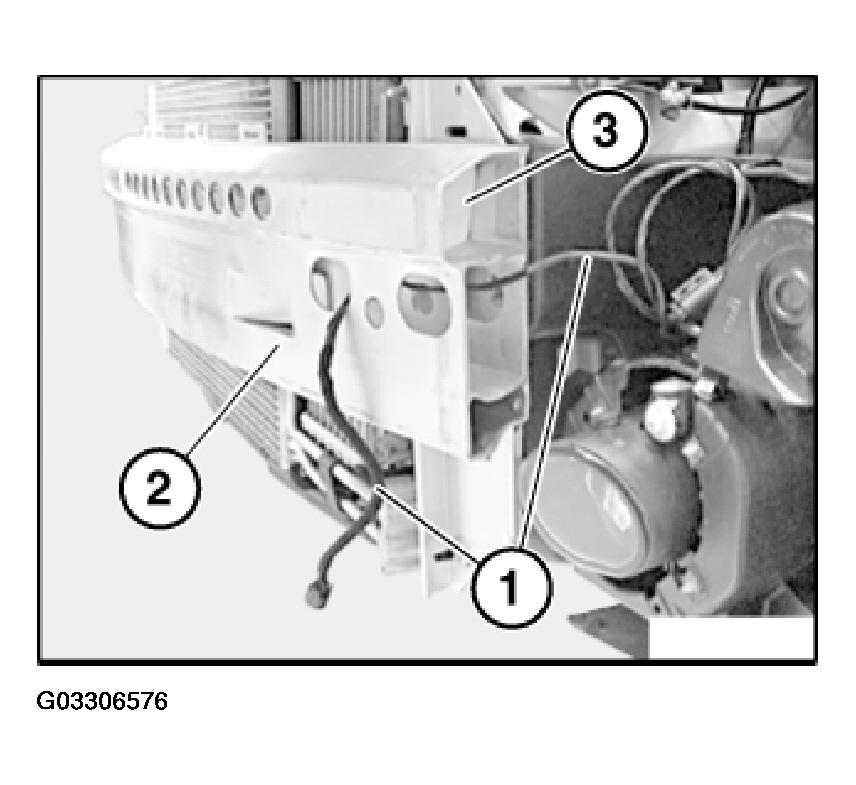

Remove cable (1) for outside temperature sensor from carrier (2).
Replacement only:
Fit left/right air distributor (3) in new carrier (2).

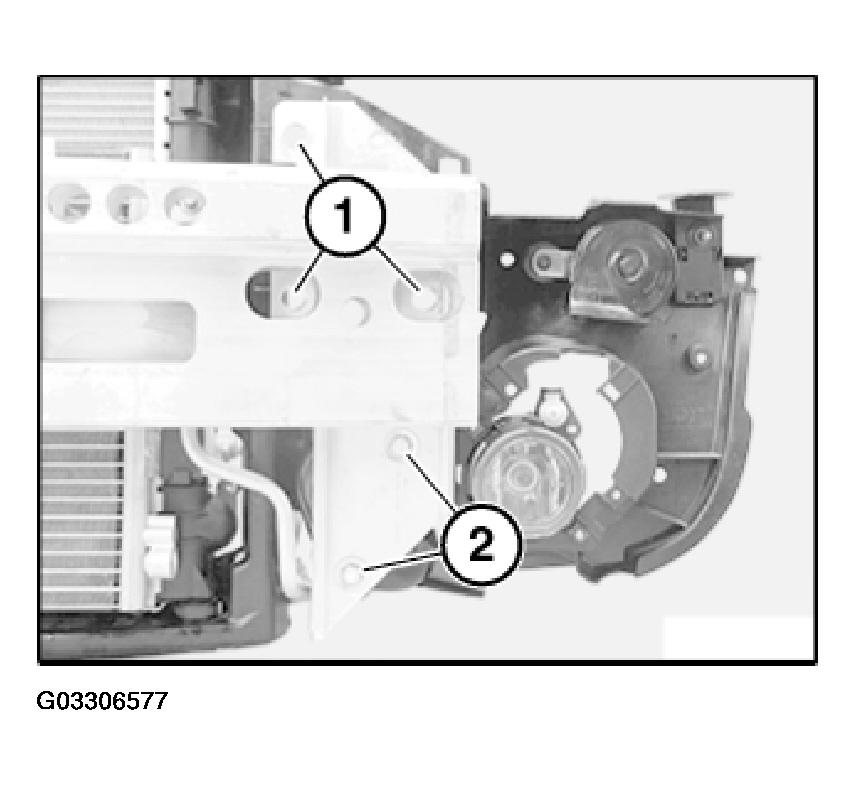

Version (A):
Release nuts (1) and screws (2) on left/right.
Detach carrier for front bumper trim.
Installation Note:
Nuts:
Tightening torque, refer to 51 11 3AZ in BODY EQUIPMENT - TIGHTENING TORQUES - COOPER (1.6L) R50/W10 .
Screws:
Tightening torque, refer to 51 11 4AZ in BODY EQUIPMENT - TIGHTENING TORQUES - COOPER (1.6L) R50/W10 .

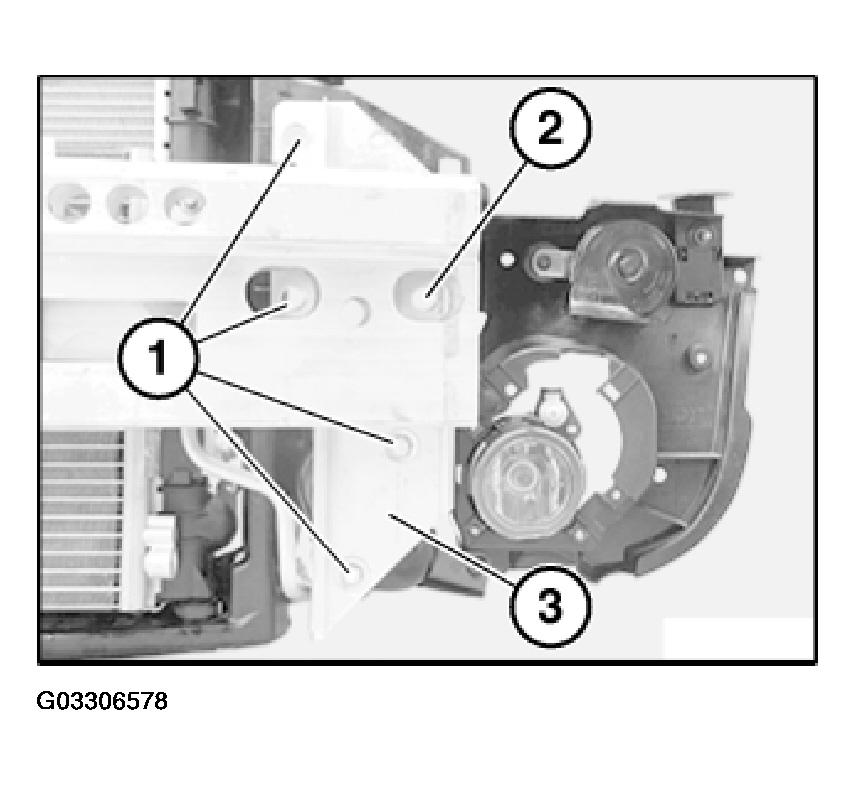

Version (B):
Release nuts (1) and screws (2) on left/right.
Detach carrier (3) for front bumper trim.
Installation note:
Nuts:
Tightening torque, refer to 51 11 3AZ in BODY EQUIPMENT - TIGHTENING TORQUES - COOPER (1.6L) R50/W10 .
Screws:
Tightening torque, refer to 51 11 4AZ in BODY EQUIPMENT - TIGHTENING TORQUES - COOPER (1.6L) R50/W10 .
Replacement only:
Adjust carrier (2) if necessary.

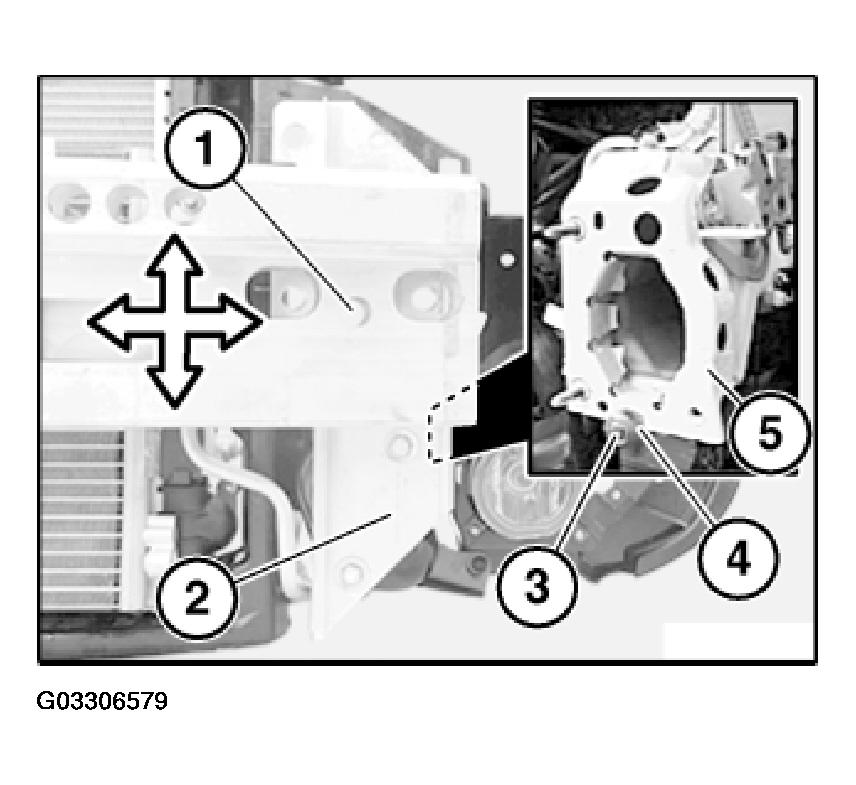

Setting of height (Z) and side (Y):
Release screw (3) through hole (1).
Adjust carrier (2) and fix guide sleeve (4) in position with screw (3).
Setting in longitudinal direction (X):
If necessary fit shims between carrier (2) and mount (5).
