51 43 050 Removing and installing/replacing grille for speaker (in rear side trim panel)

Necessary Preliminary Tasks:

• Remove rear side trim panel. Refer to 51 43 002 REMOVING AND INSTALLING REAR LEFT OR RIGHT SIDE TRIM PANEL .

Release screws (1).

Unlock catches (2).

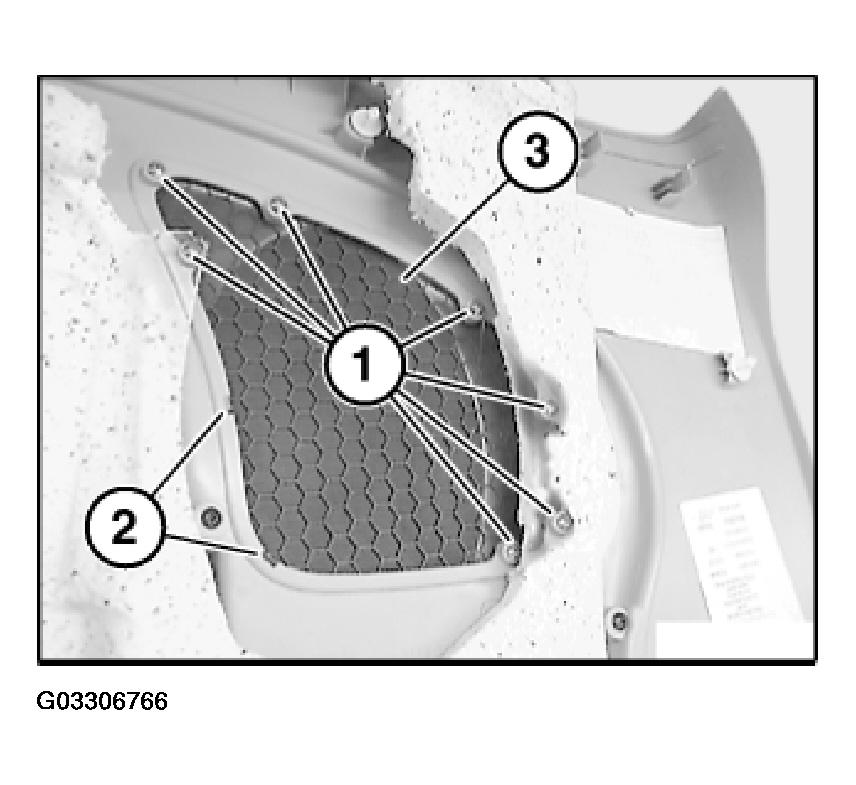

Fig 1: Locating Rear Side Trim Panel Retaining Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Remove grill (1) from side trim panel (2).

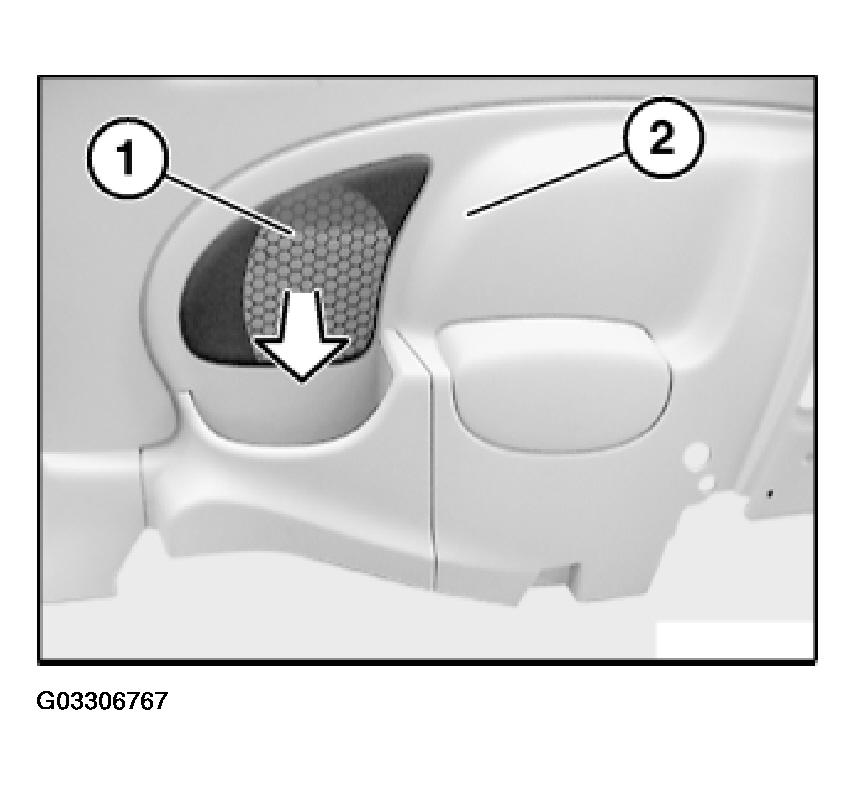

Fig 2: Removing Grill From Side Trim Panel

Courtesy of BMW OF NORTH AMERICA, INC.
