51 71 040 Removing and installing/replacing front left or right wheel arch liner

Removing and/or installing front or rear wheel, refer to 36 10 300 REMOVING OR INSTALLING FRONT OR REAR WHEEL .

Remove screws (1) and threaded blind rivets (2) from wheel arch liner.

Remove liner from wheel arch.

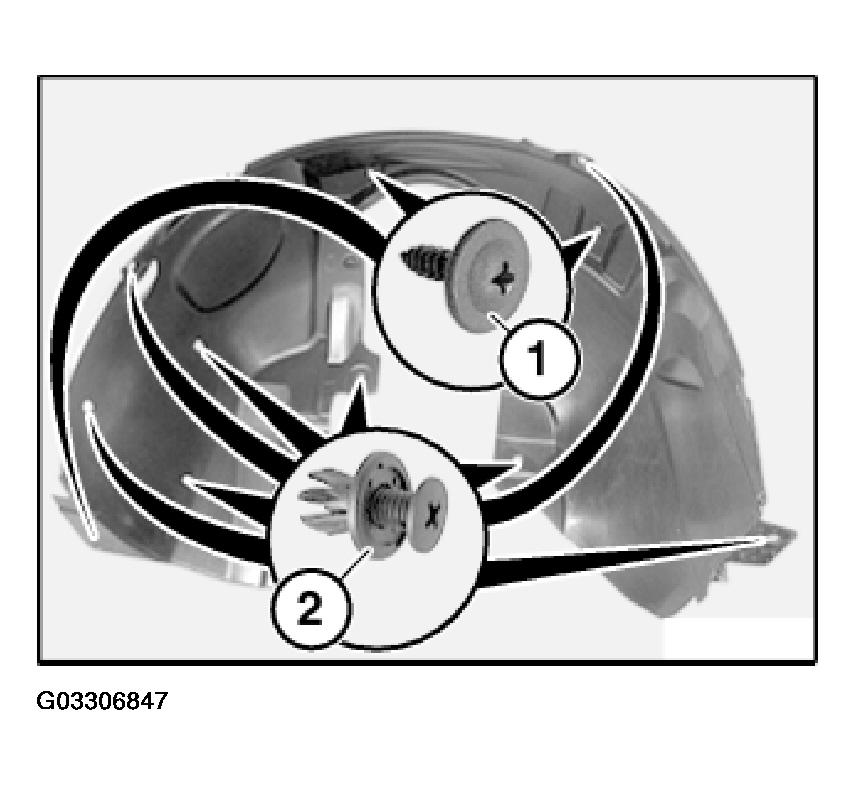

Fig 1: Identifying Screws And Rivets From Wheel Arch

Courtesy of BMW OF NORTH AMERICA, INC.
