51 21 300 Removing and installing/replacing window cavity cover strip on outer side of front door

Lower front door window.

Detach window cavity cover strip; in so doing, proceed from the front towards the rear.

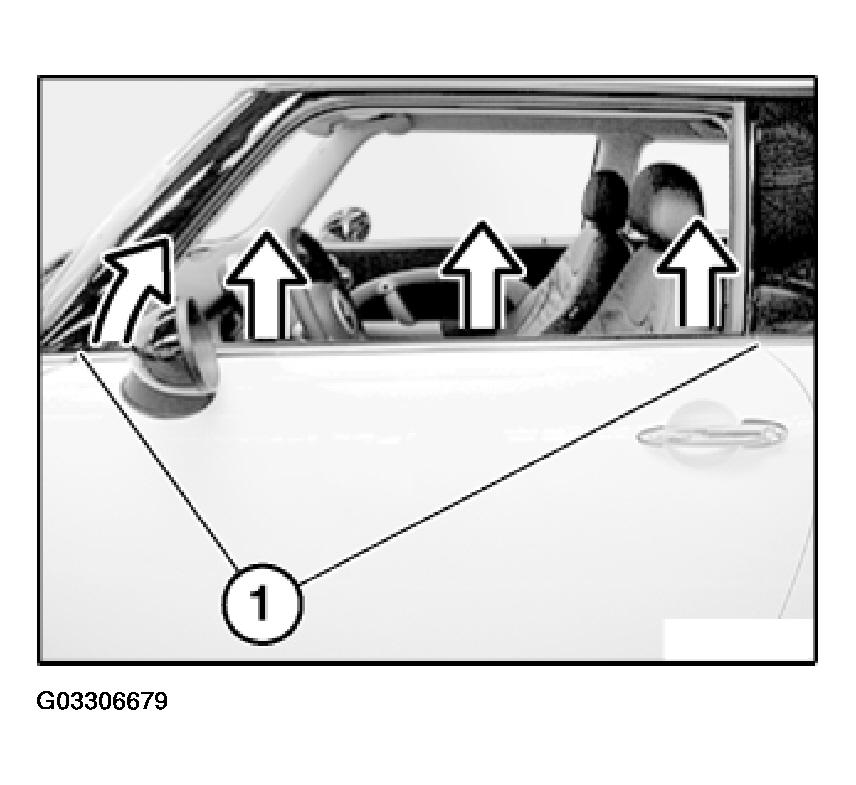

Fig 1: Detaching Window Cavity Cover Strip
G03306679Courtesy of BMW OF NORTH AMERICA, INC.
NOTE: Make sure that window cavity gaps (1) between 'A' pillar trim and rear window strip are correct.
