52 26 390 Removing and installing/replacing rear left or right head restraint

Unlock backrest and fold until head restraint can be removed.

Installation:

Make sure that seat belt is not trapped when backrest is folded back up.

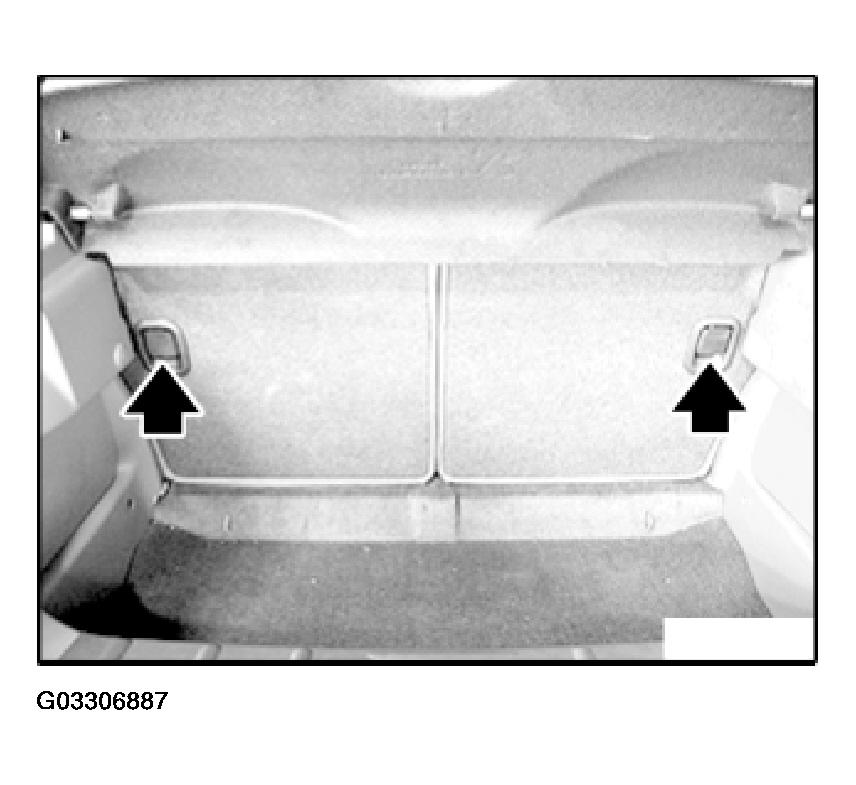

Fig 1: Removing Backrest

Courtesy of BMW OF NORTH AMERICA, INC.

Press release button and pull out head restraint.

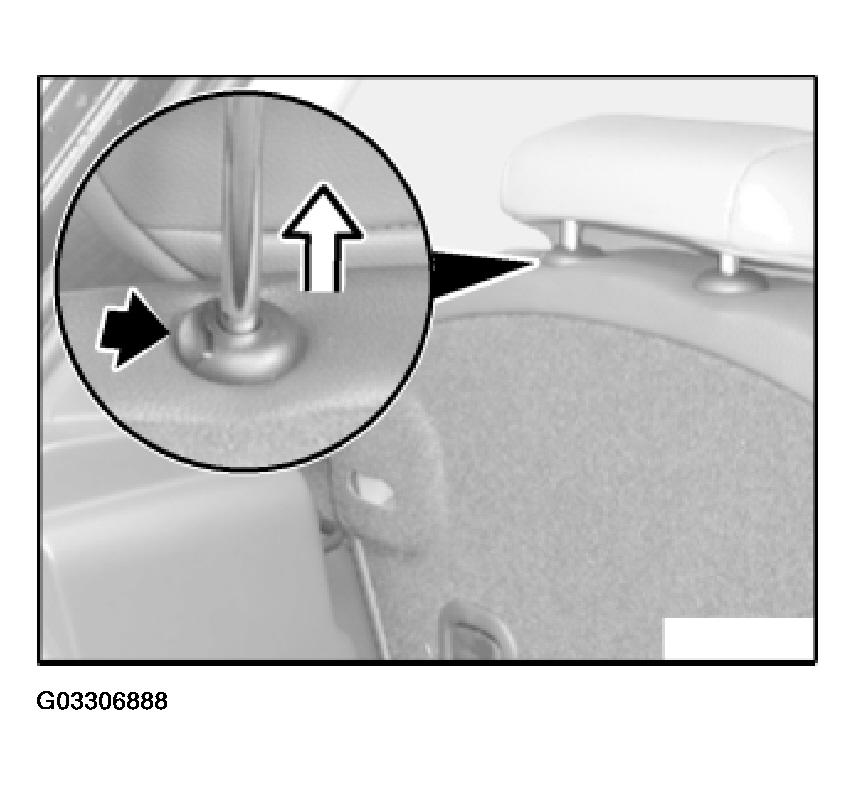

Fig 2: Pressing Release Button On Head Restraint

Courtesy of BMW OF NORTH AMERICA, INC.
