62 11 400 Removing and installing/replacing instrument on steering column

NOTE: The following operation applies to all the versions of the instrument on the steering column.

Release screws (1) on rear side of instrument.

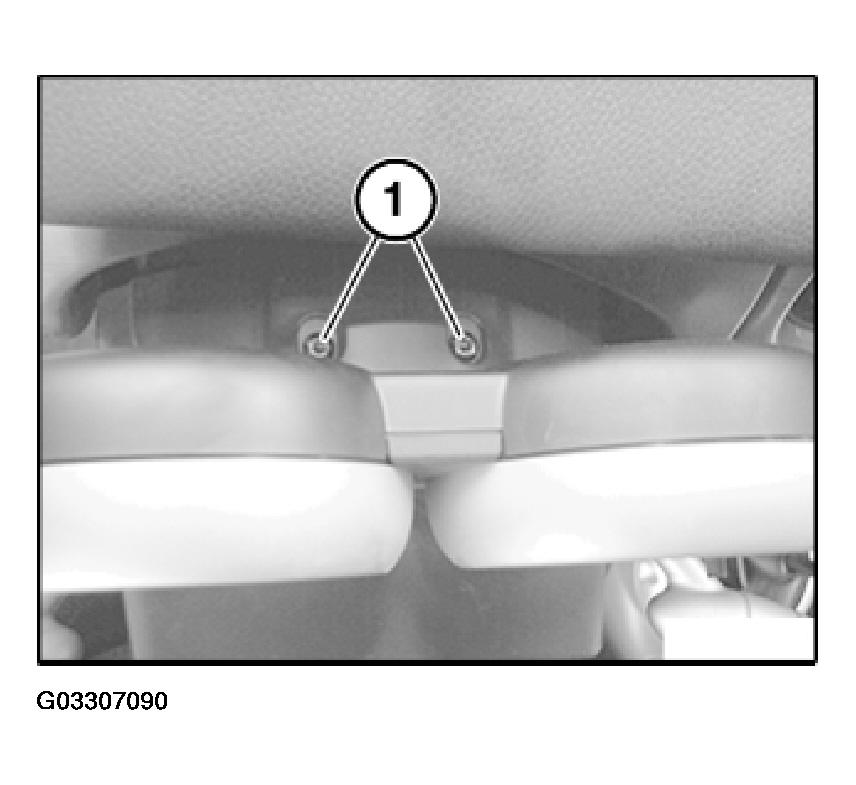

Fig 1: Identifying Screws On Rear Side Of Instrument

Courtesy of BMW OF NORTH AMERICA, INC.

Unlock plug connection (1), disconnect and remove instrument.

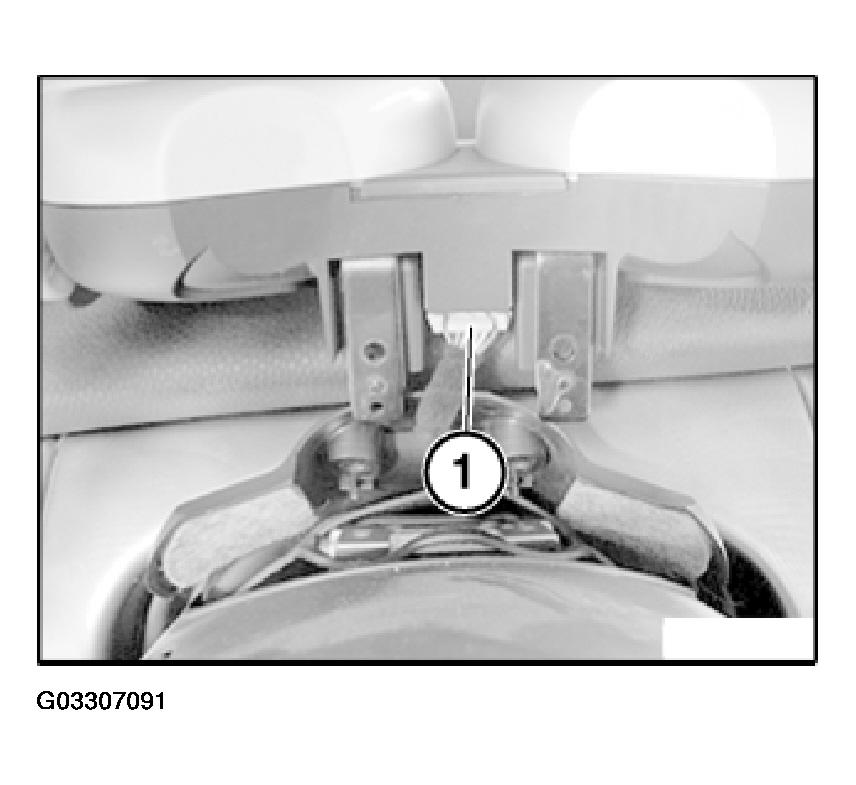

Fig 2: Disconnecting Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Carry out programming/coding. Refer to DIAGNOSIS PROGRAMMING/CODING .
