17 51 080 Removing and installing/replacing turbocharger exhaust pipe (right)

Remove left turbocharger exhaust pipe. Refer to 17 51 085 Removing and installing/replacing pipe between intercooler and intake manifold (left) .

Remove intake manifold. Refer to 11 61 051 REMOVING AND INSTALLING INTAKE MANIFOLD (COOPER S) .

Release bolts (1) and remove turbocharger exhaust pipe (2).

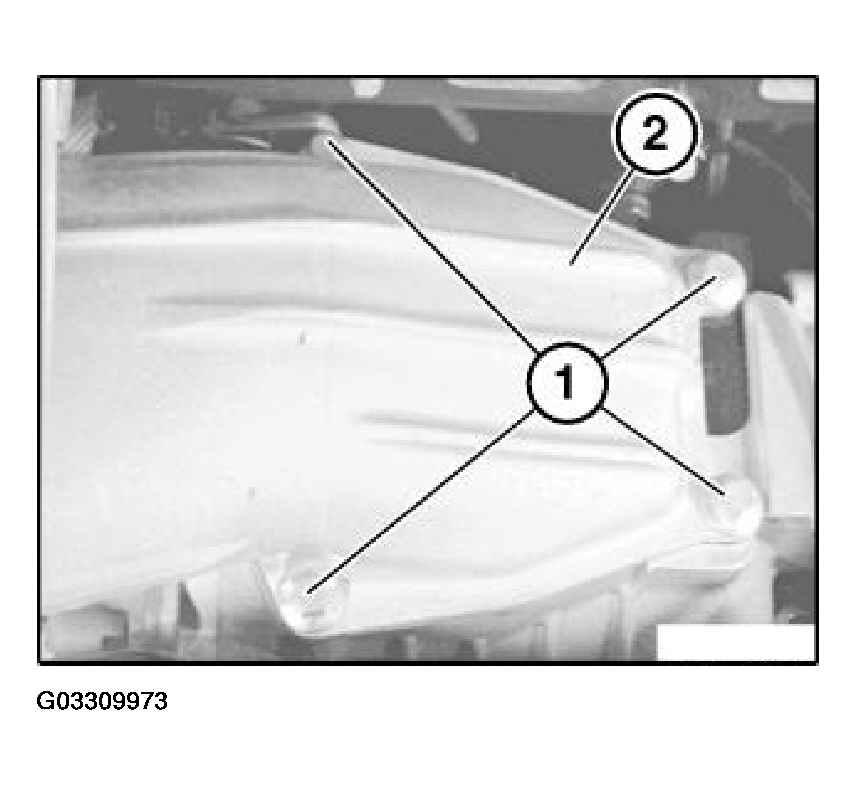

Fig 1: Removing Turbocharger Exhaust Pipe

Courtesy of BMW OF NORTH AMERICA, INC.

Tightening torque 17 51 4AZ. Refer to COOLING SYSTEM - TIGHTENING TORQUES .

Install new gasket (1) as shown so that TOP lettering (2) is can be read.

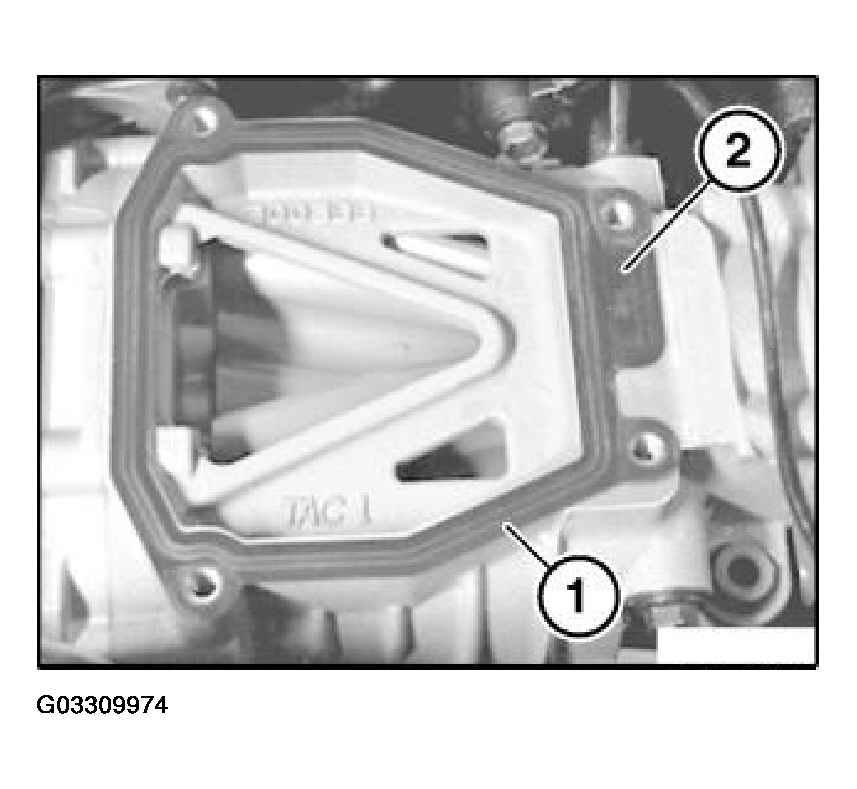

Fig 2: Installing Gasket

Courtesy of BMW OF NORTH AMERICA, INC.
