61 13 051 Removing and installing/replacing fuse box in engine compartment

Remove battery container. Refer to 61 21 100 REMOVING AND INSTALLING/REPLACING BATTERY CONTAINER .

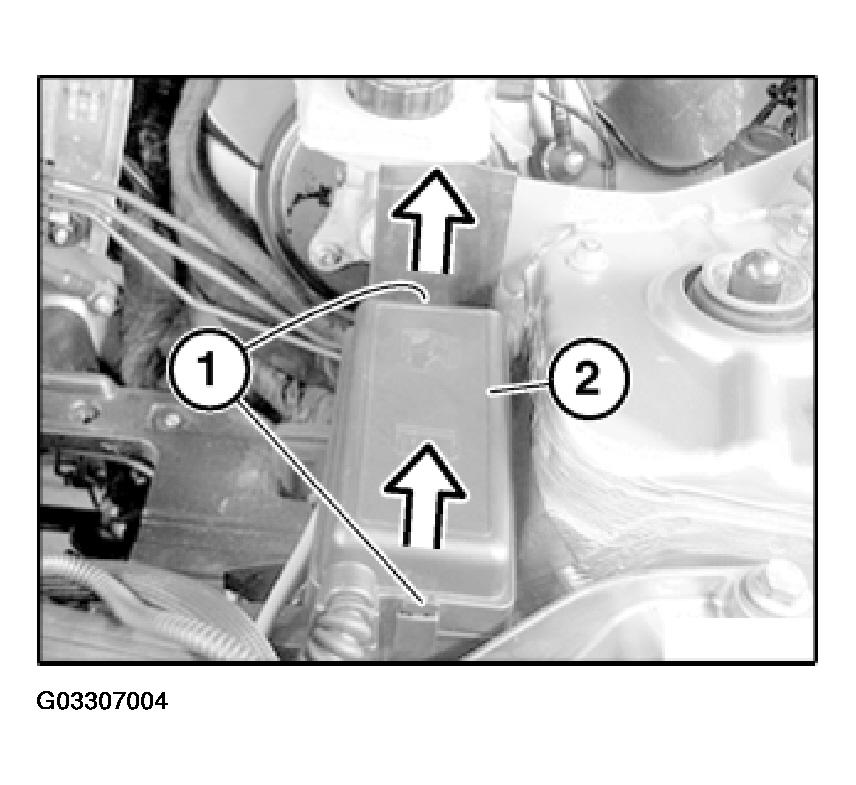

Release retaining clips (1) and remove fuse box cover (2).

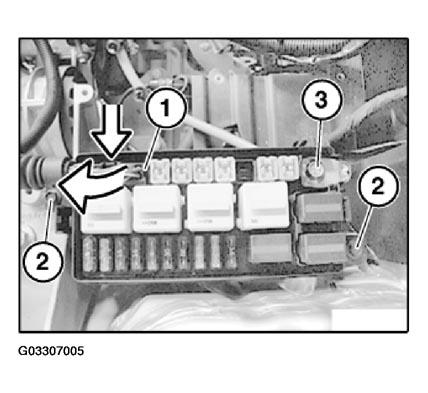

Detach plug connector (1).

Remove screws (2).

Tightening torque, refer to 61 13 1AZ in GENERAL ELECTRICAL SYSTEM - TIGHTENING TORQUE - COOPER (1.6L) R50/W10 .

Remove screw (3).

Tightening torque, refer to 61 13 4AZ in GENERAL ELECTRICAL SYSTEM - TIGHTENING TORQUE - COOPER (1.6L) R50/W10 .

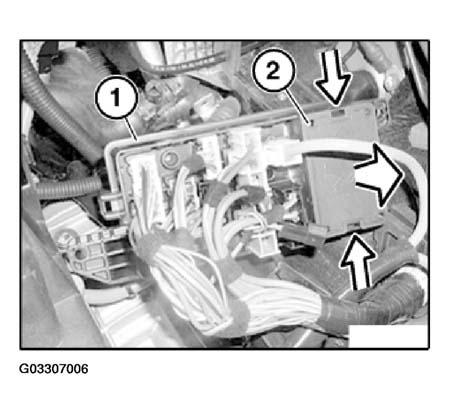

Disconnect plug connectors on underside of fuse box (1).

Installation:

Write down color and position of plug connectors before removing.

Replacement only:

Remove cover (2).

Remove fuses and relays.
