Power Steering Fan: Installation

To install, reverse removal procedure. Replace self-locking nuts. See TORQUE SPECIFICATIONS  .

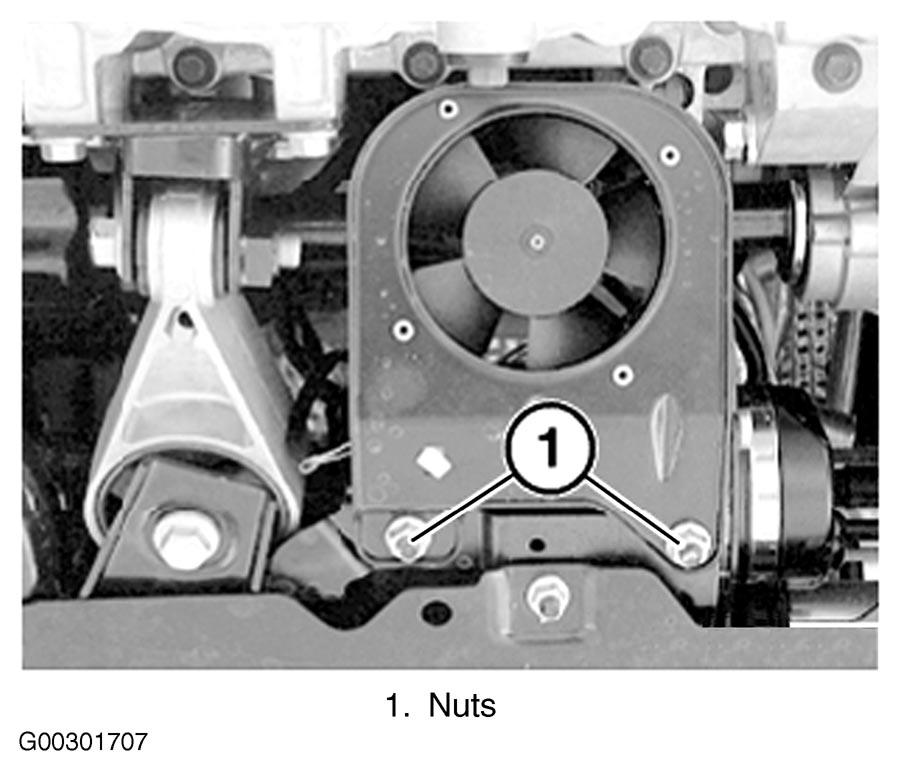

Fig 1: Removing Power Steering Nuts
G00301707Courtesy of BMW OF NORTH AMERICA, INC.

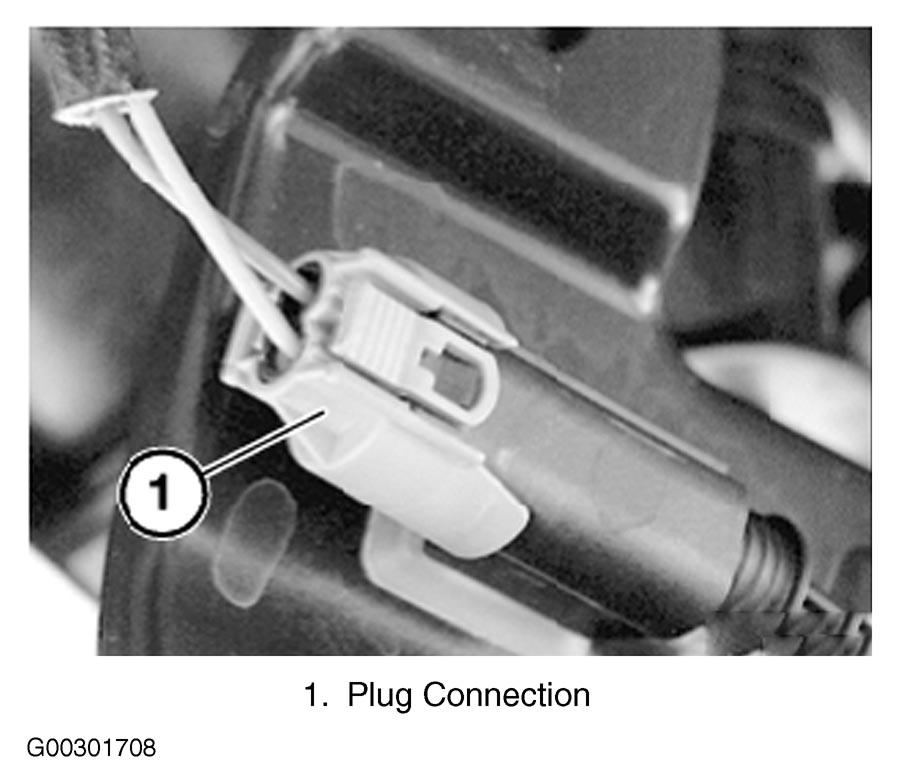

Fig 2: Unfastening Power Steering Fan Connector
G00301708Courtesy of BMW OF NORTH AMERICA, INC.

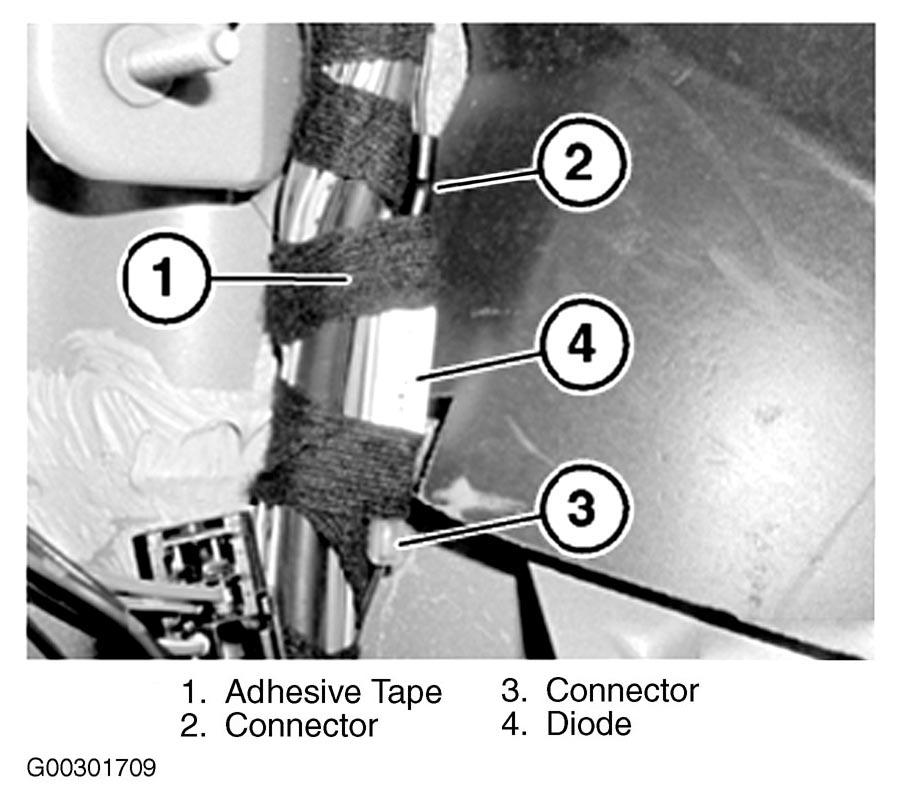

Fig 3: Locating Diode
G00301709Courtesy of BMW OF NORTH AMERICA, INC.
