11 51 000 Removing and installing/replacing water pump (COOPER S)

Remove supercharger. Refer to 11 65 035 Removing and installing/replacing supercharger  .

Remove water pump retaining bolts (1).

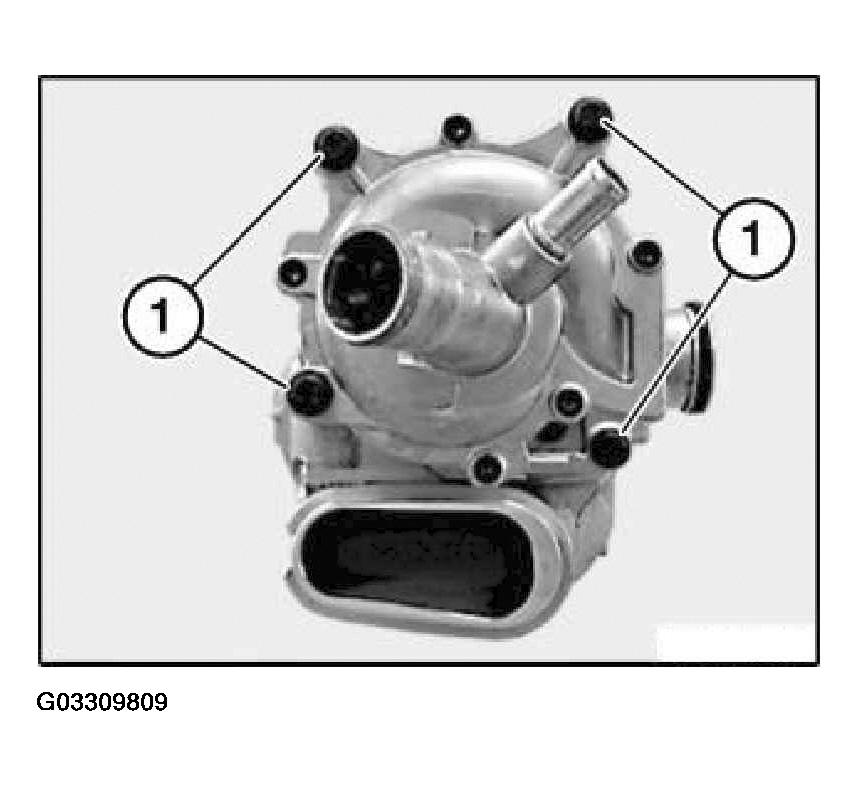

Fig 1: Removing Water Pump Retaining Bolts

Courtesy of BMW OF NORTH AMERICA, INC.

Tightening torque 11 51 2AZ. Refer to ENGINE - TIGHTENING TORQUES .

Align water pump drive (1) with supercharger drive (2).

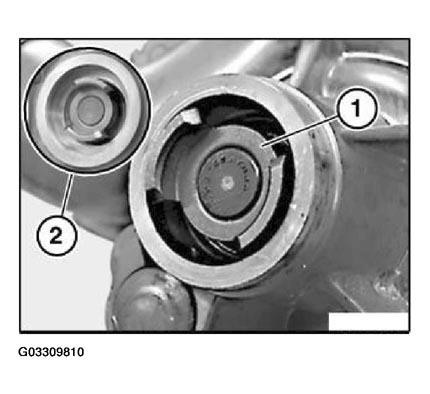

Fig 2: Aligning Water Pump Drive With Supercharger Drive

Courtesy of BMW OF NORTH AMERICA, INC.

Install water pump to supercharger.

Install new sealing ring (1) to water pump.

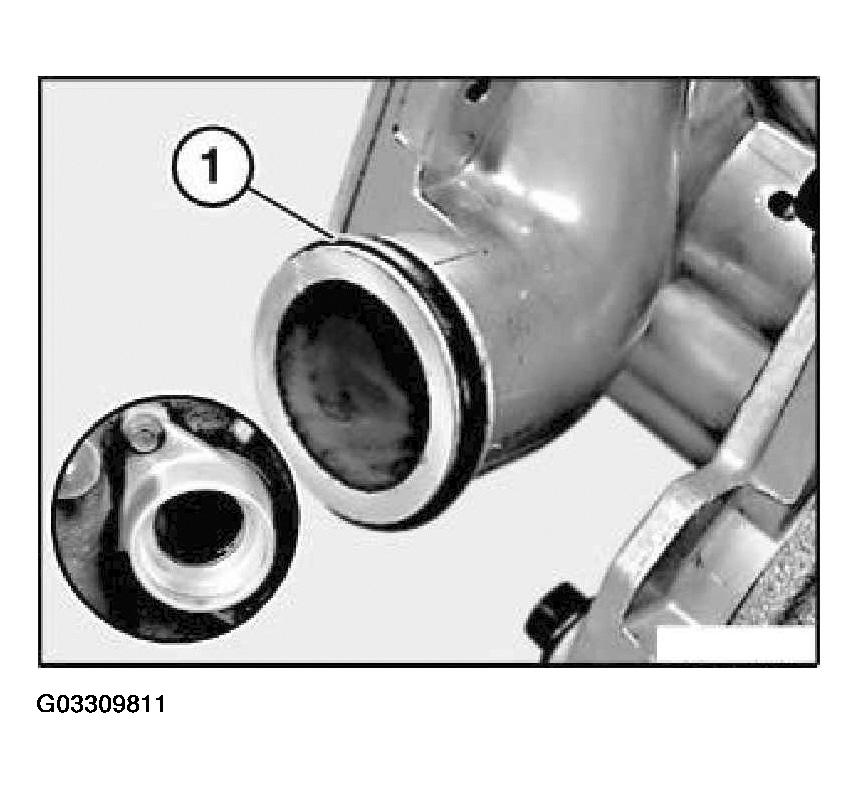

Fig 3: Installing New Sealing Ring To Water Pump

Courtesy of BMW OF NORTH AMERICA, INC.

Lubricate sealing ring with Syntheso Glep 1.
