64 11 932 Replacing evaporator temperature sensor (IHKR/IHKA)

Release screws (1).

Remove cover (2).

Fig 1: Locating Retaining Screws For Cover

Courtesy of BMW OF NORTH AMERICA, INC.

Turn evaporator temperature sensor (1) counterclockwise (approx. 45°) and pull out.

Unfasten plug connection (2) and disconnect.

Installation:

Make sure that opening (3) of evaporator temperature sensor (1) is correctly aligned.

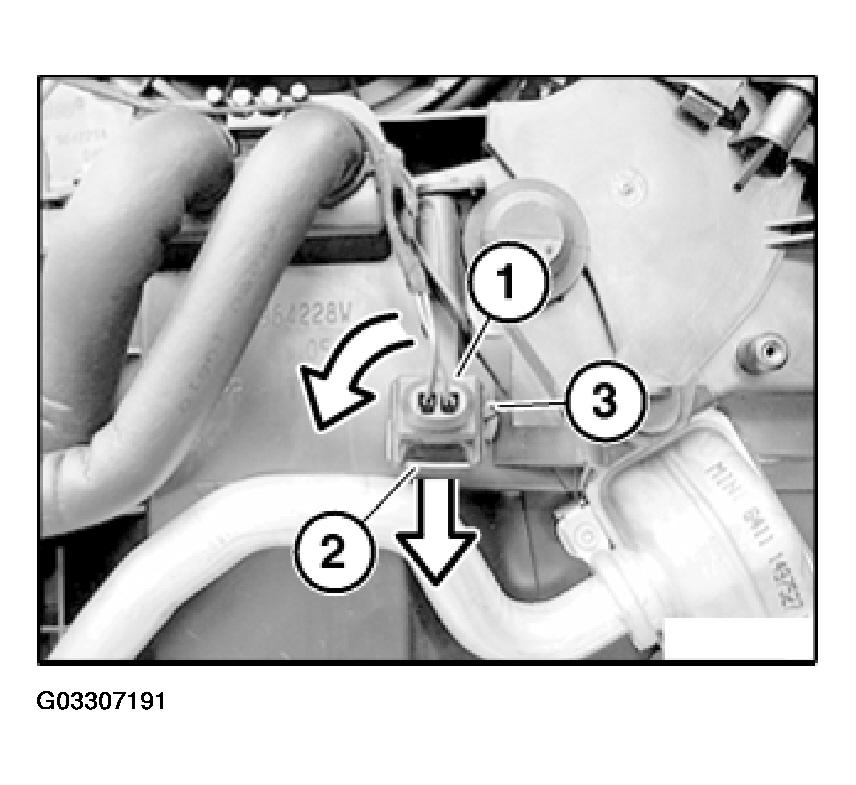

Fig 2: Disconnecting Evaporator Temperature Sensor Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.
