64 11 805 Removing and installing/replacing servodrive for fresh-air/reirculated-air flap
Necessary Preliminary Tasks:
- Remove right storage compartment, refer to 51 16 390 REMOVING AND INSTALLING/REPLACING INSTRUMENT PANEL TRIM STORAGE TRAY (PASSENGER SIDE) , or remove glovebox, refer to 51 16 360 REMOVING AND INSTALLING RIGHT GLOVEBOX .

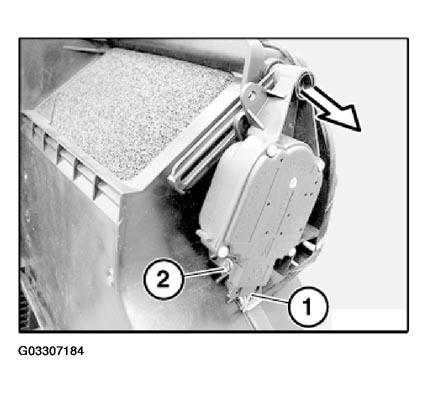

Detach plug connector (1).
Remove screws (2).
Pull servodrive forwards away from flap mechanism.
Installation:
The servodrive is seated in a keyway.
