64 53 510 Removing and installing / replacing drier bottle for air conditioner
NOTE:
A/C system is drawn off. Refer to 64 50 009 DRAWING OFF, EVACUATING AND FILLING A/C SYSTEM (R 134A) .
Follow instructions on replacing drier bottle. Refer to 64 53 ... NOTES ON REPLACING DRIER BOTTLE OR DRIER INSERT .

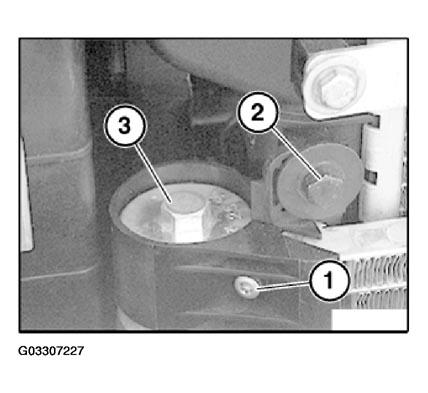

Release screw (1).
Release screws (2).
Release drier bottle (3), tightening torque, refer to 64 53 3AZ in HEATING AND AIR CONDITIONING - TIGHTENING TORQUES - COOPER (1.6L) R50/W10 .
Remove drier bottle together with bracket.
Installation:
Replace O-ring of drier bottle.
