51 45 030 Removing and installing instrument panel trim (with carrier and heater)

Necessary Preliminary Tasks:

Drain coolant. Refer to 17 00 005 DRAINING AND ADDING COOLANT .
Version With Air Conditioner: Drain off air conditioner. Refer to 64 50 009 DRAWING OFF, EVACUATING AND FILLING A/C SYSTEM (R 134A) .
W10 Only: Remove battery container. Refer to 61 21 100 REMOVING AND INSTALLING/REPLACING BATTERY CONTAINER .
W11, W17 Only: Remove intake filter housing.
Remove both trims for roof pillars (A-pillar) at front. Refer to 51 43 201 REMOVING AND INSTALLING OR REPLACING TRIM FOR FRONT LEFT OR RIGHT ROOF ('A' POST) .
Remove radio receiver. Refer to 65 11 030 REMOVING AND INSTALLING/REPLACING RADIO RECEIVER (BUILT-IN UNIT) .
Remove inside entrance cover strip. Refer to 51 47 000 REMOVING AND INSTALLING/REPLACING FRONT LEFT OR RIGHT ENTRANCE COVER STRIP (INSIDE) .
Remove lower section of steering column trim. Refer to LOWER SECTION OF STEERING COLUMN TRIM .

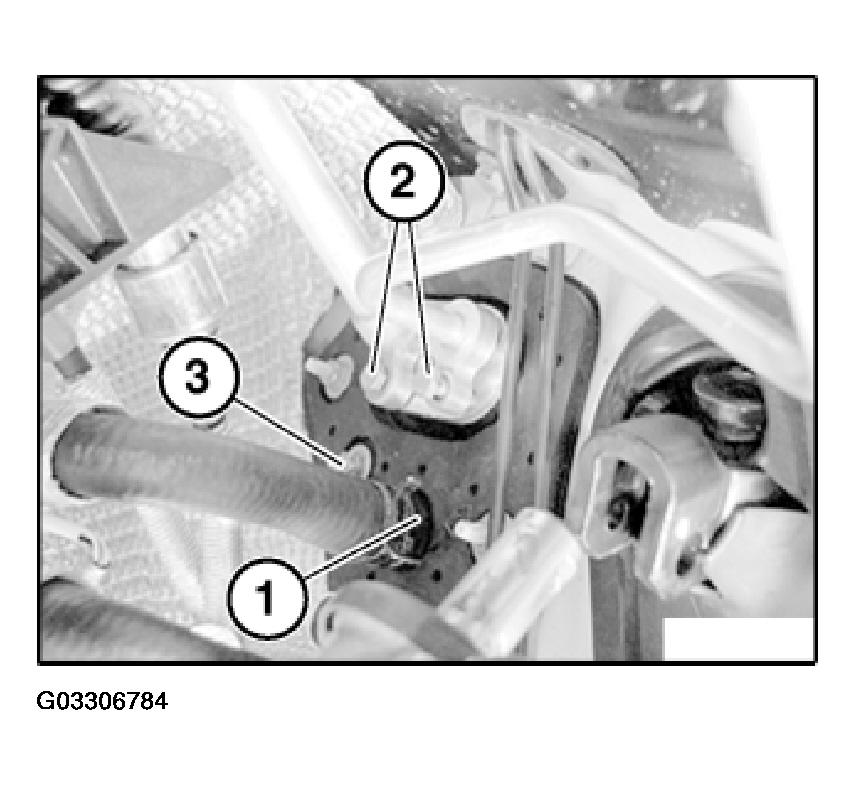

Unclip and disconnect heater hose (1).

Version With Air Conditioner:

Release screws (2), Tightening torque, refer to 64 11 4AZ in HEATING AND AIR CONDITIONING - TIGHTENING TORQUES - COOPER (1.6L) R50/W10 .

Detach A/C lines.

Installation:

Replace O-rings.

Release nut (3) on guide pin/heater, Tightening torque, refer to 64 11 1AZ in HEATING AND AIR CONDITIONING - TIGHTENING TORQUES - COOPER (1.6L) R50/W10 .

Fig 1: View Of Heater Hose

Courtesy of BMW OF NORTH AMERICA, INC.

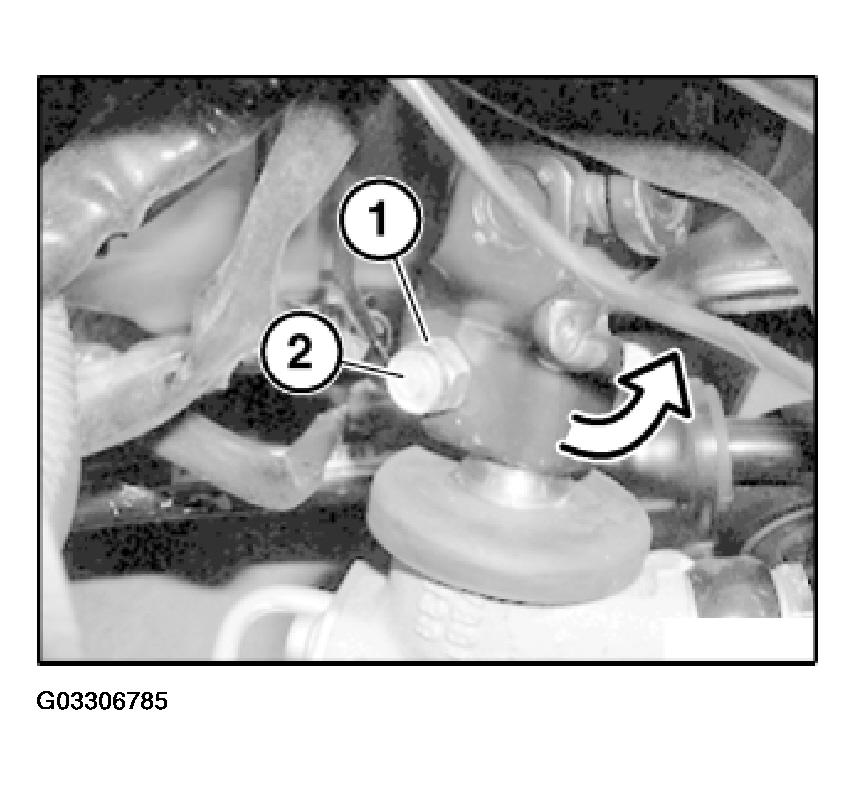

Turn steering wheel to expose nut (1).

Release nut (1), Tightening torque, (21 N.m.).

Installation:

Replace nut (1).

Release screw (2).

Detach steering column.

Fig 2: Identifying Retaining Nut Under Steering Wheel

Courtesy of BMW OF NORTH AMERICA, INC.

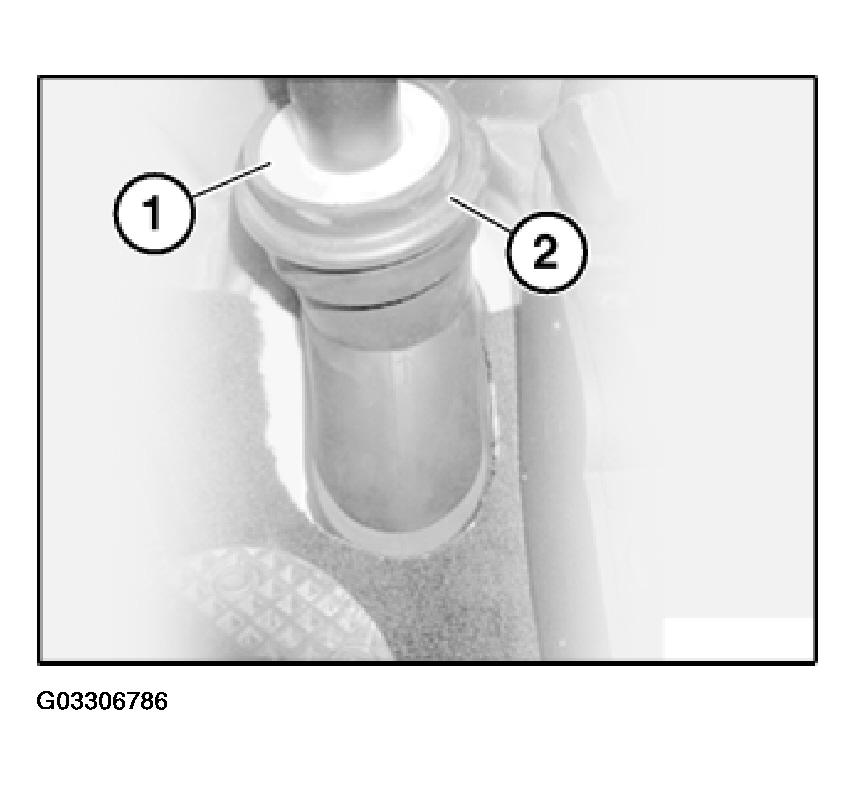

Detach steering column (1) from rubber seal (2).

Fig 3: View Of Rubber Seal On Steering Column

Courtesy of BMW OF NORTH AMERICA, INC.

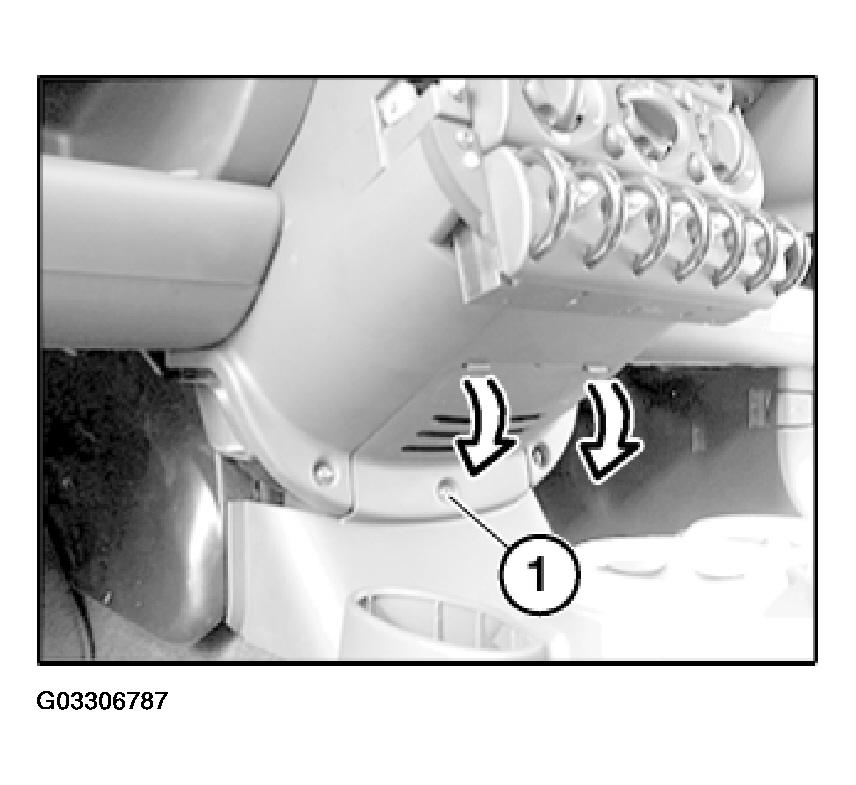

Release screw (1).

Release retaining clips and take off cover.

Fig 4: Locating Retaining Screw For Cover

Courtesy of BMW OF NORTH AMERICA, INC.

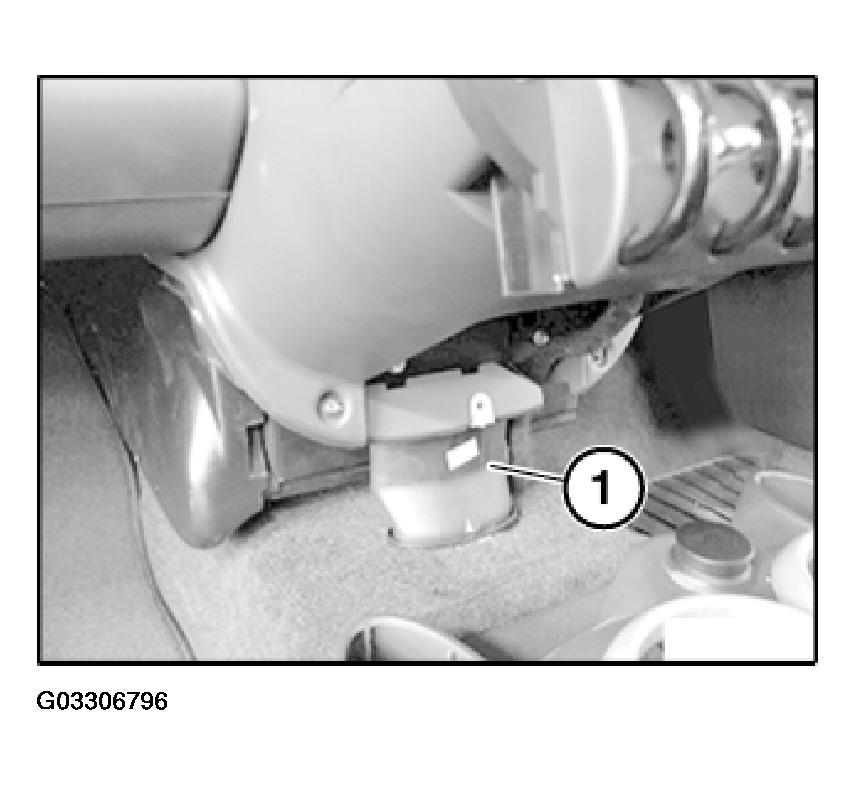

Turn plug connection (1) in direction of arrow and unclip.

Unfasten plug connection (1) and disconnect.

Fig 5: View Of Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.

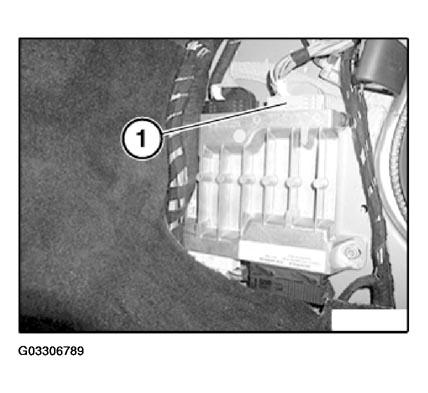

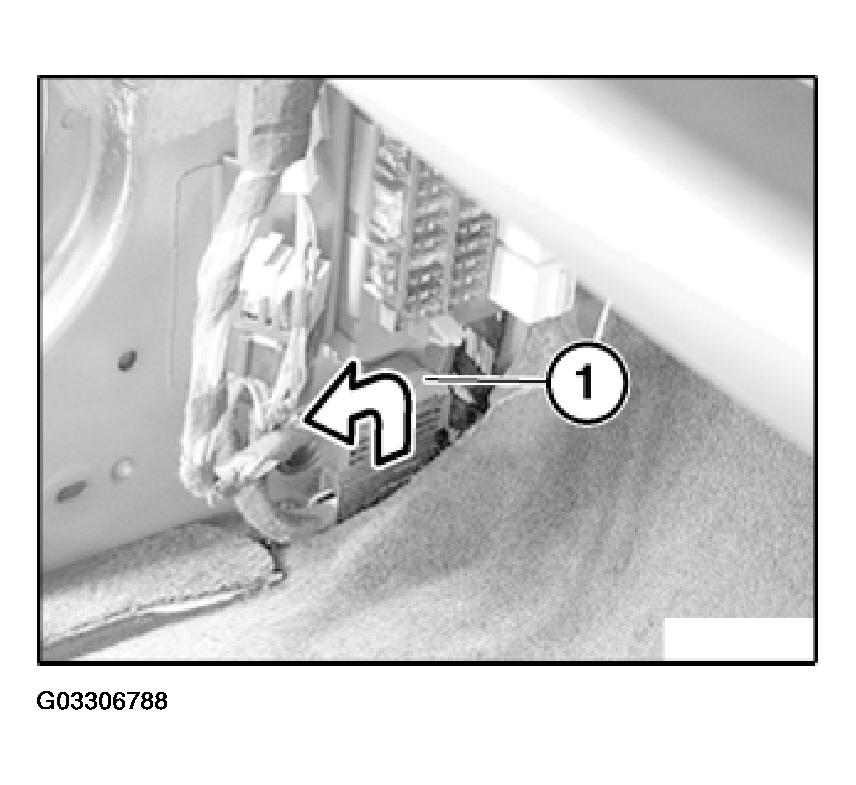

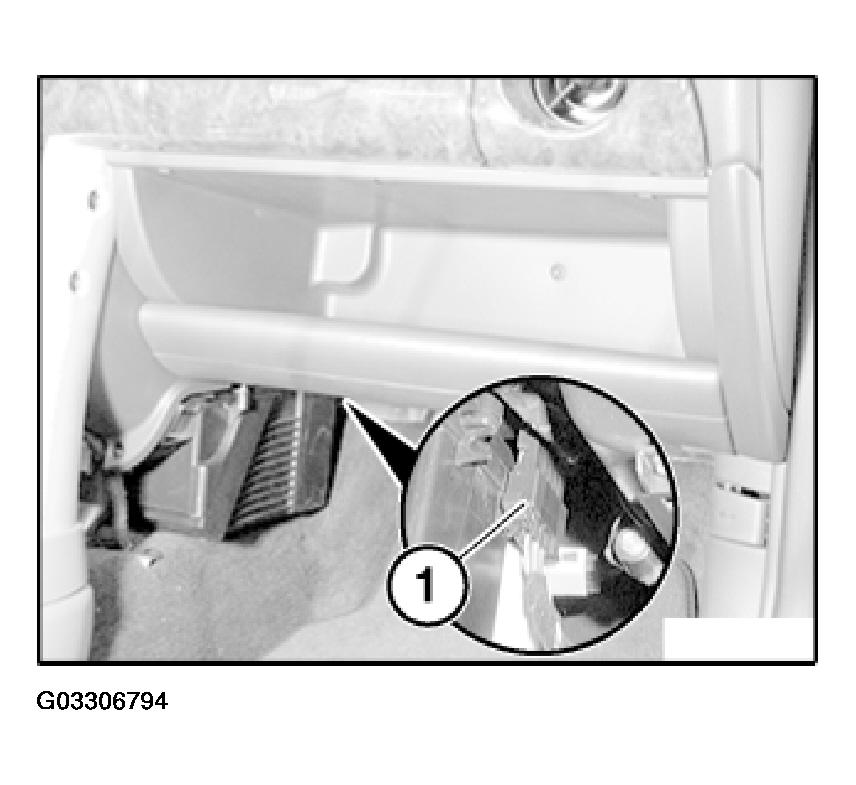

Unlock and disconnect plug connector (1) from BC1.

Fig 6: Identifying Plug Connector From BC1

Courtesy of BMW OF NORTH AMERICA, INC.

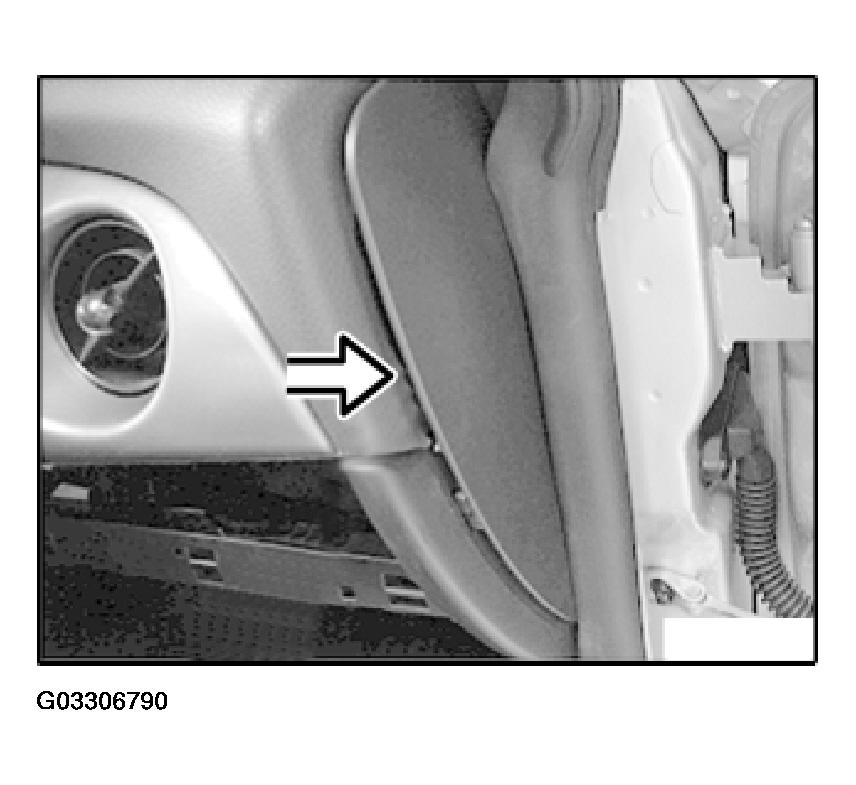

Release side instrument panel trim on left and right and remove.

Fig 7: View Of Side Instrument Panel Trim

Courtesy of BMW OF NORTH AMERICA, INC.

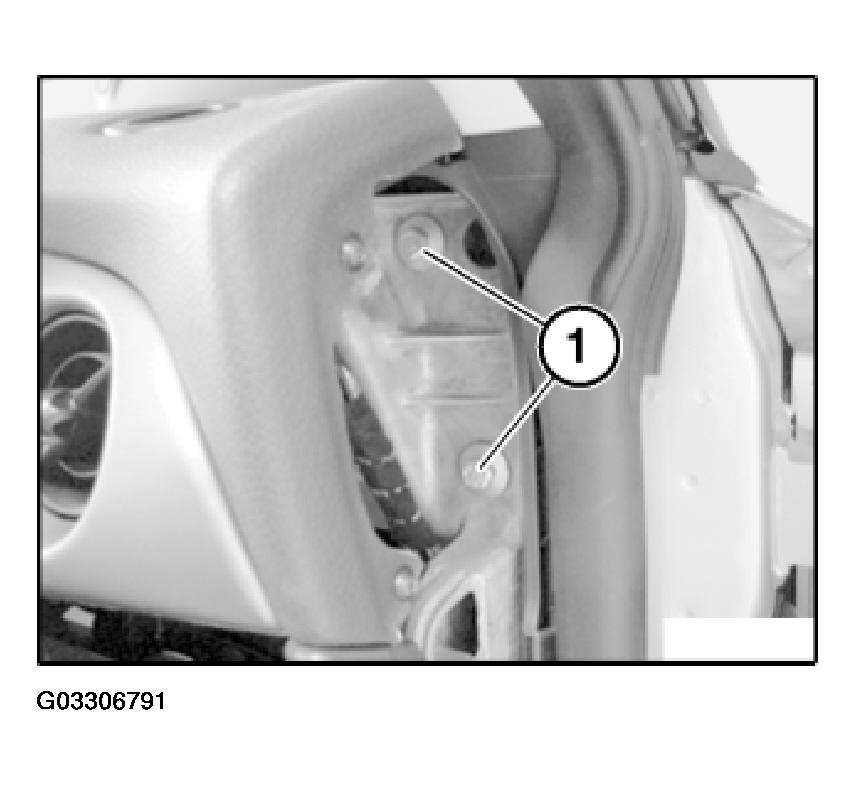

Release left and right mounting bolts (1) of instrument panel trim, Tightening torque, refer to 51 45 1AZ in BODY EQUIPMENT - TIGHTENING TORQUES - COOPER (1.6L) R50/W10 .

Fig 8: Releasing Left And Right Mounting Bolts Of Instrument Panel Trim

Courtesy of BMW OF NORTH AMERICA, INC.

Unclip wiring harness at holders (1) on instrument panel trim.

Fig 9: Unclipping Wiring Harness At Holders On Instrument Panel Trim

Courtesy of BMW OF NORTH AMERICA, INC.

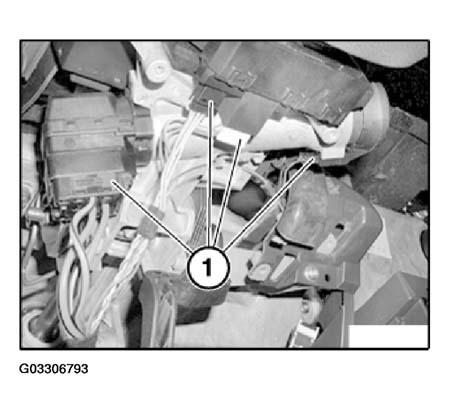

Unlock and disconnect plug connections (1) from steering column.

Fig 10: Locating Plug Connections From Steering Column

Courtesy of BMW OF NORTH AMERICA, INC.

Unlock and disconnect plug connection (1) from heater/air conditioner.

Fig 11: View Of Plug Connection From Heater/Air Conditioner

Courtesy of BMW OF NORTH AMERICA, INC.

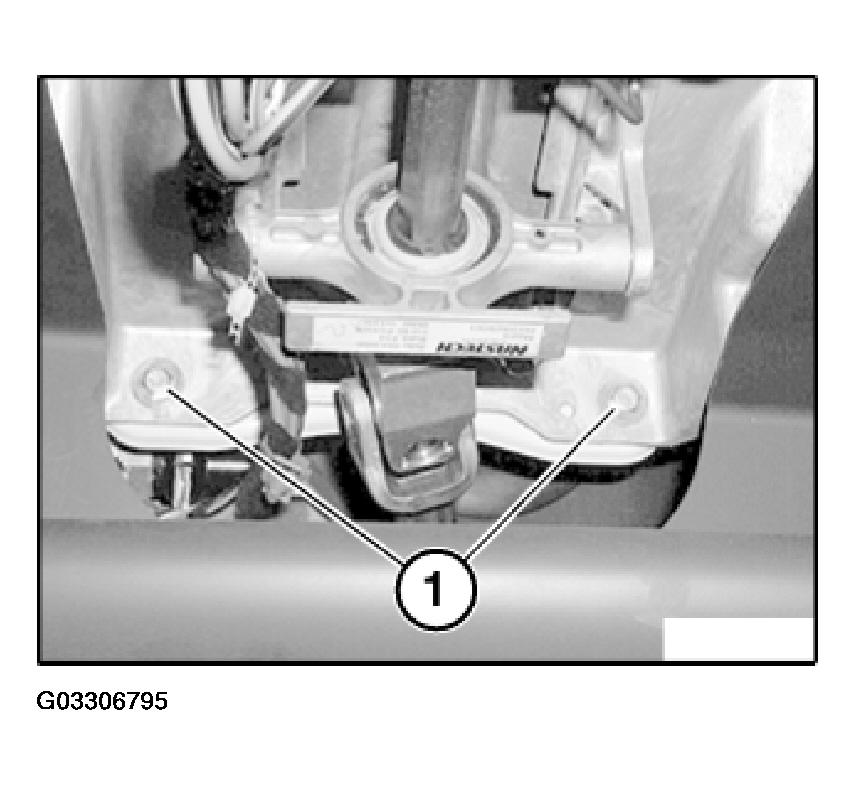

Release screws (1), Tightening torque, refer to 51 45 2AZ in BODY EQUIPMENT - TIGHTENING TORQUES - COOPER (1.6L) R50/W10 .

Fig 12: Identifying Retaining Screws

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Two persons are required to remove the instrument panel trim.

Installation:

Make sure that connection (1) to rear heater duct is secured to heater/air conditioner prior to installation and placed in the correct position.

Fig 13: Locating Connection To Rear Heater Duct

Courtesy of BMW OF NORTH AMERICA, INC.
