52 26 413 Removing and installing/replacing backrest cover for left or right rear seat

Necessary Preliminary Tasks:

WARNING: Backrest frames of rear seats have very sharp edges. Risk of injury and damage!

Coupe only:

Press backrest cover with padding next to guide downwards to expose detent lugs.

Unlock detent lugs and lift out guide.

IMPORTANT: Do not damage backrest cover.

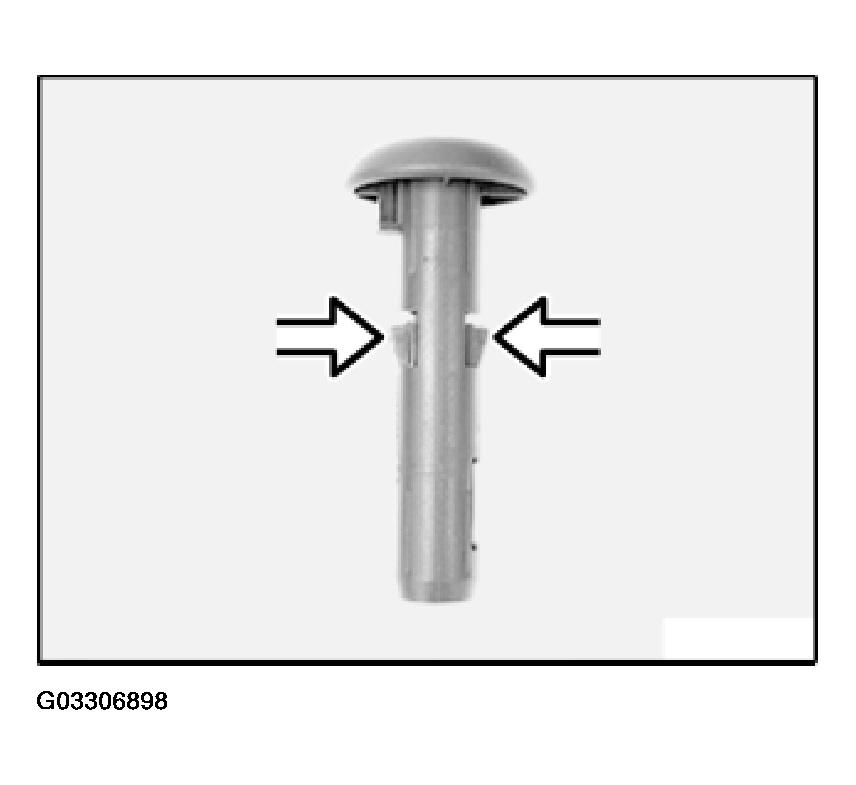

Fig 1: Pressing Retaining Lugs

Courtesy of BMW OF NORTH AMERICA, INC.

Lever welt (1) out of backrest frame.

When levering out the welt, make sure that the backrest attachment points and head restraint guides are not damaged.

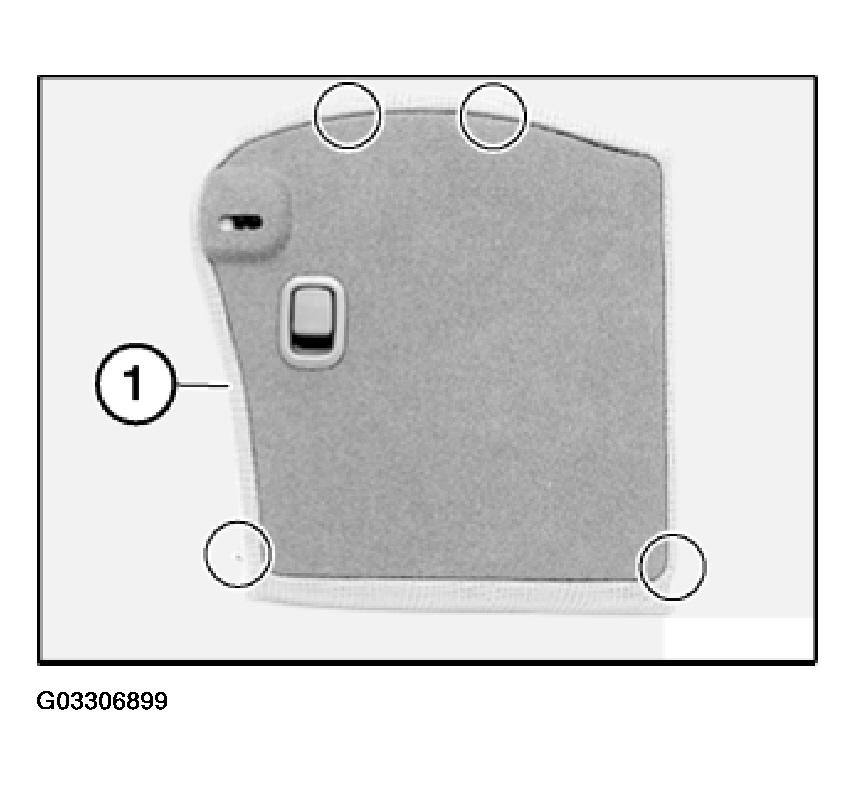

Fig 2: Removing Panel From Backrest Frame

Courtesy of BMW OF NORTH AMERICA, INC.
