52 13 043 Removing and installing/replacing outer cover (with seat height adjustment) on left or right front seat (TU)

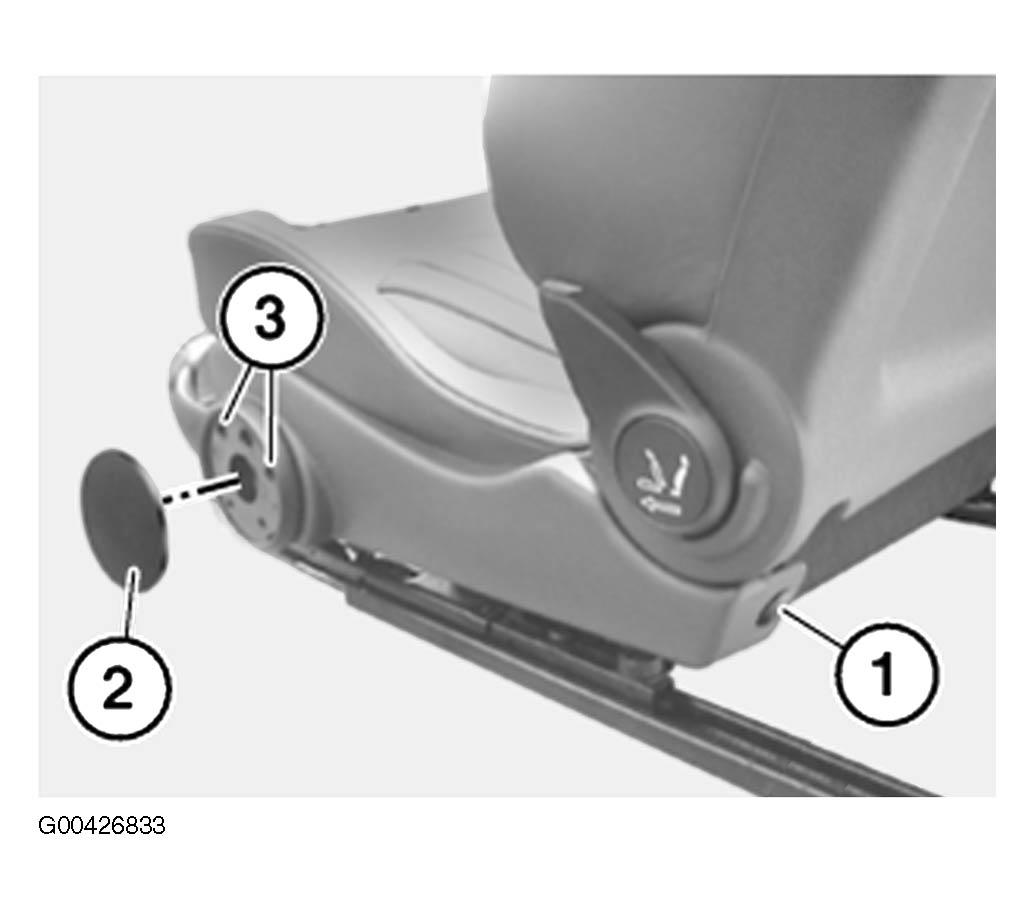

Lever out clip (1).

Installation

Replace faulty clip.

Only on seat with height adjustment:

Lever out cover (2) with plastic wedge.

Release screws (3) and remove lever.

Fig 1: Removing Outer Cover

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Shown here without cover to illustrate details better.

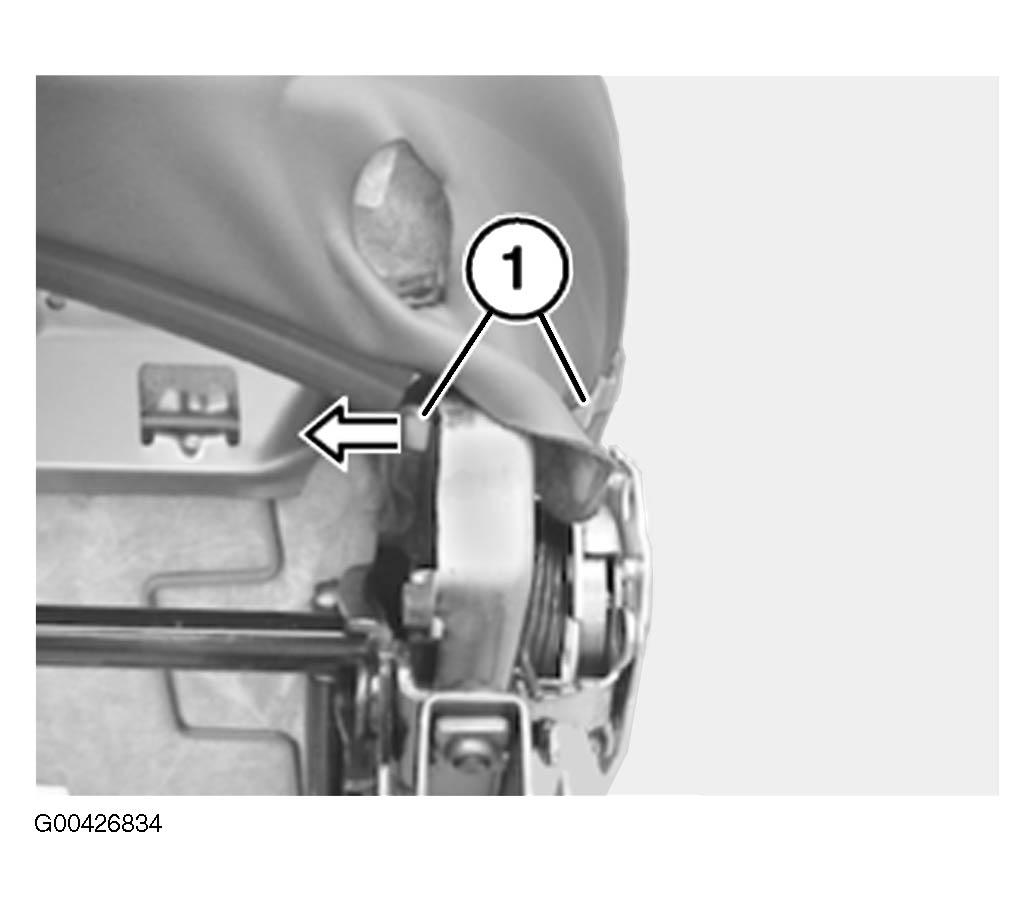

Lever additional retaining tab (1) from below out of seat frame.

Fig 2: Locating Additional Retaining Tab

Courtesy of BMW OF NORTH AMERICA, INC.

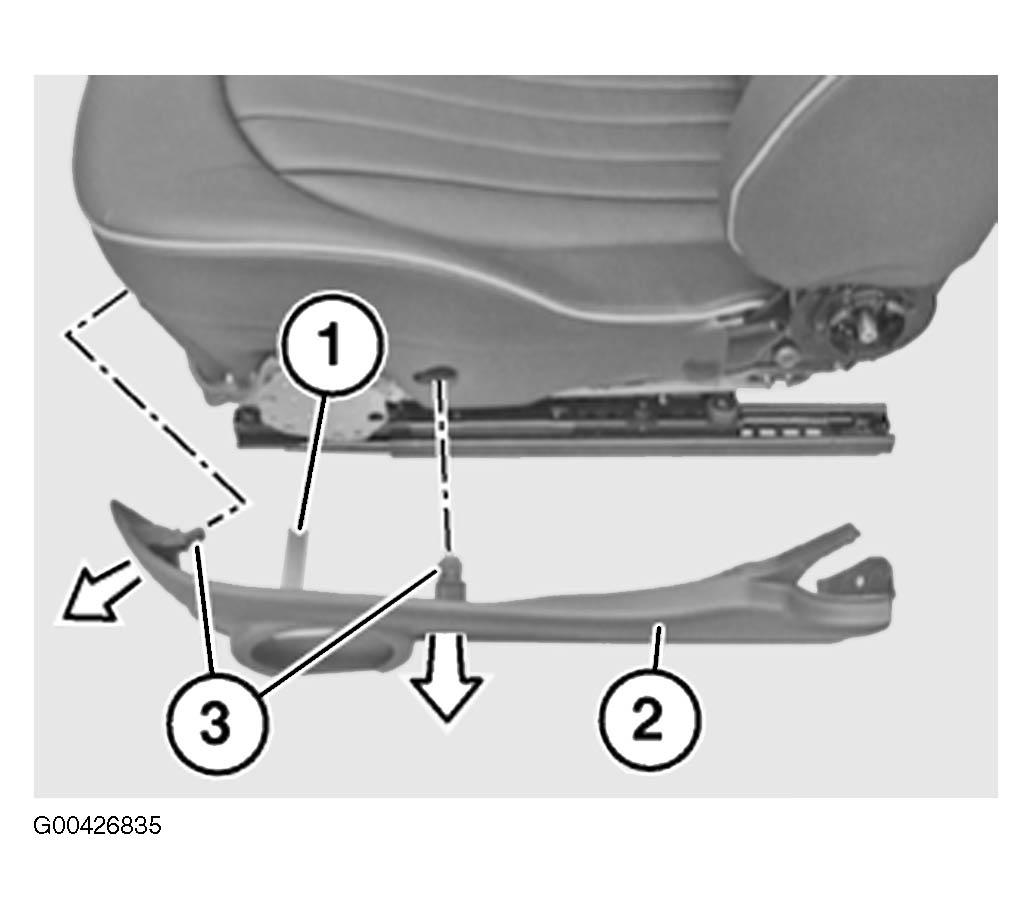

Remove cover (2) in direction of arrow.

Feed retaining tab (1) out of seat frame.

Installation

If necessary, fit retainers (3) on cover (2).

Fig 3: View Of Outer Seat Cover

Courtesy of BMW OF NORTH AMERICA, INC.

Installation

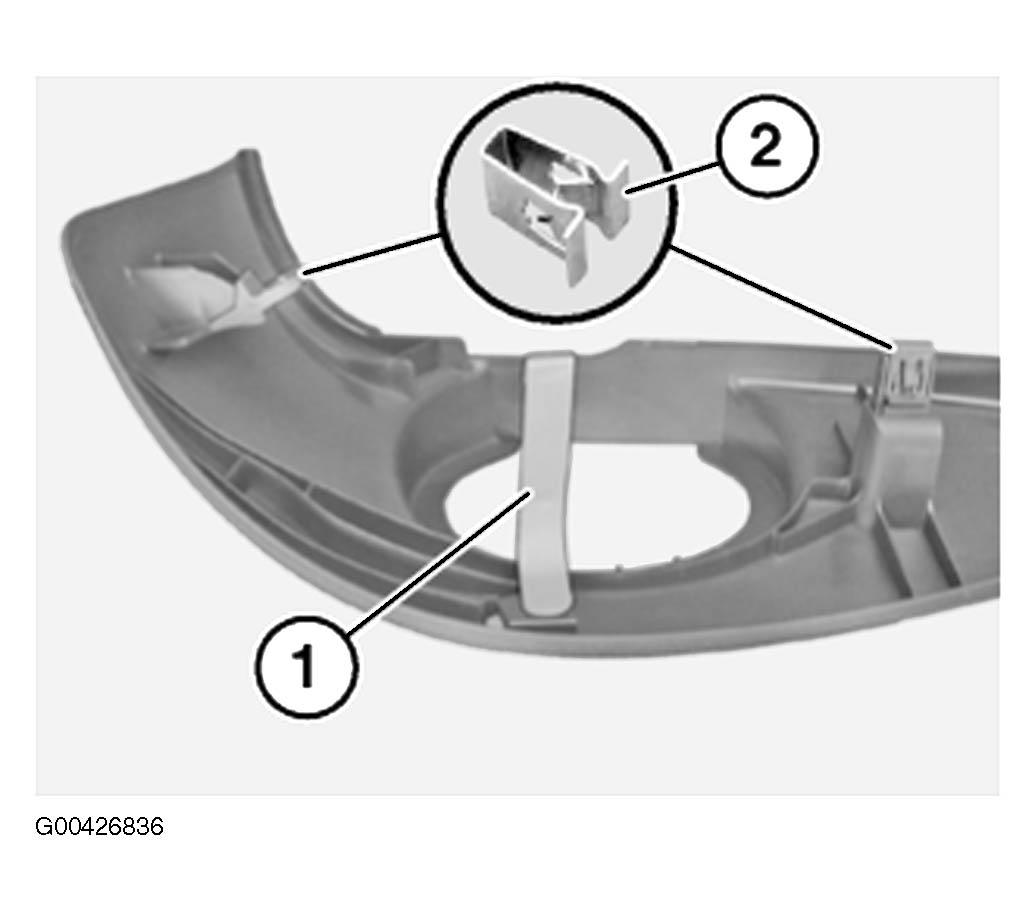

Fit cover with retaining tab (1) and retainers (2).

Fig 4: Identifying Seat Cover Retainers

Courtesy of BMW OF NORTH AMERICA, INC.
