51 16 392 Removing and installing/replacing storage compartment in instrument panel trim (driver's side)

Necessary Preliminary Tasks:

R50/R53 Up To 07/2004 Only:

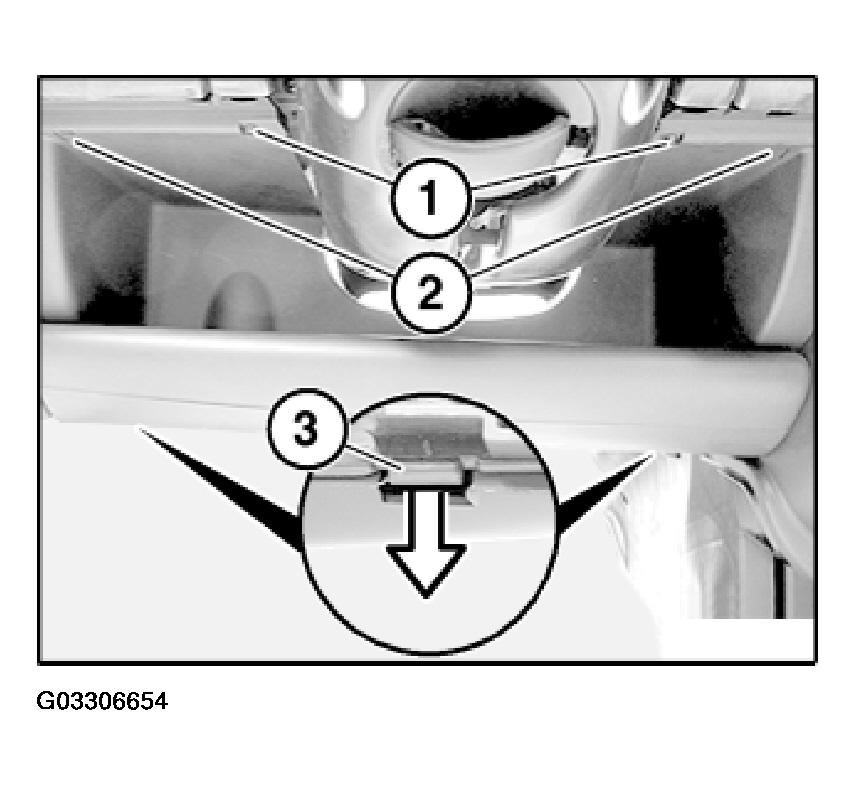

Release screws (1).

Snap clips (2 and 3) out.

Remove storage compartment from instrument panel trim.

Fig 1: Removing Storage Compartment From Instrument Panel Trim

Courtesy of BMW OF NORTH AMERICA, INC.

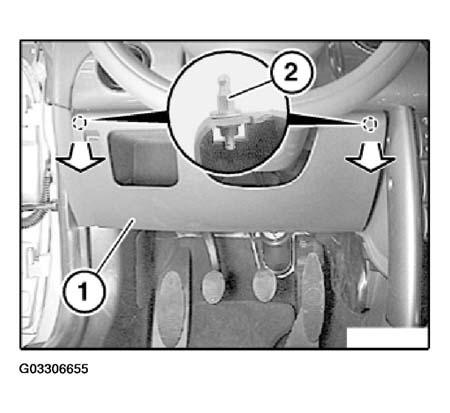

Pull out storage compartment (1) in direction of arrow from retaining points (2).

Fig 2: Pulling Out Storage Compartment

Courtesy of BMW OF NORTH AMERICA, INC.

Fold storage compartment (1) down and unclip guides (2) starting on right.

Installation:

Clips (3) must not be damaged.

If necessary, replace faulty clips (3).

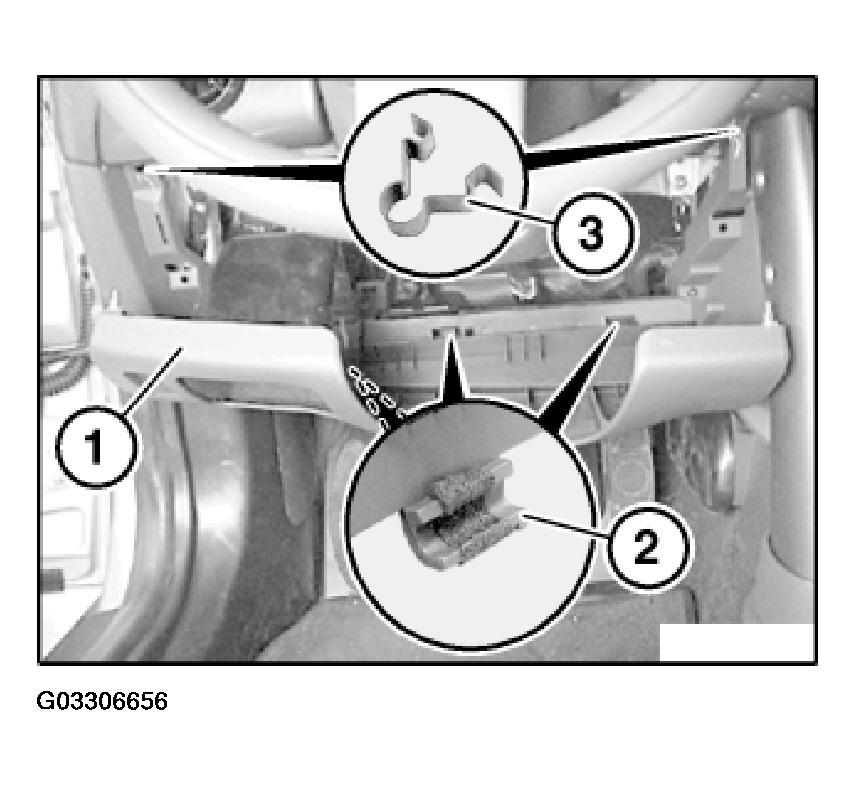

Fig 3: Identifying Storage Compartment Clips

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Locking pins (1) and guides (2) must not be damaged.

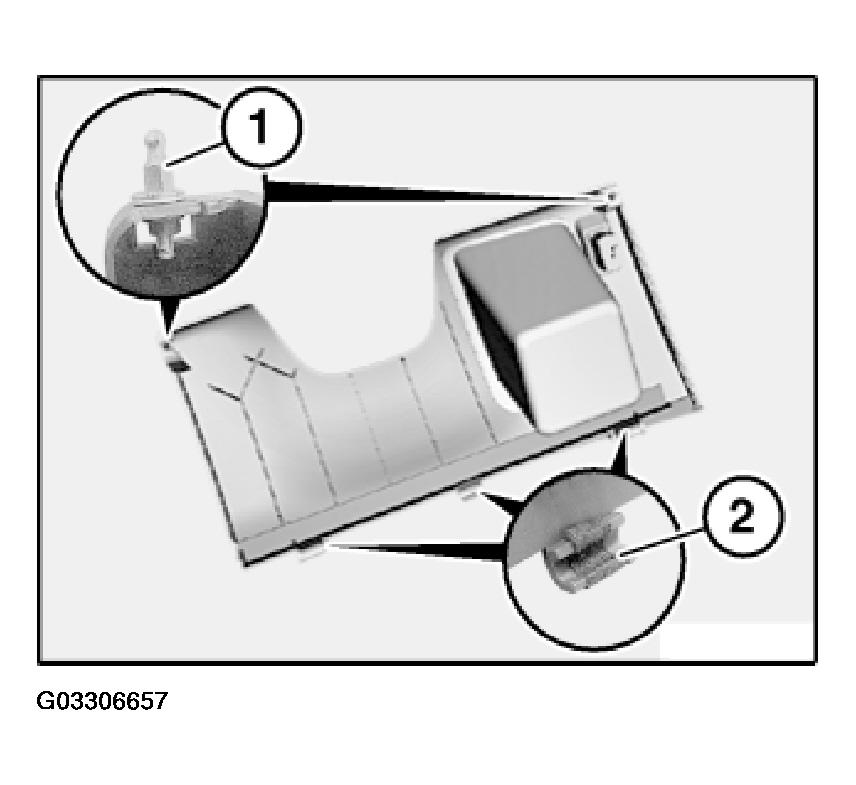

Fig 4: View Of Locking Pins And Guides

Courtesy of BMW OF NORTH AMERICA, INC.
