61 31 072 Removing and installing/replacing headlight vertical aim control switch

IMPORTANT: Do not use excessive force in the following work steps.

Lever out switch for headlight vertical aim control (1).

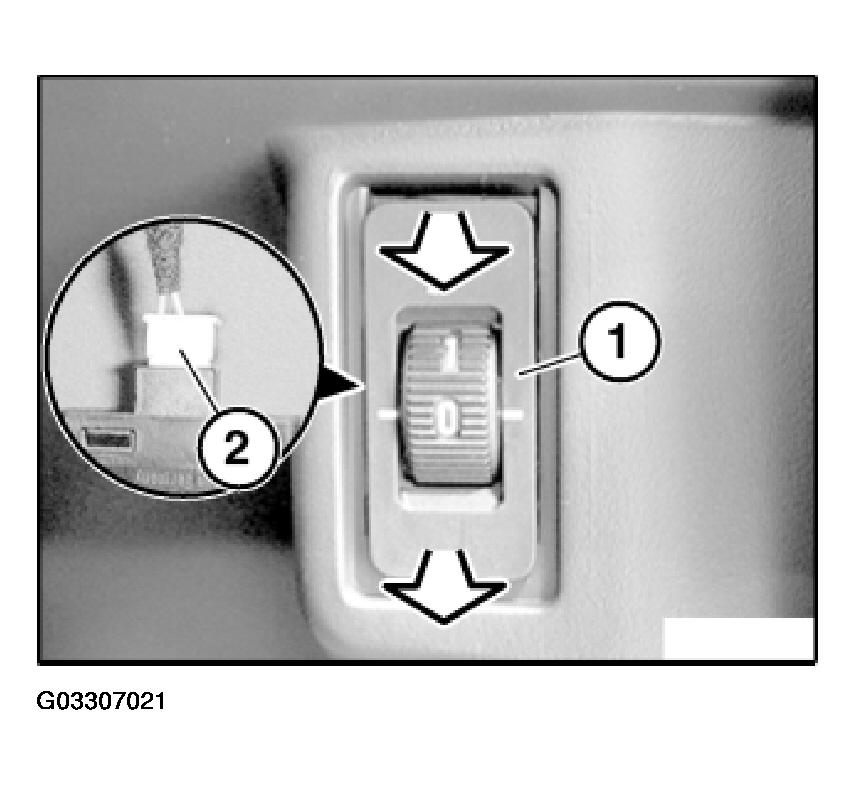

Fig 1: View Of Headlight Vertical Aim Control Switch

Courtesy of BMW OF NORTH AMERICA, INC.

Detach plug connector (2).
