13 90 500 Replacing tank venting valve

WARNING: This page is about a different variant/trim than selected.

Necessary Preliminary Tasks:

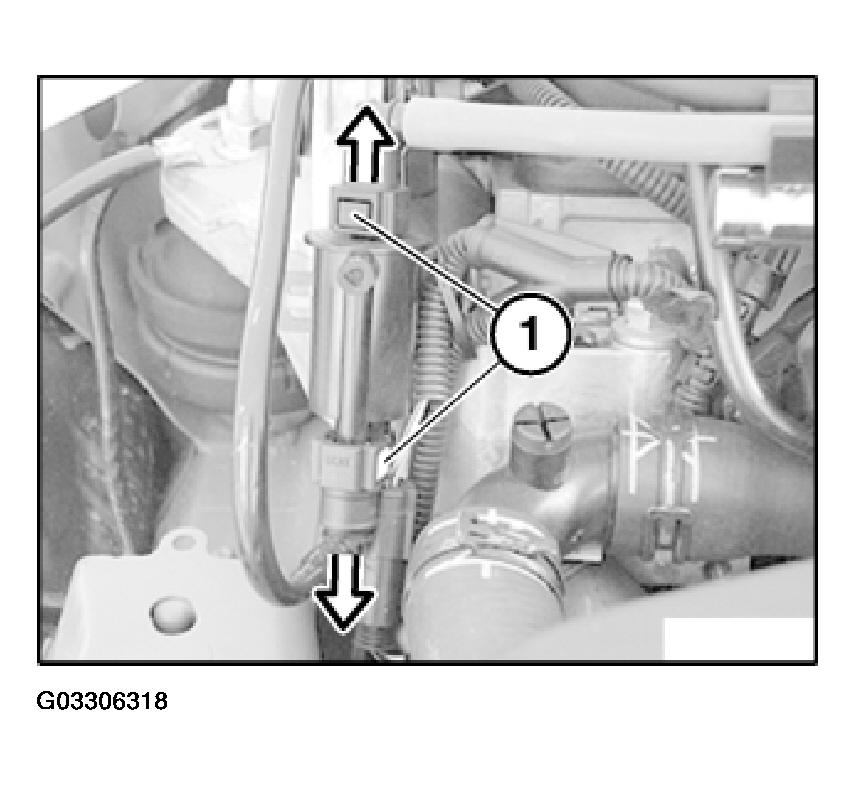

Unlock and disconnect both lines (1).

Fig 1: View Of Tank Venting Valve Lines

Courtesy of BMW OF NORTH AMERICA, INC.

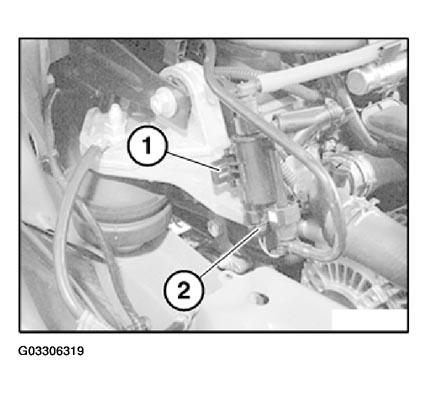

Bend locking tongue (1) straight and slide venting valve from holder.

Unlock connector (2) and remove.

Fig 2: Identifying Locking Tongue On Venting Valve

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Now clear the fault memory.
