Wheel Speed Sensor: Installation

Ensure plug connection is correctly engaged and rubber grommet correctly sealed. Clean bore hole for speed sensor and grease with Staburags NBU 12/K lubricating grease. See Fig 3 . See TORQUE SPECIFICATIONS  .

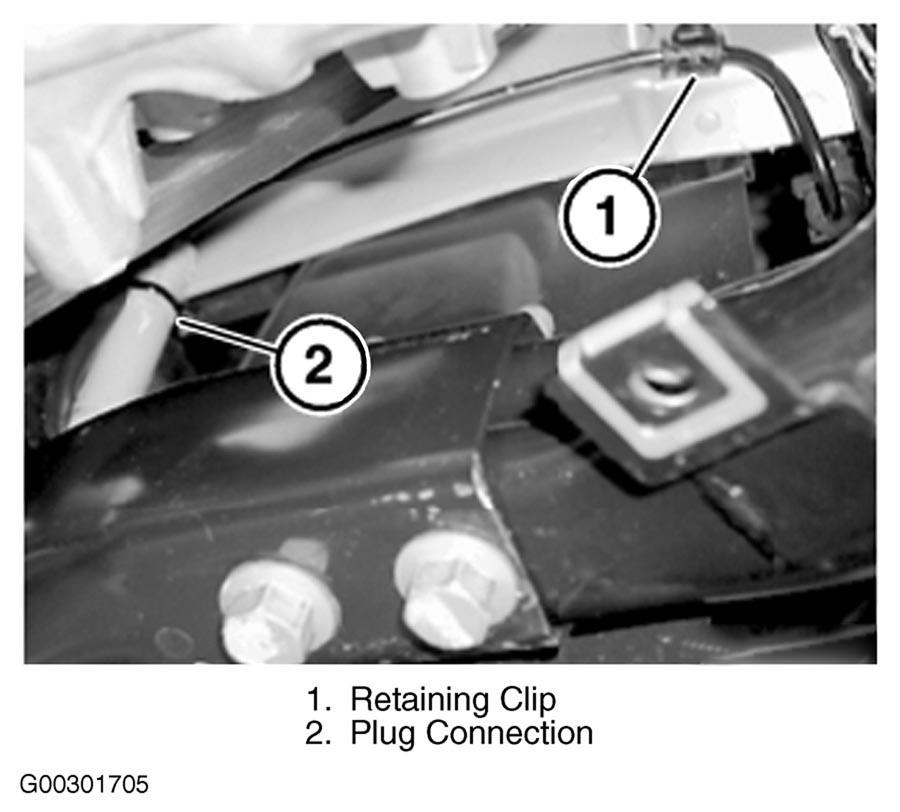

Fig 1: Removing Wheel Speed Sensor

Courtesy of BMW OF NORTH AMERICA, INC.

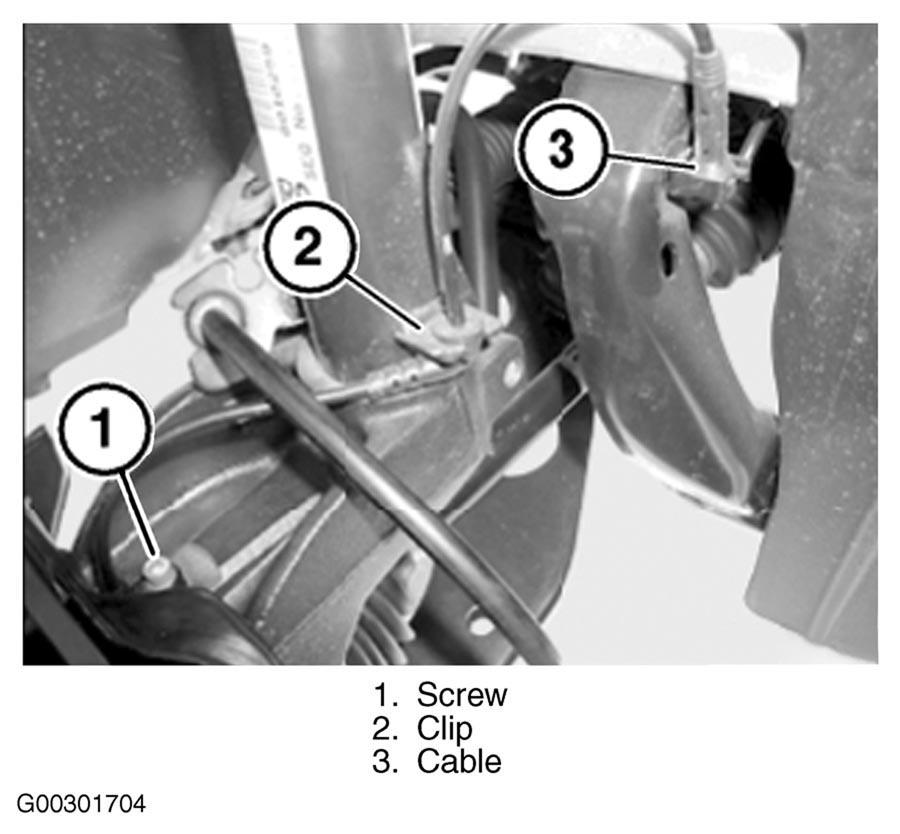

Fig 2: Removing Cable From Retaining Clip

Courtesy of BMW OF NORTH AMERICA, INC.

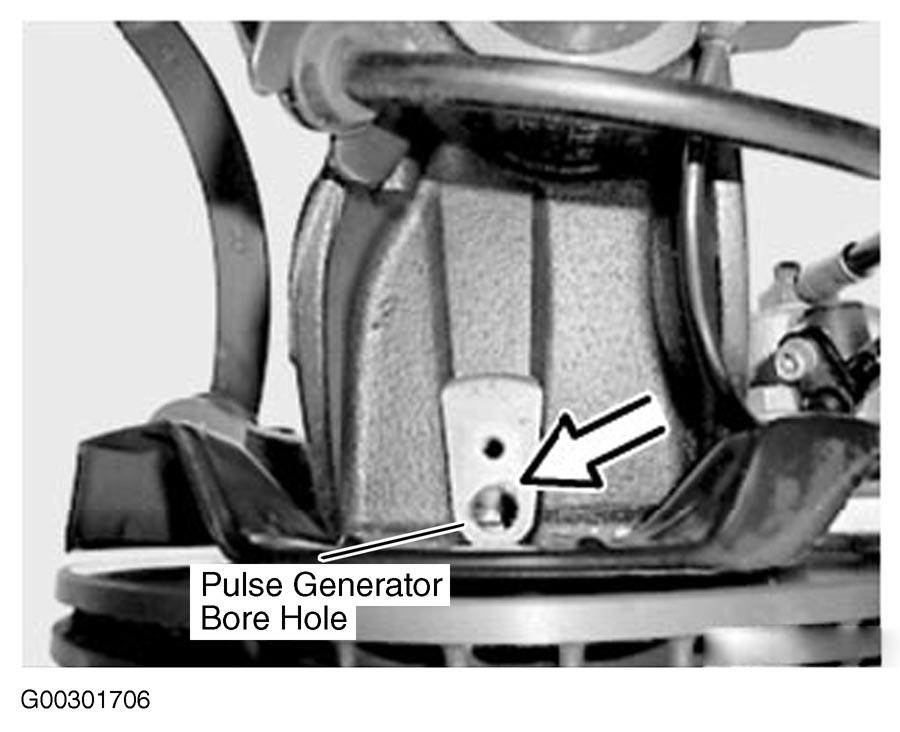

Fig 3: Identifying Speed Sensor Bore Hole

Courtesy of BMW OF NORTH AMERICA, INC.
