12 1 170 Spark plug tool
Minimum set: Mechanical tools
In conjunction with: 12 1 200.
Note: For releasing spark plugs as well as for tightening to torque limit.
Engine: M40, M42, M43, M43TU, M44, M50, M52, M60, M62, M70, M73, N40, N42, N46, N73, S14, S38, S50B30, S50B32, W10, W11.
Storage location: B13.
Order number: 12 1 170 Spark plug tool.

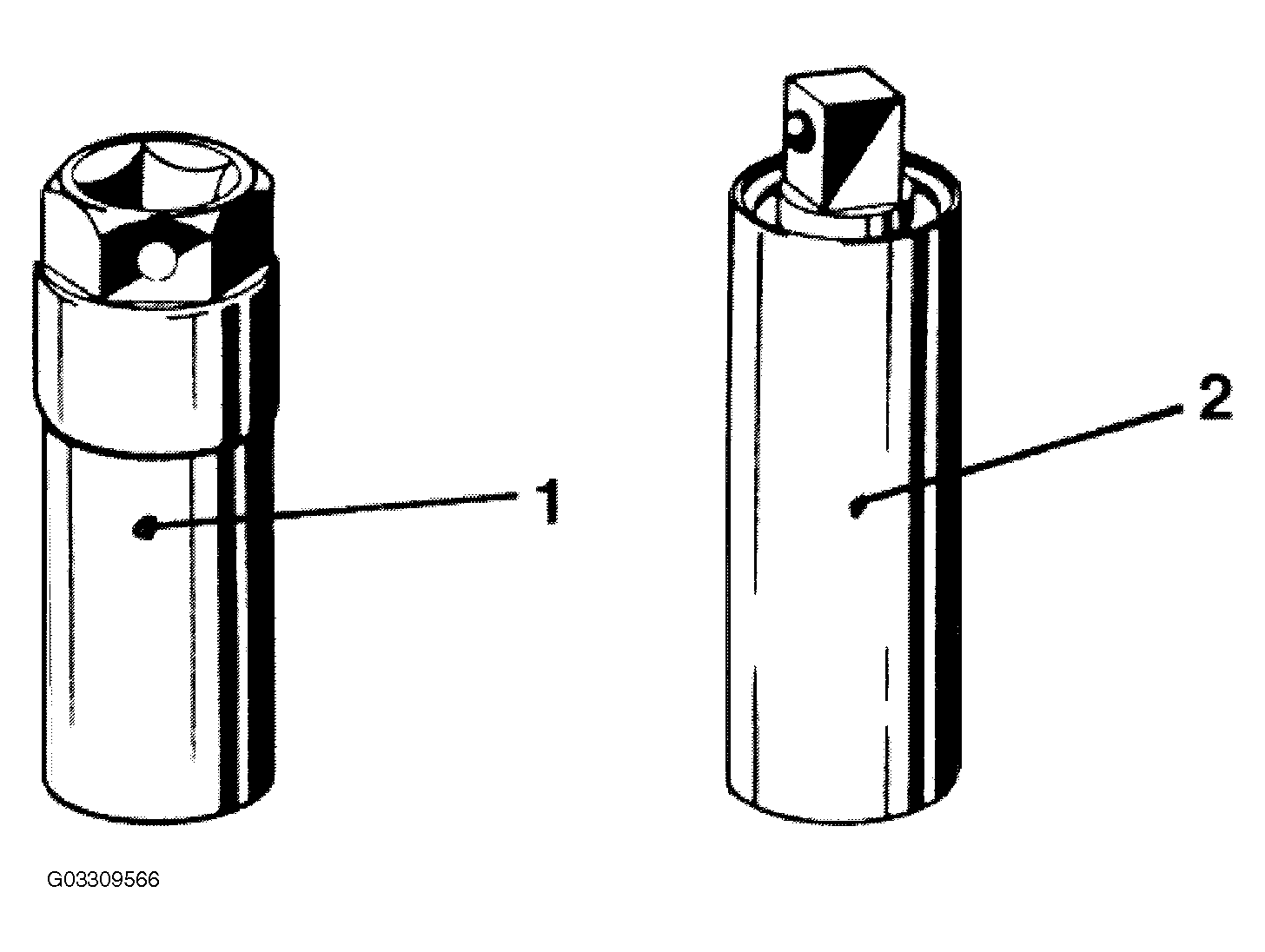

Consisting of:
- = 12 1 171 Spark plug key WAF 16 mm.
Note: S50, M40, M42, M43, M44, M50, M52, M60, M62, M70, M73, W10, W11, N40, N42, N73.
In conjunction with: 12 1 172 (S50), 12 1 200 (M40, M42, M43, M44, M50, M52, M60, M62, M70, M73, W10, W11, N73).
- = 12 1 172 Torque limiter 23 Nm +/- 3 Nm.
Note: S14, S38, S50.
In conjunction with: 12 1 171 (S50), 12 1 160 (S14, S38).
