Disc Pads (Rear): Installation

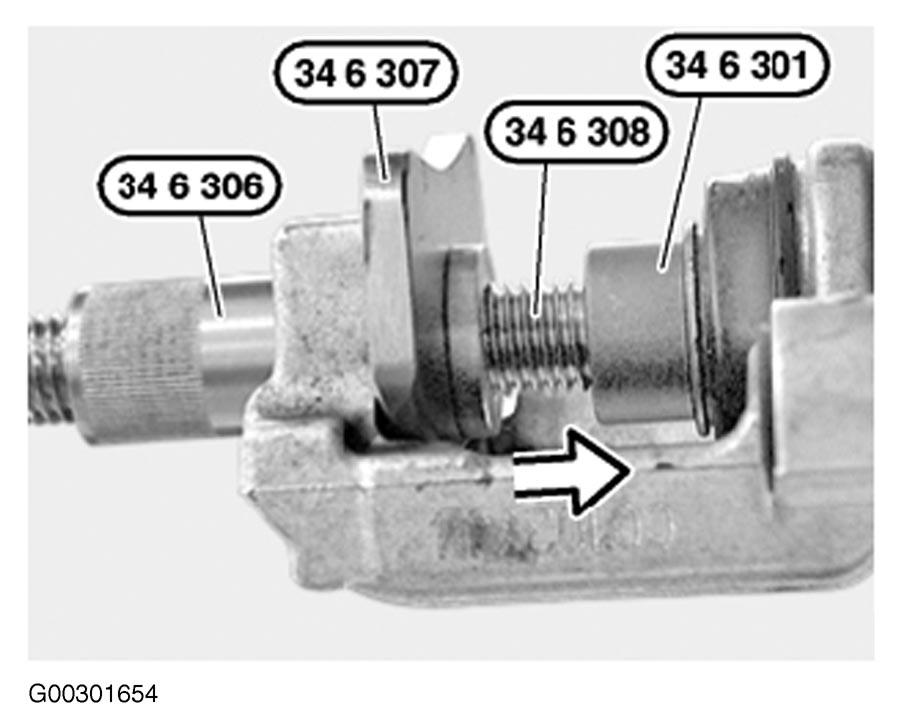

Using Special Tools (346306, 346307, 346308 and 346301), install brake piston in brake caliper. See Figure. Attach retaining spring first at bottom and then at top. Ensure brake pad is fitted correctly in piston groove. See Fig 1. See TORQUE SPECIFICATIONS .

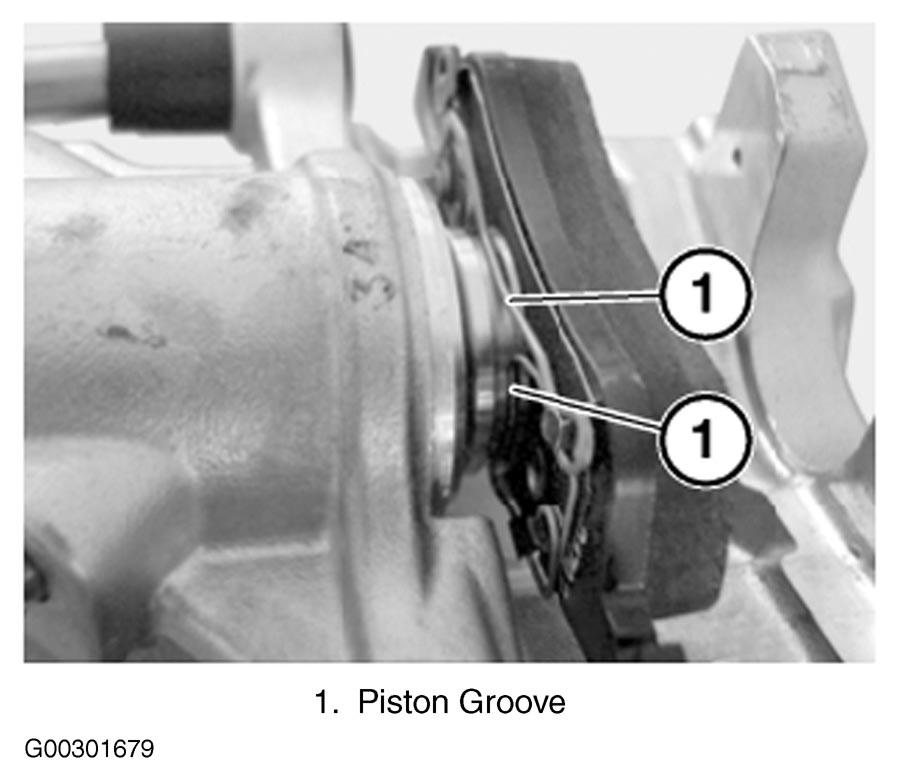

Fig 1: Installing Brake Pad In Piston Groove

Courtesy of BMW OF NORTH AMERICA, INC.
