61 4 370 V-adapter lead (2-pin), zero-coded

Minimum set: Measuring and testing equipment

Note: Can be used on different plug housings in engine wiring harness (e.g. from Kostal - "SLK 2.8", Tyco - "Junior-Power-Timer" or Bosch) with different codings.

Series: E34, E34tou, E36, E36/2, E36/3, E36/5, E36/7, E36/C, E36tou, E38, E38/3, E39, E39PL, E39tou, E46, E46/16, E46/2, E46/3, E46/5, E46/C, E52, E53, E60, E61, E63, E64, E65, E66, E67, E83, E85, E87, E90, E91, R50, R52, R53, RR1.

SI number: 02 01 05 (186).

Order number: 61 4 370  .

V-adapter lead (2-pin), zero-coded

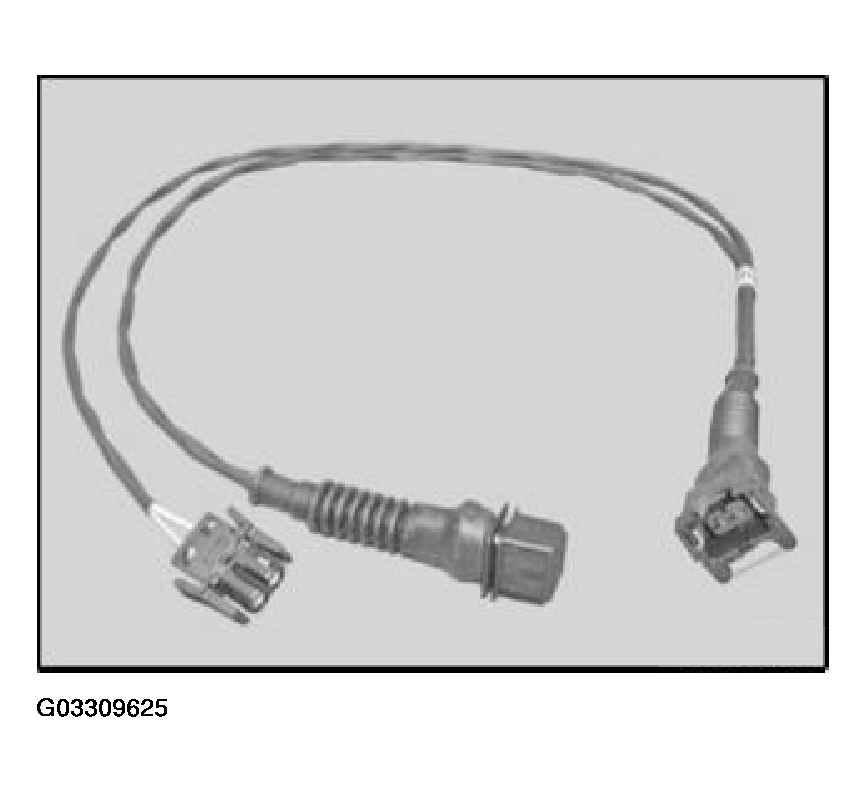

Fig 1: Identifying Special Tool 61 4 370 V-Adapter Lead (2-Pin), Zero-Coded
G03309625Courtesy of BMW OF NORTH AMERICA, INC.
