61 31 020 Removing and installing/replacing ignition starter switch

Necessary Preliminary Tasks:

• Disconnect battery negative lead. Refer to 12 00 DISCONNECTING AND CONNECTING BATTERY .

Release screws (1).

Withdraw ignition starter switch.

Disconnect plug connection (2) and remove ignition starter switch.

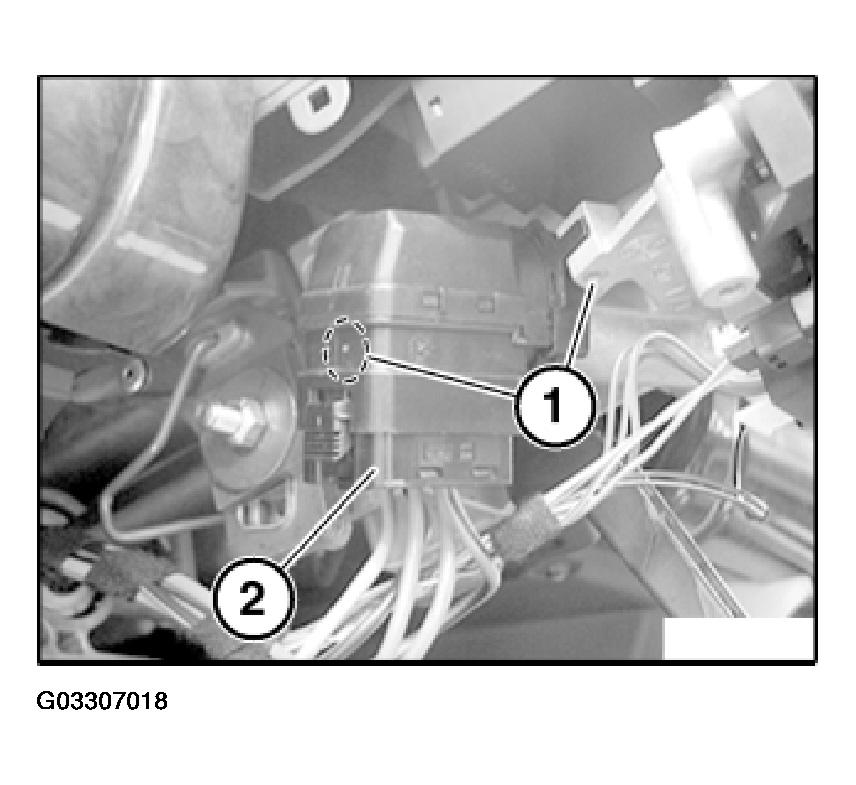

Fig 1: Locating Ignition Starter Switch Retaining Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Check alignment of ignition starter switch to steering wheel lock.

Check alignment of turn indicator lever to steering wheel.

Secure screws with paint.
