Rear Quarter Trim

The rear quarter trim is of a one piece molded design which incorporate the following components:

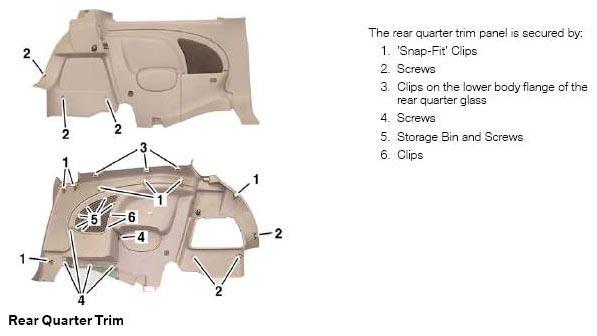

Fig 1: Rear Quarter Trim
G04730335Courtesy of BMW OF NORTH AMERICA, INC.
