C Pillar Trim

The C post trim is secured directly to the body C post by four `snap-fit' clips (1). Two of the clips (1a) include retaining straps. These straps retain the trim to the body in the event of AHPS deployment. This trim MUST  be replaced whenever removed.

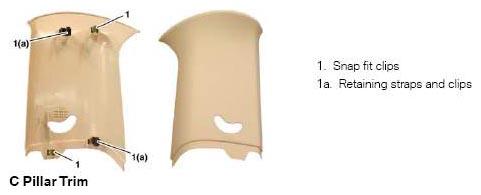

Fig 1: C Pillar Trim
G04730334Courtesy of BMW OF NORTH AMERICA, INC.
