B Pillar Trim

The B post trim is secured directly to the body B post by an upper retaining tab (1) and a single screw at the base of the B post trim (2). To remove the B post trim, you should first remove the quarter panel trim in order to properly remove the screw (2).

The B post trim also incorporates the front seat belt height adjuster trim. No part of the adjuster trim is serviceable separately. Unlike the A post and C post trim pieces, the B post trim may be utilized more than once.

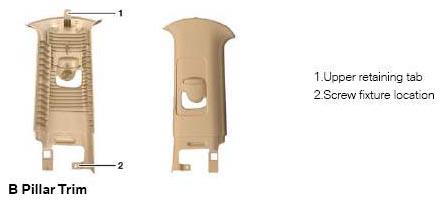

Fig 1: B Pillar Trim
G04730333Courtesy of BMW OF NORTH AMERICA, INC.
