A Pillar/Sill Trim

The one piece A post lower trim/ door sill trim is secured by seven trim studs along its full length and a single trim stud securing the front edge to the body bulkhead.

This trim also incorporates the following:

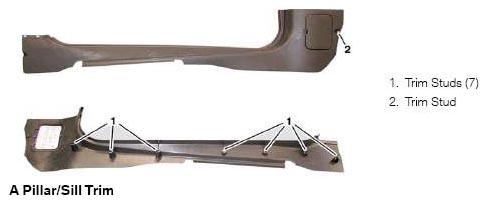

Fig 1: A Pillar/Sill Trim
G04730332Courtesy of BMW OF NORTH AMERICA, INC.
