12 13 513 Replacing ignition coil

Necessary preliminary tasks:

• Switch off ignition
• Read out fault memory of DME control unit
• Check stored fault messages

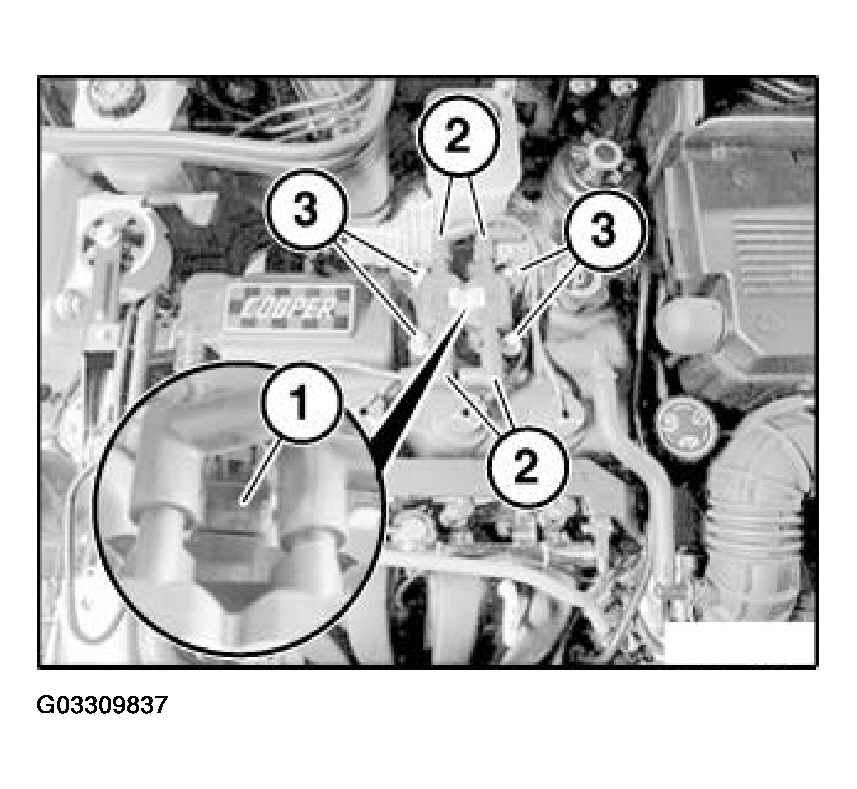

Unlock plug (1) and remove.

Detach ignition cable (2) from ignition coil.

Release screws (3).

Installation:

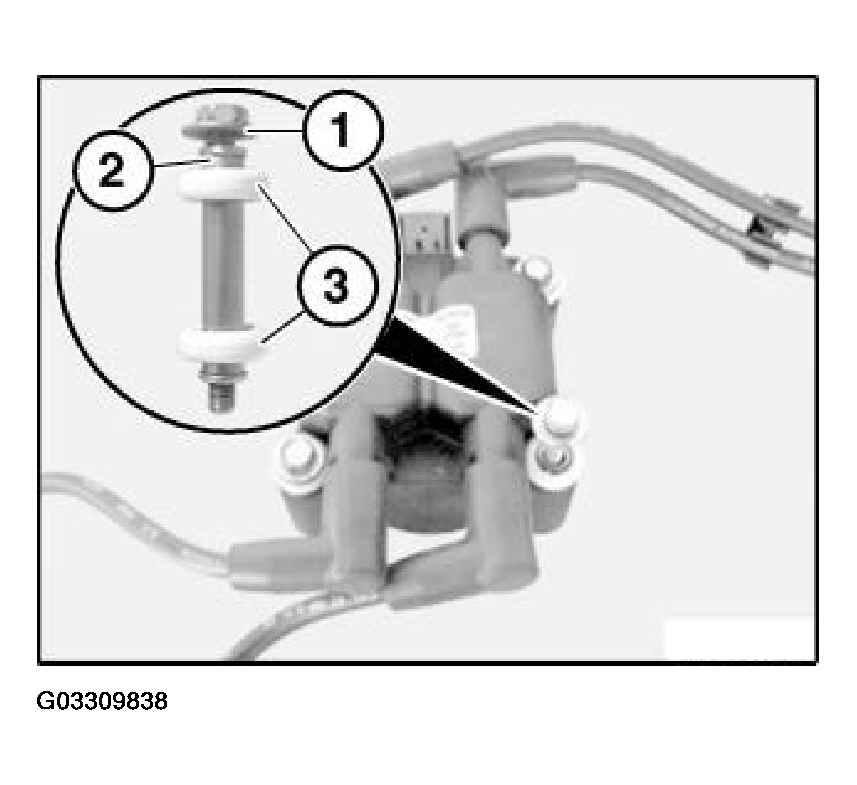

Screw (1) and spacer tube (2) are only available as a single set.

Check insulating rings (3), replace if necessary.

Tightening torque 12 13 1AZ. Refer to ENGINE ELECTRICAL SYSTEM - TIGHTENING TORQUES .
