12 14 651 Replacing manifold absolute pressure sensor (COOPER S)

NOTE: Read out fault memory of EMS/DME control module, check stored fault memory, rectify faults, clear fault memory.

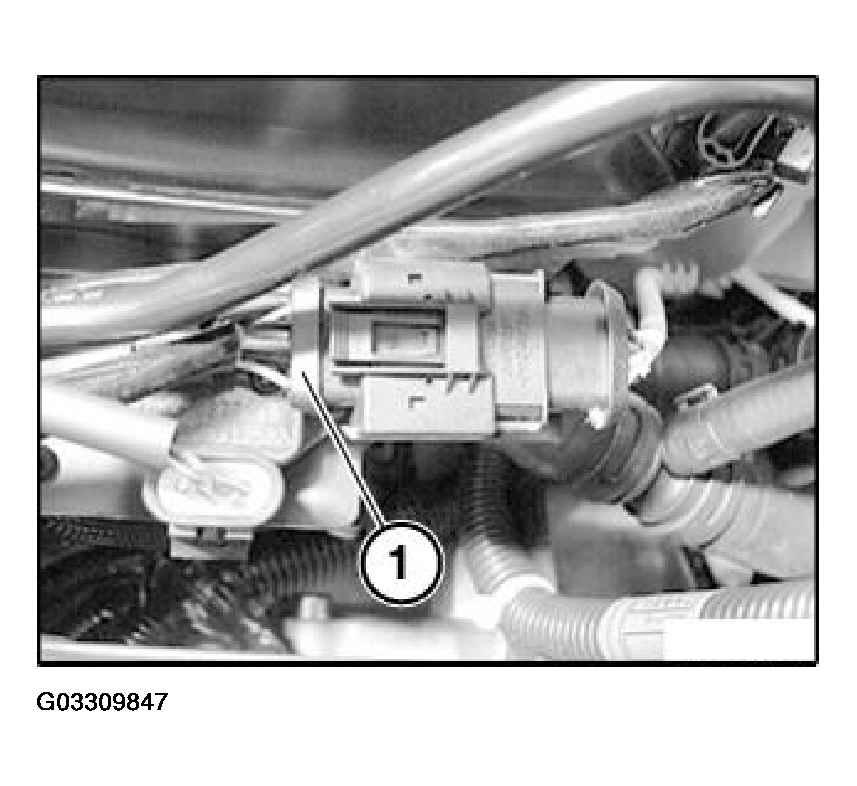

Disconnect oxygen sensor connector (1).

Fig 1: Disconnecting Oxygen Sensor Connector

Courtesy of BMW OF NORTH AMERICA, INC.

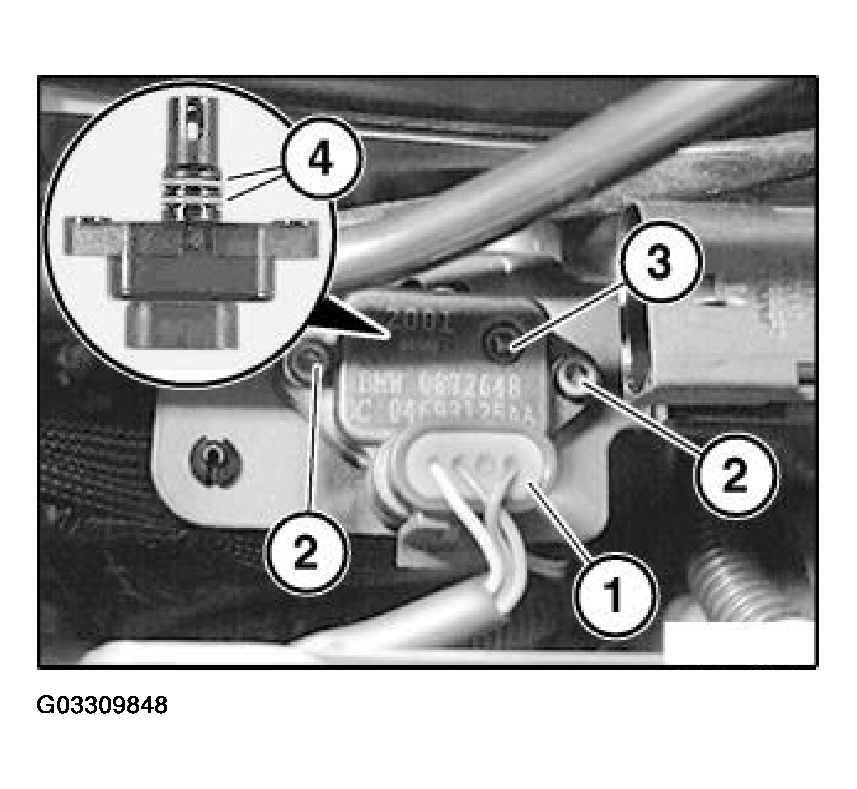

Disconnect MAP sensor connector (1).

Fig 2: Disconnecting Map Sensor Connector

Courtesy of BMW OF NORTH AMERICA, INC.

Remove MAP sensor retaining screws (2) and remove sensor (3).

Replace O -ring (4).

Tightening torque 13 62 4AZ. Refer to FUEL SUPPLY SYSTEM - TIGHTENING TORQUES .

NOTE: Read out fault memory of EMS/DME control module, check stored fault memory, rectify faults, clear fault memory.
