12 14 650 Replacing temperature and manifold absolute pressure sensor (COOPER S)

NOTE: Read out fault memory of EMS/DME control module, check stored fault memory, rectify faults, clear fault memory.

Turn off ignition.

Disconnect connector from TMAP sensor (1).

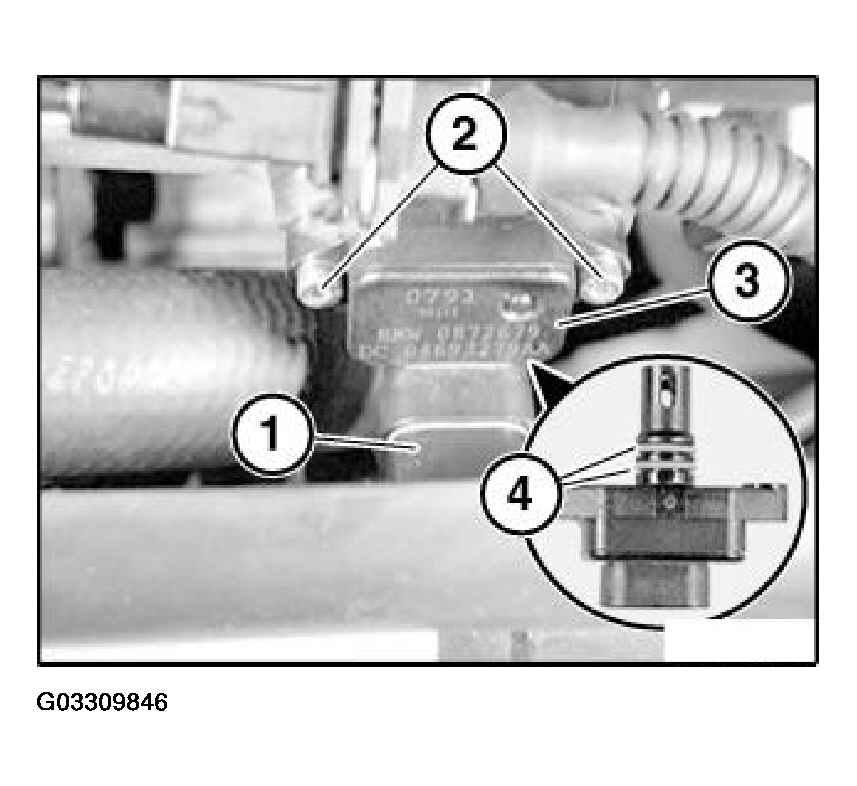

Fig 1: Removing Sensor

Courtesy of BMW OF NORTH AMERICA, INC.

Remove screws (2) and remove sensor (3). Replace O -rings (4).

Tightening torque 13 62 3AZ. Refer to FUEL SUPPLY SYSTEM - TIGHTENING TORQUES .

NOTE: Read out fault memory of EMS/DME control module, check stored fault memory, rectify faults, clear fault memory.
