12 31 009 Checking alternator and regulator switch

Test requirements:

Connect DIS Tester.

If charge indicator lamp is permanently lit:

Remove voltage regulator and check carbon brushes, replace if necessary.

Replace alternator regulator switch.

NOTE: Minimum length of carbon brushes "A" = 5 mm.

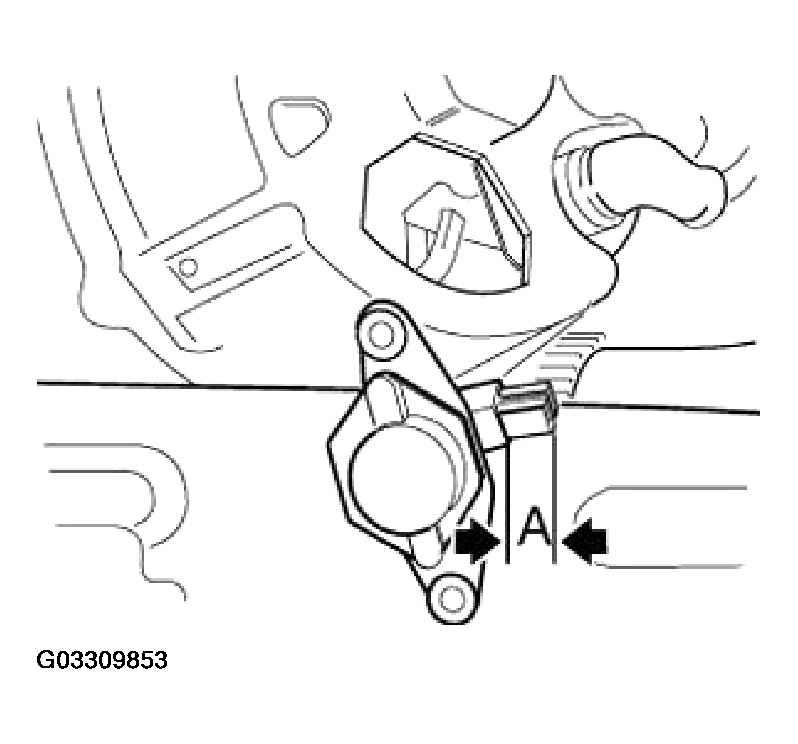

Fig 1: Identifying Length Of Carbon Brushes

Courtesy of BMW OF NORTH AMERICA, INC.

If charge indicator lamp goes out while engine is running:

Check control voltage.

Regulator switch must be replaced if control voltage is not achieved.

Replace alternator regulator switch.

From E46/E39 with multifunction regulator.

Recognizable by plug connection on regulator.

Connect DIS Tester.

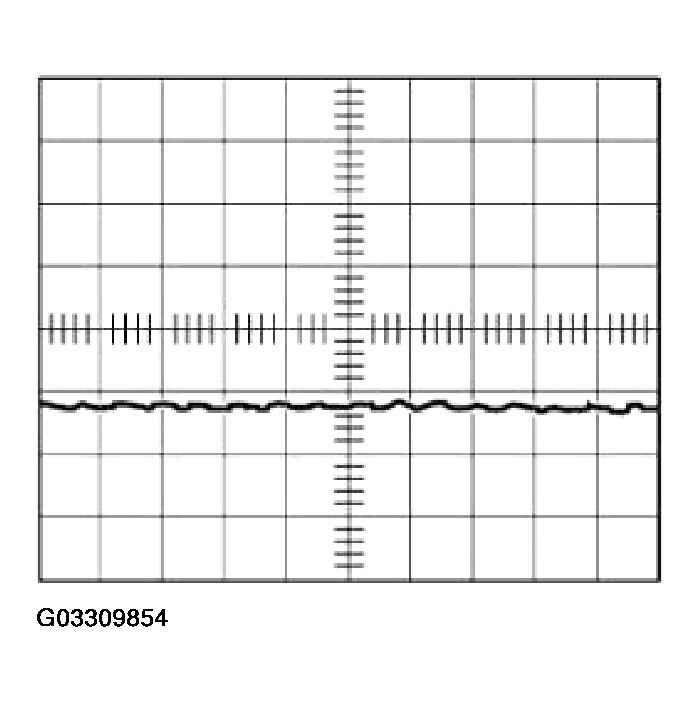

Oscillogram for a fault -free alternator:

Fig 2: Identifying Oscillogram For A Fault -Free Alternator

Courtesy of BMW OF NORTH AMERICA, INC.

Oscillogram for a faulty alternator:

One phase interrupted.

Repair/exchange alternator.

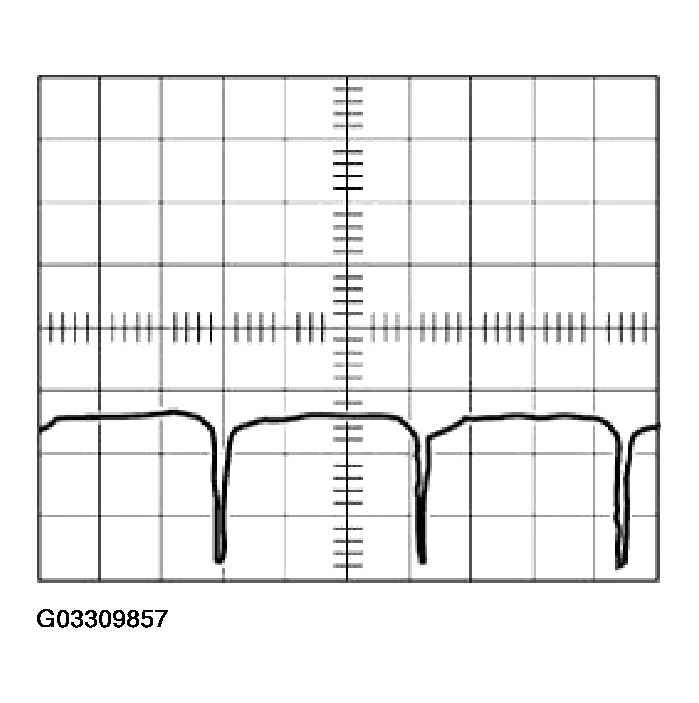

Fig 3: Identifying Oscillogram For One Phase Interrupted

Courtesy of BMW OF NORTH AMERICA, INC.

Interturn fault.

Repair/exchange alternator.

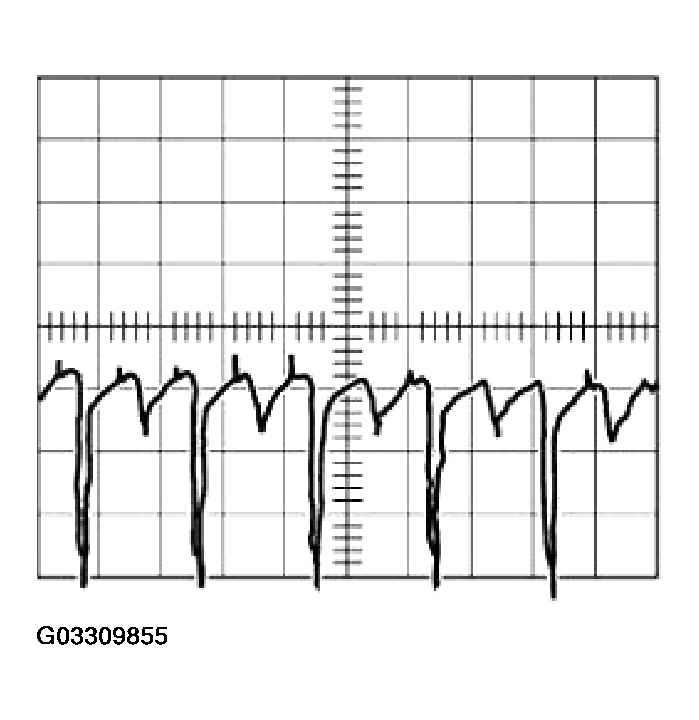

Fig 4: Identifying Oscillogram For Interturn Fault

Courtesy of BMW OF NORTH AMERICA, INC.

Open circuit in negative diode.

Repair/exchange alternator.

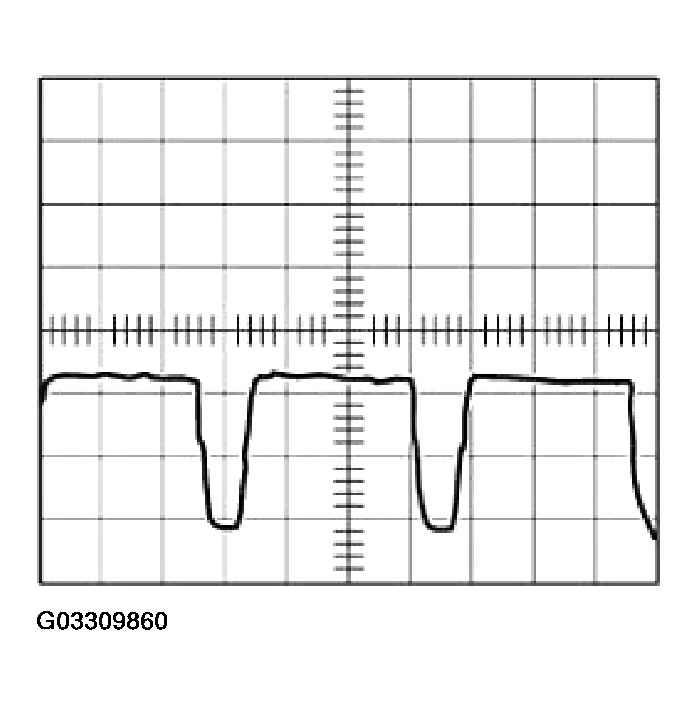

Fig 5: Identifying Oscillogram For Open Circuit In Negative Diode

Courtesy of BMW OF NORTH AMERICA, INC.

Short circuit in positive diode.

Repair/exchange alternator.

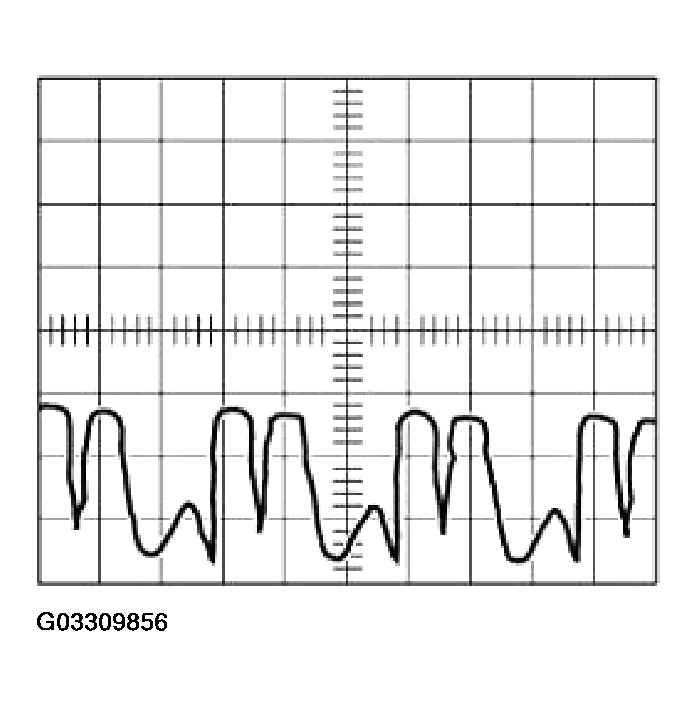

Fig 6: Identifying Oscillogram For Short Circuit In Positive Diode

Courtesy of BMW OF NORTH AMERICA, INC.

Open circuit in positive diode.

Repair/exchange alternator.

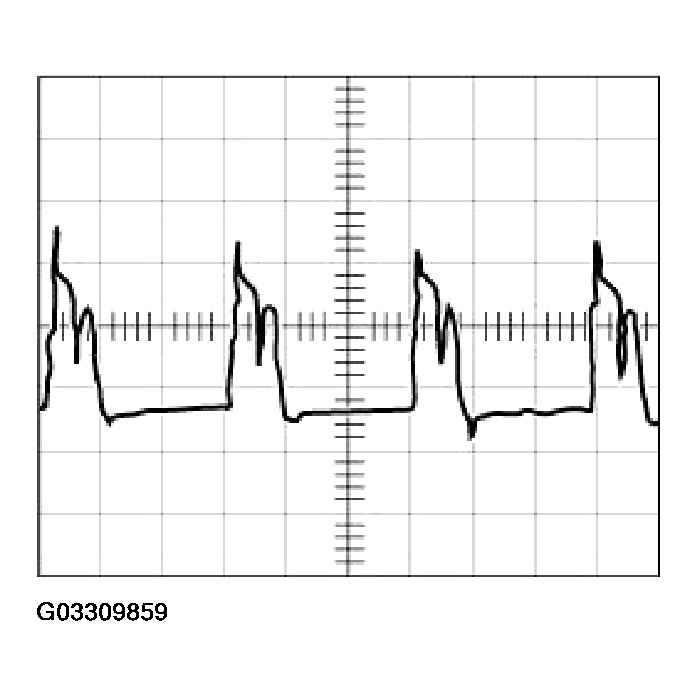

Fig 7: Identifying Oscillogram For Open Circuit In Positive Diode

Courtesy of BMW OF NORTH AMERICA, INC.

Open circuit in exciter diode.

Repair/exchange alternator.

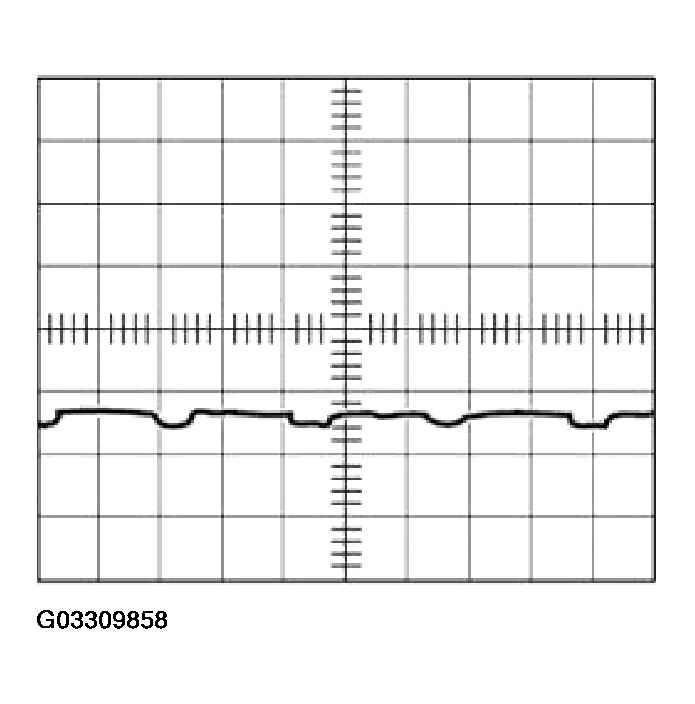

Fig 8: Identifying Oscillogram For Open Circuit In Exciter Diode

Courtesy of BMW OF NORTH AMERICA, INC.
