51 11 152 Removing and installing/replacing lower spoiler of front bumper
Remove front bumper trim. Refer to 51 11 156 REMOVING AND INSTALLING FRONT BUMPER TRIM .
Partially release side trims of front bumper. Refer to 51 11 150 REMOVING AND INSTALLING/REPLACING SIDE TRIM (WITHOUT SIDE-MARKER LAMP) OF FRONT BUMPER .
Partially detach grille of front bumper. Refer to 51 11 180 REMOVING AND INSTALLING/REPLACING GRILLE OF BUMPER TRIM .
IMPORTANT:
When releasing the retaining clips, only press on the area next to each clip in each case.

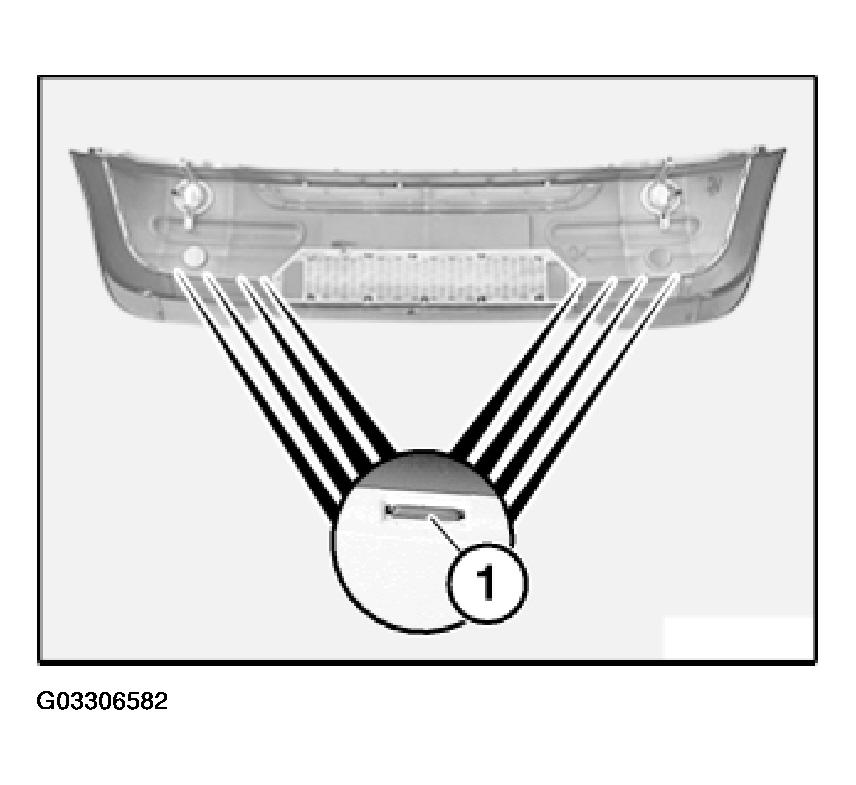

Detach retaining clips (1) for lower spoiler of front bumper from front bumper.
