52 26 ... Replacing seat frame for rear seat

Necessary Preliminary Tasks:

• Remove rear seat. Refer to 52 26 005 REMOVING AND INSTALLING OR REPLACING REAR SEAT .

Detach clips (1) from seat frame (2).

Remove seat frame (2).

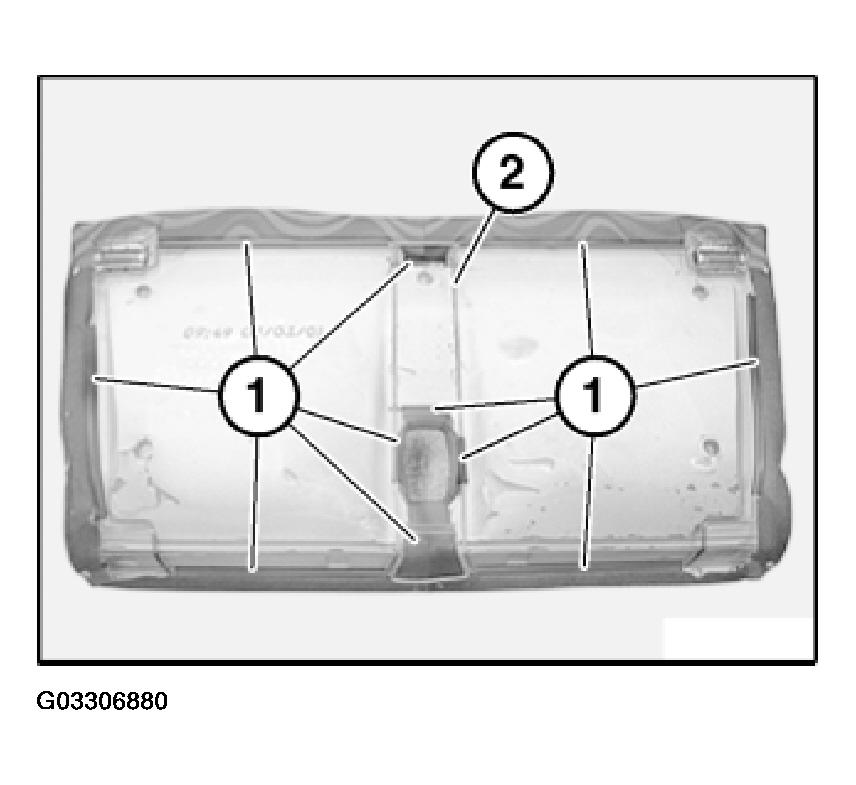

Fig 1: Identifying Clips In Frame

Courtesy of BMW OF NORTH AMERICA, INC.
