61 61 270 Removing and installing complete wiper console
Remove cowl panel cover.

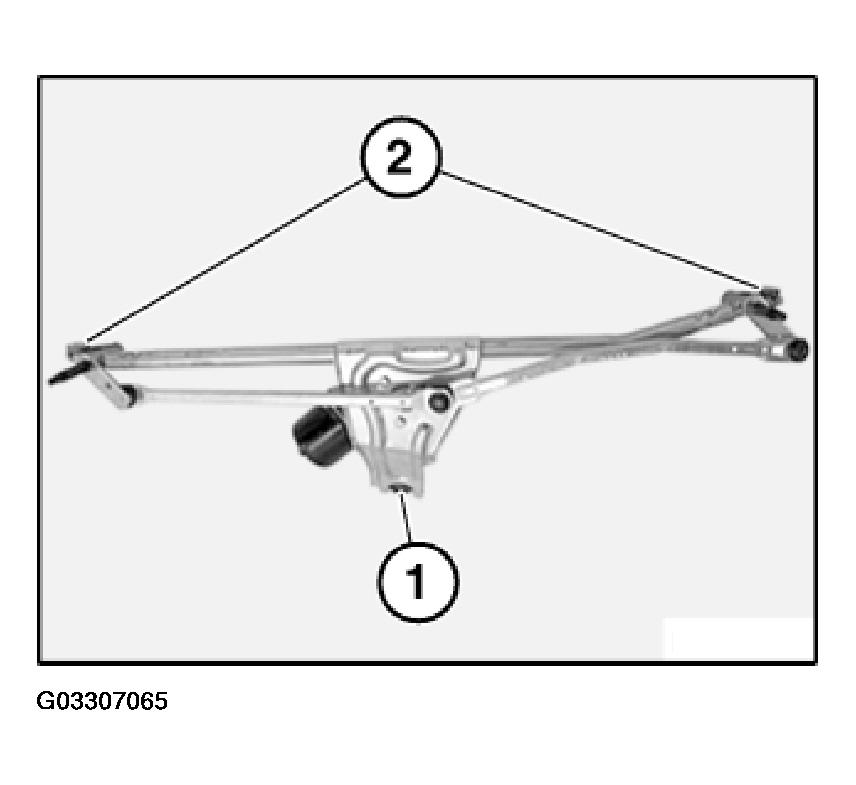

Release nut (1).
Installation:
Make sure holder is correctly positioned in relation to grommet.
Remove screws (2).
Installation: (All Fastenings):
Tightening torque, refer to 61 61 2AZ in GENERAL ELECTRICAL SYSTEM - TIGHTENING TORQUE - COOPER (1.6L) R50/W10 .
Disconnect plug connector from engine and remove wipe mechanism/engine.
