61 6 100 Angulometer

Minimum set: Measuring and testing equipment

Note: For measuring contact/approach angle of wiper blades to window (angle when setting wiper arms).

Series: E36, E39, E46, E52, E53, E60, E61, E63, E64, E65, E66, E67, E70, E83, E85, E87, E90, E91, R50, R52, R53.

SI number: 1 21 05 (220).

Order number: 61 6 100.

Angulometer.

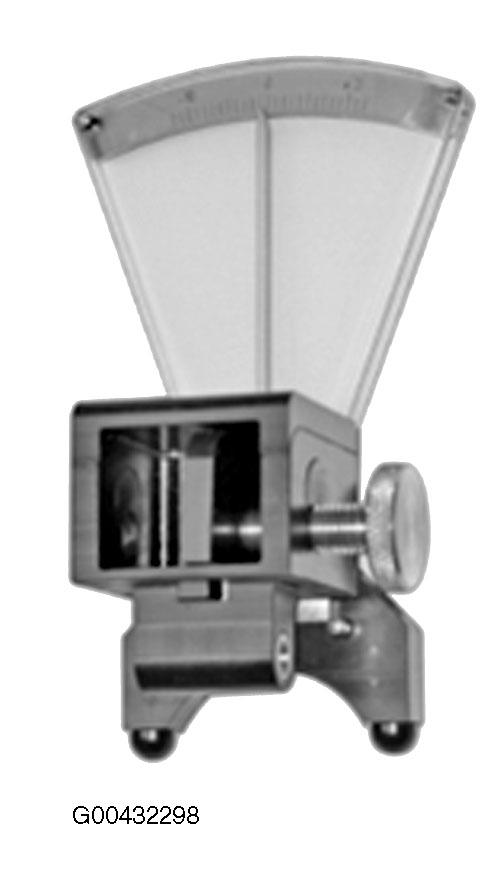

Fig 1: Identifying Special Tool 61 6 100 Angulometer

Courtesy of BMW OF NORTH AMERICA, INC.
