Removal & Installation

Remove rear brake pads. See DISC PADS (REAR) . Remove existing dust sleeve. To install, reverse removal procedure. Install inner lip of new dust sleeve in position on piston. See Fig 1. Using Special Tools (346303, 346304 and 346305) to arrange outer lip of new dust sleeve in position. See Fig 2.

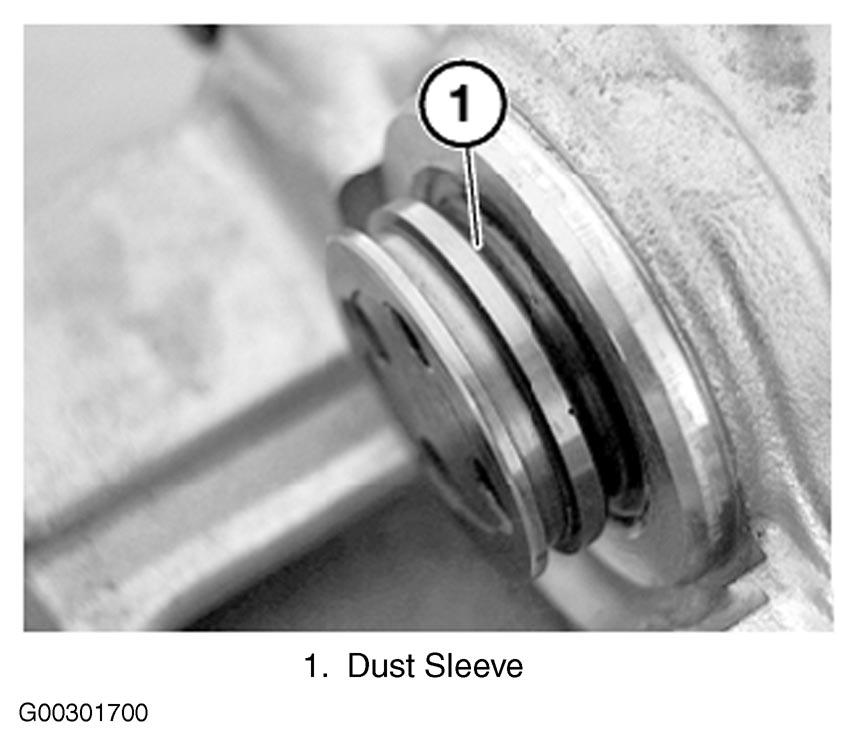

Fig 1: Installing Inner Lip Of New Dust Sleeve In Position

Courtesy of BMW OF NORTH AMERICA, INC.

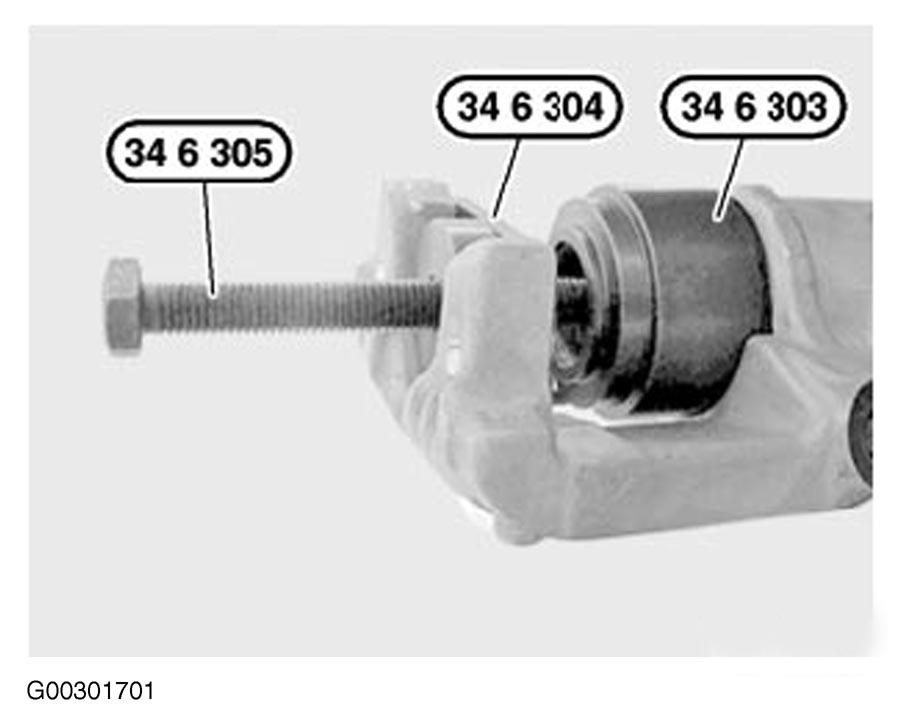

Fig 2: Installing Outer Lip Of New Dust Sleeve In Position

Courtesy of BMW OF NORTH AMERICA, INC.
