Removal & Installation

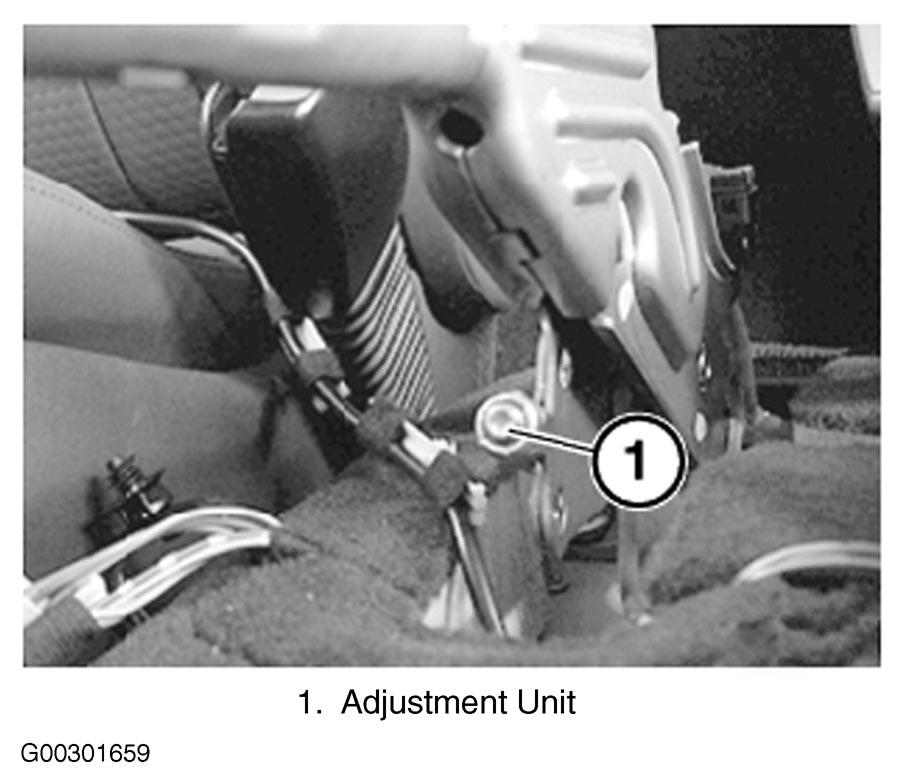

Remove rear center console. See CENTER CONSOLE (REAR) . Remove carrier for rear center console. Loosen adjustment unit for parking brake lever. See Figure. Detach both parking brake Bowden cables from balance arm. See Fig 1. Disconnect plug connection for hand brake check switch. Remove screws and remove fastener. Remove parking brake lever. See Fig 2.

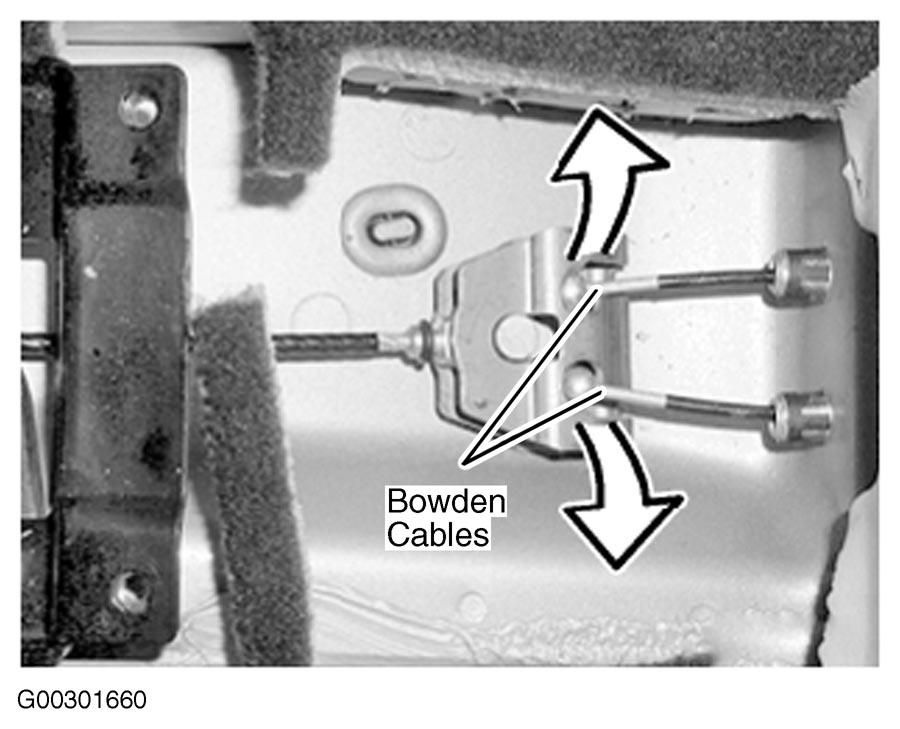

Fig 1: Identifying Bowden Cables

Courtesy of BMW OF NORTH AMERICA, INC.

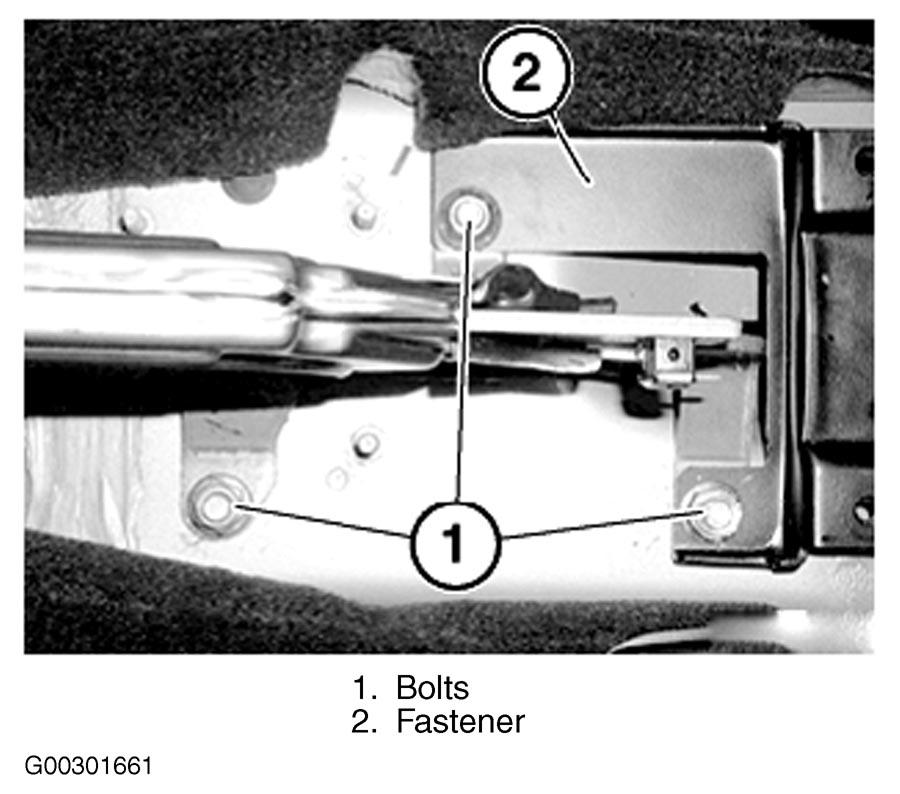

Fig 2: Removing Parking Brake Lever

Courtesy of BMW OF NORTH AMERICA, INC.
